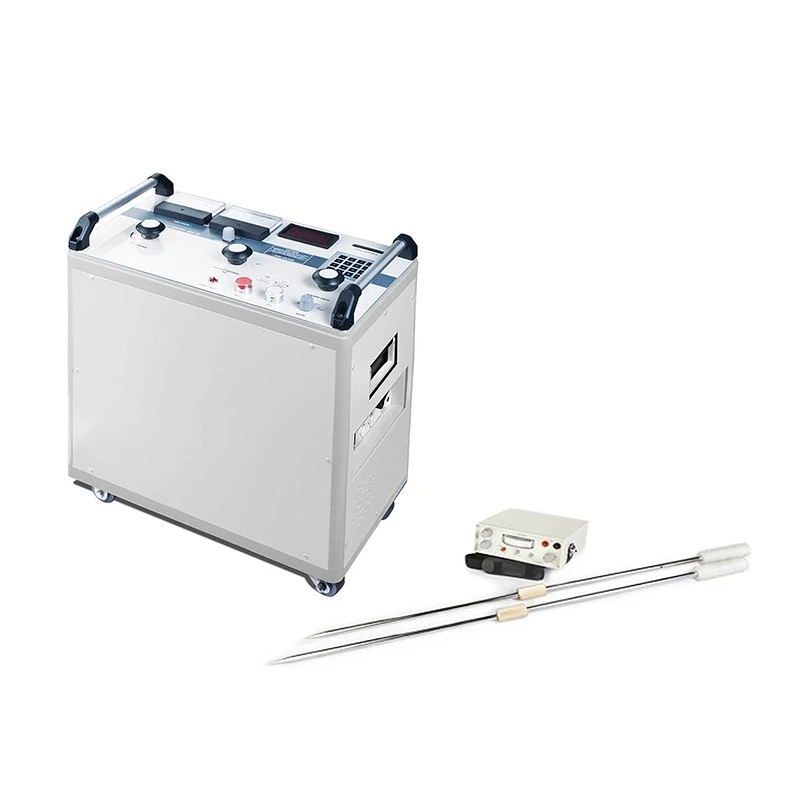

Motwane SFL 12 Sheath Fault Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC ±10% / 50 Hz / Single Phase |
| Dimensions | 555(L) x 355(W) x 620 (H) mm + Handle 50mm + Wheel 65mm |
| Storage Temperature | -5 Deg C ~ 60 Deg C |
| Working Temperature | 0 Deg C ~ 55 Deg C |
| Model | SFL 12 |
| Weight | 70 Kg Approx |
| Cooling System | Air Cooled |
| Standard Warranty | One Year |
| Safety Protection | Mains Input current MCB switch in Live & Fast blow fuse in input mains supply. Variac Zero inter-lock / Output cable Plug inter-lock / HV Switch inter-lock & Over Heat Protection |
| Test Current | 3 kV-400 mA / 6 kV-200 mA / 12 kV-100 mA DC |
| Earth Discharge | Soft automatic discharge through in-built solenoid |
| Associated Receiver | Sheath Fault Locator EFL 1 |
| Test Voltages | 0-3 / 0-6 80-12 kV DC continuously variable |
| Pulse ratio for Pin-pointing | 1 -3 second and 1 -6 second selectable ON OFF time ratio |
| Fault distance Calculator | LCD display-16x2 characters with back light |
| DPM Power Supply | 6V / 1.5Ah Rechargeable battery |
| HV Range Selection | Manual |
Key Features
- Test Voltages 0 - 3, 0 - 6 & 0 - 12 kV DC continuously variable.
- Test Current 3 kV - 400 mA, 6 kV - 200 mA, 12 kV - 100 mA DC.
- Pulse ratio for Pin-pointing 1:3 second and 1:6 second selectable, ON OFF time ratio.
- Fault distance Calculator LCD display-16x2 characters with back light.
- Cable sheath fault pin pointing by pool of potential method.
- Burn mode for conditioning the sheath fault.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Receiver - Sheath Fault Locator EFL 1.
Product Description
The Sheath Fault Tester SFL12 is designed to locate sheath/earth faults in underground cable networks, including low, medium, high voltage power cables, and unshielded multi-core control cables. It can detect manufacturing defects or damage-induced faults that cause leakage between the metallic armor or cores and the earth. The tester offers different modes like DC test/HV Test, burning, pre-location, and pin-pointing to address these faults. It is used for conditioning, DC testing, burning, pre-locating, and pinpointing sheath faults in underground extra high voltage power cable transmission networks.
Application
It is use to Conditioning / DC Test / Burn, Pre-locate and Pin-point sheath faults in underground extra high voltage power cable transmission networks.
Standard Accessories:
- HV Cable 6sq mm single core screen cable 5-meter length
- Mains supply cord 3-meter length
- Yellow/Green 10 sq mm earthing cable 5-meter length
- Sheath Fault Locator EFL 1 - 1No.
- Earth Spikes - 2Nos
Available on EnvMart, these Electrical Testers are designed for quick and accurate testing of electrical circuits, voltage levels, and continuity. Motwane Electrical Testers ensure reliability and precision, making them essential tools for electricians, maintenance professionals, and industrial applications.
Indication:ON/OFF lamp indication / Analog moving coil meter for output voltage (kV) indication / Analog moving coil meter for output current (mA) indication / Overheat LED indication / Fault pre-location distance on LCD display & Sheath voltage drop indication on DPM
