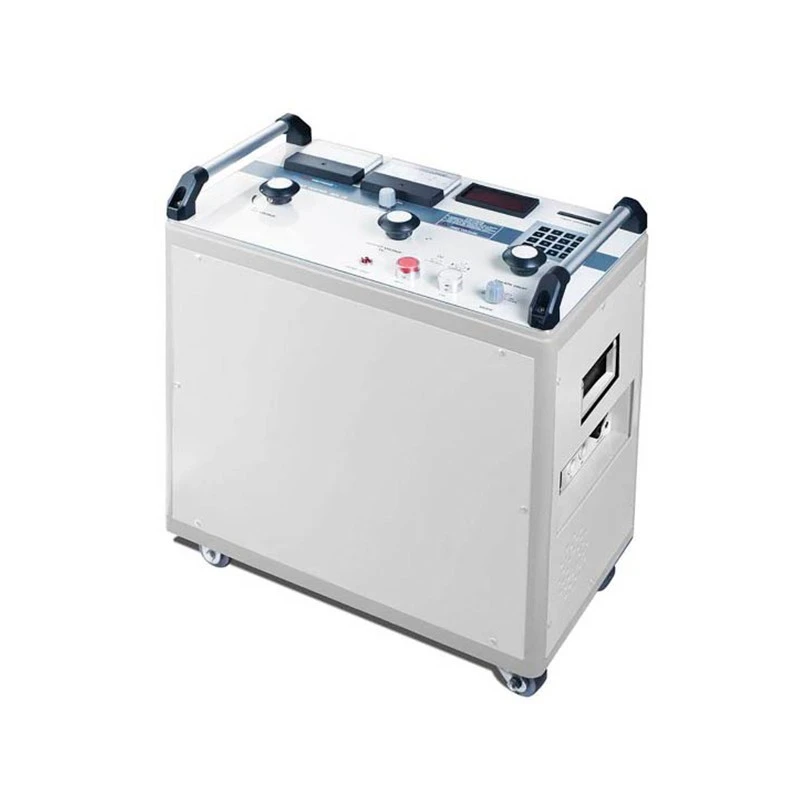

Motwane SFL 1 Sheath Fault Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC ±10% 50 Hz / Single phase |
| Dimensions | 485(L) x 304(W) x 415 (H) mm + Handle 50mm + Wheel 65mm |
| Storage Temperature | -5 Deg C ~ 60 Deg C |
| Working Temperature | 0 Deg C ~ 55 Deg C |
| Model | SFL 1 |
| Weight | 52 Kg Approx |
| Cooling System | Air Cooled |
| Standard Warranty | One Year |
| Safety Protection | Variac Zero inter-lock / Output cable Plug inter-lock / HV Switch inter-lock & Over Heat Protection |
| Test Current | 3kV-200 mA / 6 kV-100 mA |
| Earth Discharge | Soft automatic discharge through in-built contact |
| Associated Receiver | Sheath Fault Locator EFL 1 |
| Over Load Protection | Mains Input current MCB switch in Live & Fast blow fuse in input mains supply |
| Test Voltages | 0-380-6 kV DC continuously variable |
| Pulse ratio for Pin-pointing | 1 -3 second and 1 -6 second selectable ON OFF time ratio |
| Fault distance Calculator | LCD display-16x2 characters with back light |
| DPM Power Supply | 6V / 1.5Ah Rechargeable battery |
Key Features
- Test Voltages 0 – 3 & 0 - 6 kV DC continuously variable.
- Test Current 3 kV - 200 mA & 6 kV - 100 mA DC.
- Pulse ratio for Pin-pointing 1:3 second and 1:6 second selectable, ON OFF time ratio.
- Fault distance Calculator LCD display-16x2 characters with back light.
- Cable sheath fault pin pointing by pool of potential method.
- Burn mode for conditioning the sheath fault.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Receiver - Sheath Fault Locator EFL 1.
Product Description
The Sheath Fault Tester SFL1 is designed to locate sheath/earth faults in various underground cable networks, including low, medium, high voltage power cables, and unshielded multi-core control cables. It can detect manufacturing defects or damage-induced faults that cause leakage between the metallic armor or cores and the earth. The tester offers different modes like DC test/HV Test, burning, pre-location, and pin-pointing to address these faults. It is used for conditioning, DC testing, burning, pre-locating, and pinpointing sheath faults in underground extra high voltage power cable transmission networks.
Application
It is use to Conditioning / DC Test / Burn, Pre-locate and Pin-point sheath faults in underground extra high voltage power cable transmission networks.
Standard Accessories:
- HV Output 10 sq mm single core screen cable 5-meter length
- Mains supply cord 3-meter length
- Yellow/Green 10 sq mm earthing cable 5-meter length
- Dual single core cable for pre-location 5-meter length
- Two single core cable for pre-location 5-meter length
- External battery charger for DPM supply
Available on EnvMart, these Electrical Testers are designed for quick and accurate testing of electrical circuits, voltage levels, and continuity. Motwane Electrical Testers ensure reliability and precision, making them essential tools for electricians, maintenance professionals, and industrial applications.
Indication:ON/OFF lamp indication / Analog moving coil meter for output voltage (kV) indication / Analog moving coil meter for output current (mA) indication / Overheat LED indication / Fault pre-location distance on LCD display & Sheath voltage drop indication on DPM
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports test voltages of 0 to 3 kV and 0 to 6 kV DC, which are continuously variable.
The maximum test current is 200 mA at 3 kV and 100 mA at 6 kV DC.
The dimensions are 485 mm (L) x 304 mm (W) x 415 mm (H), plus an additional 50 mm for the handle and 65 mm for the wheels. It weighs approximately 52 kg.
It requires a power supply of 230V AC ±10%, 50 Hz, and is single phase.
It includes several safety protections such as a Variac zero inter-lock, output cable plug inter-lock, HV switch inter-lock, and overheat protection.
The fault distance calculator is displayed on a 16x2 character LCD screen with a backlight, providing clear visibility of the fault distance.
This model features an air-cooled system for effective temperature management during operation.
The working temperature range is from 0 °C to 55 °C, while the storage temperature range is from -5 °C to 60 °C.
The associated receiver is used in conjunction with the SFL 1 to enhance the detection and location of sheath faults in underground cables.
The standard warranty period for this model is one year.
