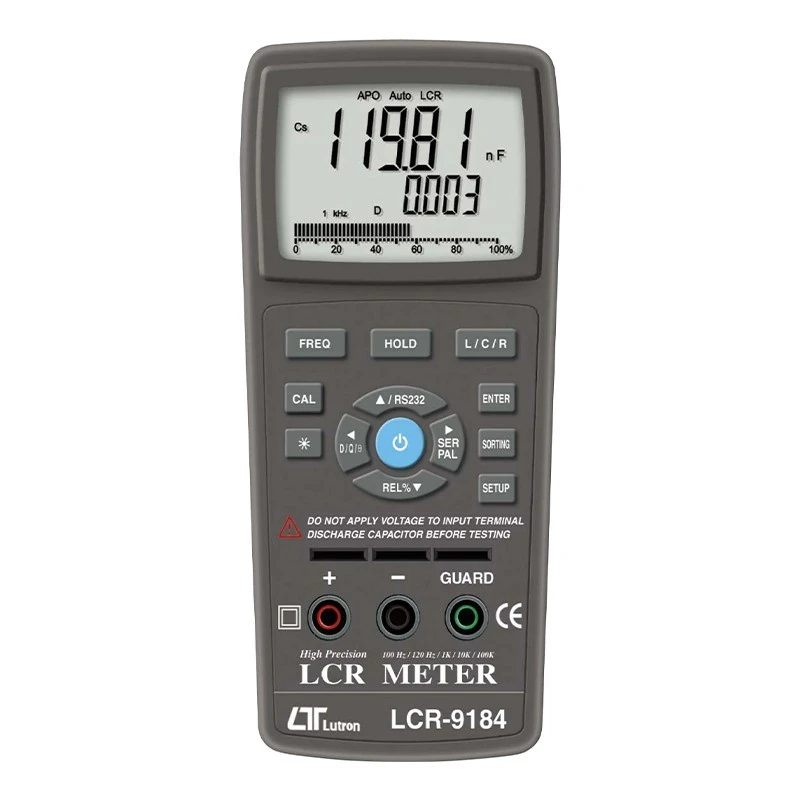

Lutron LCR-9184 LCR Meter
Specifications
| Capacitance Range | 2000.0 pF to 2.000 mF |
|---|---|
| Resistance Range | 20.000 Ω to 200.0 MΩ |
| Display | Dual LCD (19 /999/1 /999 counts) |
| Brand | LUTRON |
| Power Supply | 9V battery or DC 9V adapter |
| Type | LCR Meter |
| Interface | RS232/USB |
| Dimensions | 193 x 88 x 41 mm |
| Model | LCR-9184 |
| Weight | 420 g |
| Backlight | LCD with green light |
| Auto Power Off | Yes |
| Measurements | Ls / Lp / Cs / Cp / D / Q / θ / ESR / DCR |
| Test Frequencies | 100 Hz / 120 Hz / 1 KHz / 10 KHz / 100 KHz |
| AutoLCR | Yes |
| Serial/Parallel Modes | Selectable |
| DCR Mode | Yes |
| Test Signal Level | 0.6 mV rms (typical) |
| Inductance Range | 200.00 uH to 2000.0 H |
| Battery Detection | Multi-level |
Key Features
- Dual LCD display (19,999/1,999 counts).
- AutoLCR smart check and measurement.
- Serial/parallel modes.
- Measures Ls/Lp/Cs/Cp with D/Q/θ/ESR.
- DCR mode.
- Five test frequencies.
- RS232/USB interface
Product Description
The Lutron LCR-9184 is an LCR meter featuring a dual LCD display with 19,999/1,999 counts. It offers AutoLCR smart check and measurement, selectable serial/parallel modes, and measures Ls/Lp/Cs/Cp with D/Q/θ/ESR parameters. It supports DCR mode and five different test frequencies (100 Hz/120 Hz/1 KHz/10 KHz/100 KHz). The device has a test AC signal level of 0.6 mV rms, and wide test ranges for inductance, capacitance, and resistance. It includes features like multi-level battery detection, LCD backlight, RS232/USB interface, and auto power off.
Available on EnvMart, these LCR Meters are engineered to deliver precise measurements of inductance (L), capacitance (C), and resistance (R). Lutron LCR Meters are trusted for their accuracy, reliability, and ease of use, making them ideal for electronic testing, circuit design, and quality control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance range of this model is from 2000.0 pF to 2.000 mF.
The Lutron LCR-9184 supports five test frequencies: 100 Hz, 120 Hz, 1 KHz, 10 KHz, and 100 KHz.
The resistance range of this unit is from 20.000 Ω to 200.0 MΩ.
This model weighs 420 g.
The dimensions of this unit are 193 x 88 x 41 mm.
It can be powered by a 9V battery or a DC 9V adapter.
Yes, this model includes an auto power off feature.
It features a dual LCD display with counts of 19,999/1,999.
Yes, it has selectable serial and parallel modes for measurement.
The test signal level is typically 0.6 mV rms.
Yes, this model includes a USB interface for connectivity.
