RS PRO Switching Power Supply 12V DC 150W Chassis Mount with 12.5A Output 88% Efficiency 159x97x30mm 161-8297

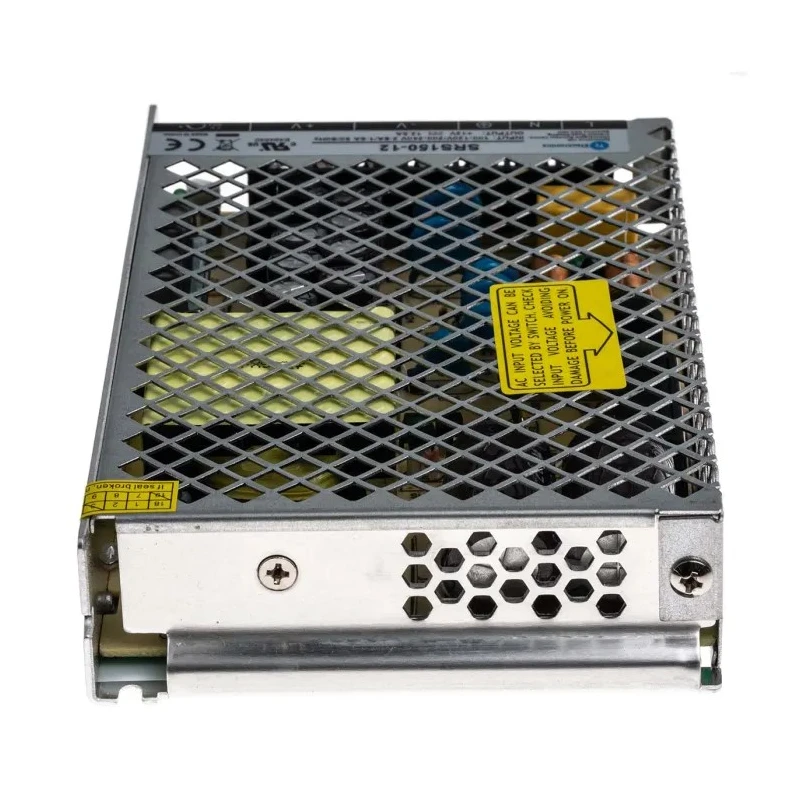

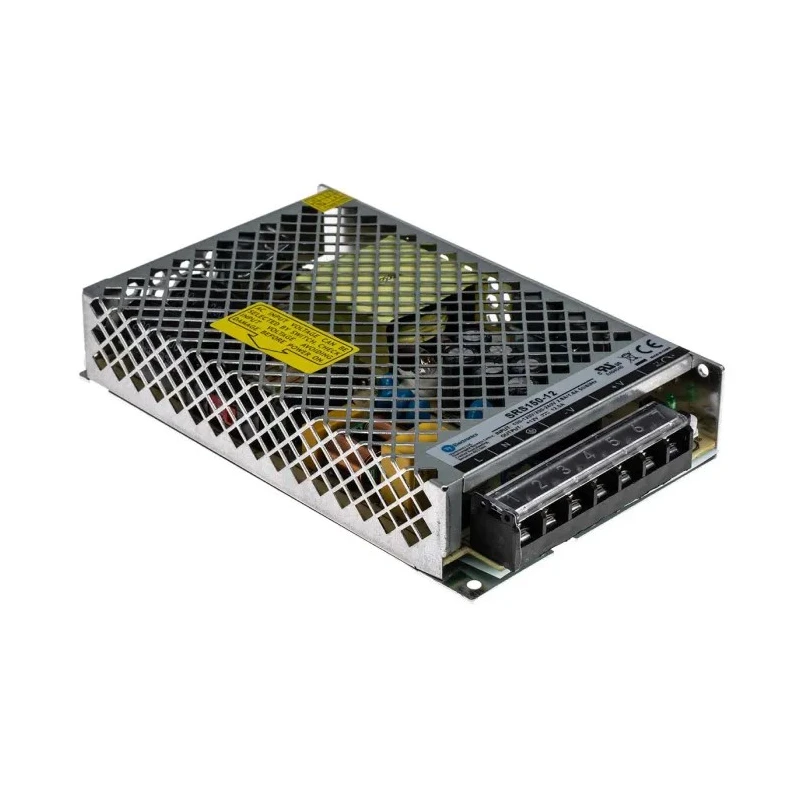

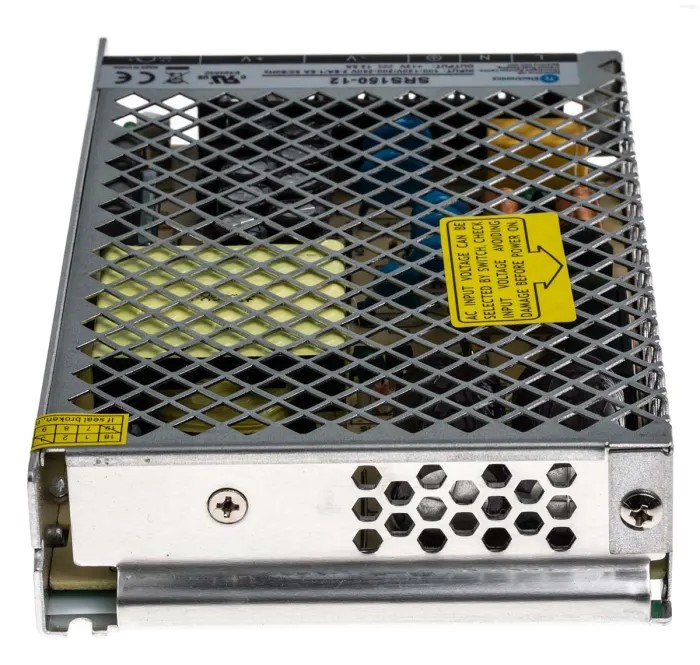

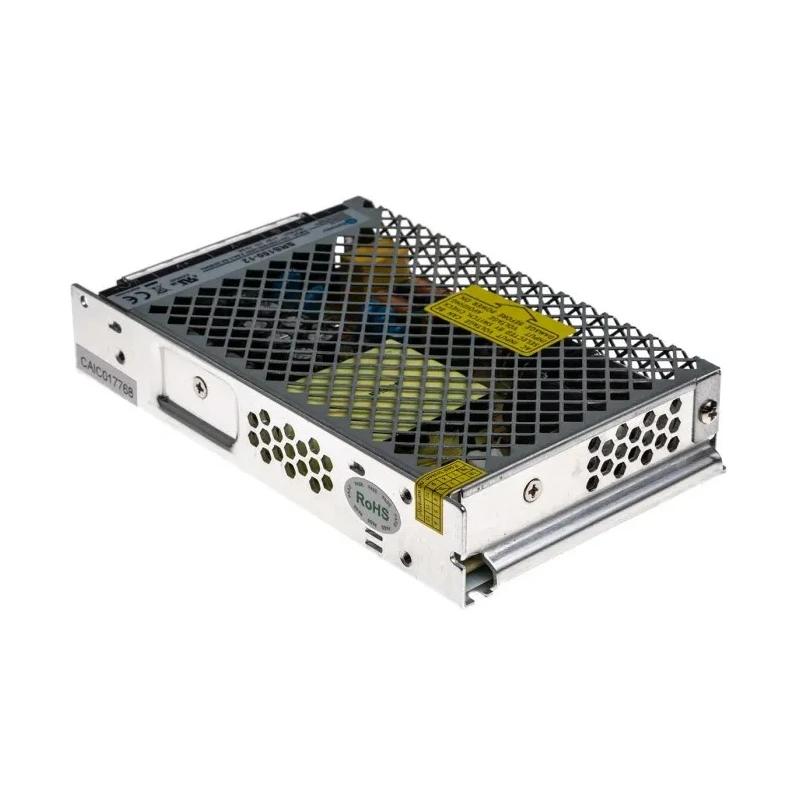

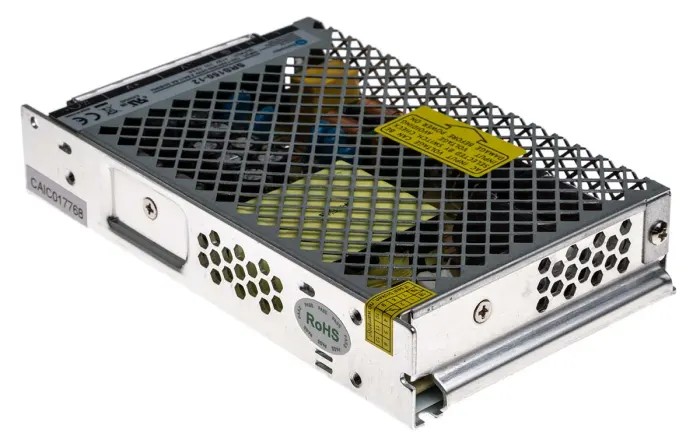

RS PRO 161-8297 Switching Power Supply is a high-quality embedded switch mode power supply (SMPS) rated at 150 W with a stable 12 V DC output voltage and 12.5 A output current. This chassis-mounted power supply measures 159 mm in length, 97 mm in width, and 30 mm in depth, housed in a vented, durable metal enclosure that facilitates efficient heat dissipation while maintaining a compact footprint.

The unit accepts a broad input voltage range from 85 to 132 V AC or 170 to 264 V AC, making it compatible with varying input mains voltages typical in industrial, laboratory, and commercial settings. It features an innovative switching regulator design that minimizes energy loss by continuously switching the current supply on and off. This design improves operational efficiency to around 88% and reduces overall power consumption.

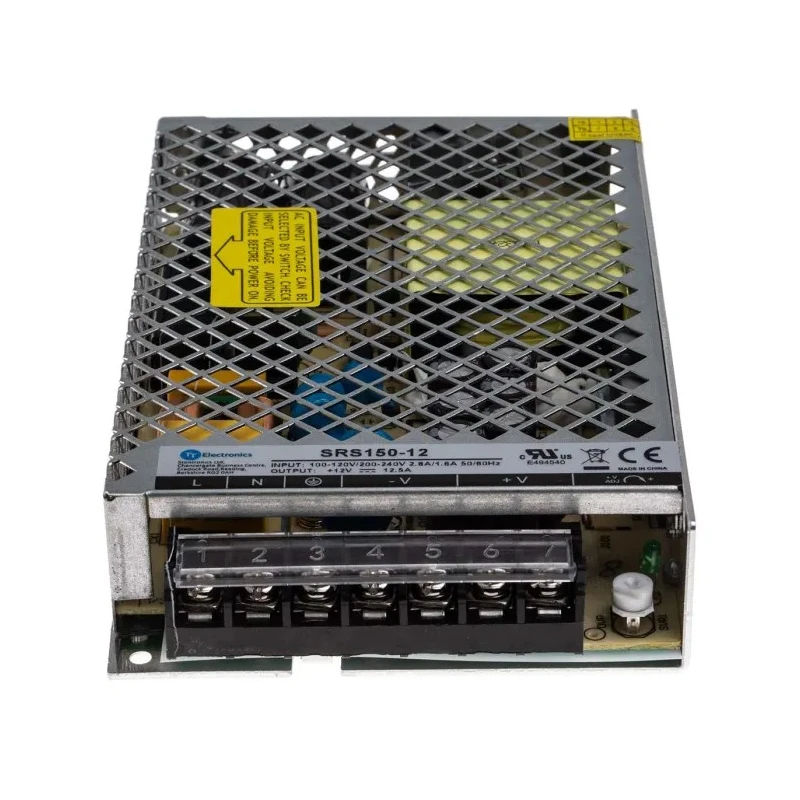

Engineered to perform reliably in demanding ambient conditions, this power supply operates effectively within the temperature range from -30°C to 70°C. Its lightweight design, with a gross weight of 480 grams, allows for straightforward installation using the provided chassis mount. The device comes with convenient screw terminal connectors on the sides to enable secure and simple wiring configurations.

The RS PRO 161-8297 model complies with RoHS standards, ensuring restricted use of hazardous substances, and is manufactured according to rigorous quality controls. It is suitable for powering a wide range of electronic equipment in industrial automation, testing, telecommunications, and general electrical applications requiring a dependable 12 V DC power source.

This switching power supply is a trusted component for engineers seeking efficient energy conversion and long product life. It is part of the RS PRO range known worldwide for durable electrical parts and components.

Compact chassis mount with dimensions 159 x 97 x 30 mm for easy installation. Wide input voltage range: 85 to 132 V AC or 170 to 264 V AC ensures versatile application. High-efficiency switching regulator minimizes energy wastage during operation.

Operates reliably between -30°C and 70°C ambient temperatures. Enclosed vented metal casing aids heat dissipation and durability. Single output supply delivering steady 12 V DC output voltage. Lightweight design at 480 grams enhances handling and mounting options.

Built to stringent RS PRO quality standards with RoHS compliance. Ideal for powering industrial electronic equipment requiring stable DC power. Equipped with easy-access screw terminals on the sides for secure wiring. Explore more power supplies and switching power solutions available in the RS PRO series at EnvMart for your industrial and commercial power conversion needs.
