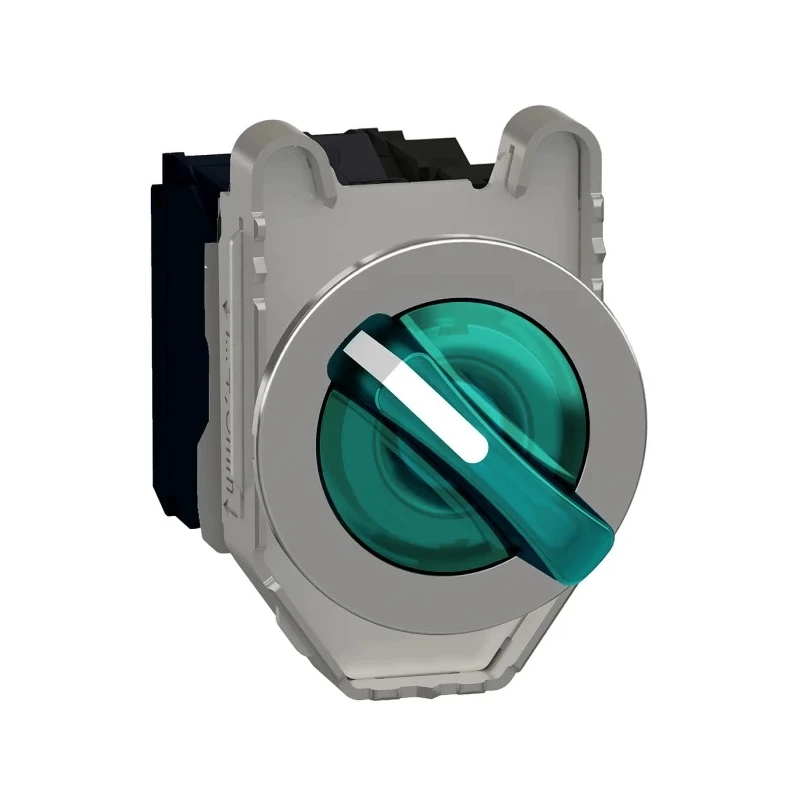

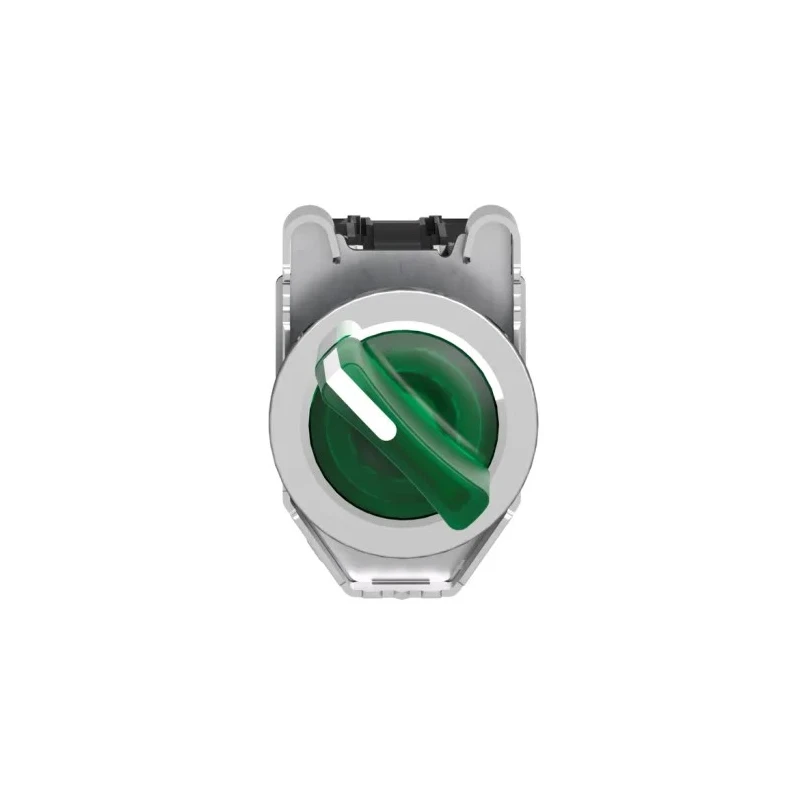

Schneider Electric Selector Switch Illuminated 2 Positions SPDT 30 mm Cutout Diameter Harmony XB4 XB4FK123M5

Schneider Electric XB4FK123M5 Selector Switch is a robust, flush mounted illuminated selector switch from the Harmony XB4 metallic range. It features a 30 mm cutout diameter and is designed for demanding industrial environments requiring reliable control solutions.

The switch operates with a rated supply voltage of 230 V to 240 V AC and uses a universal LED as the illumination source, contributing to energy efficiency and visibility.

Its green round handle provides two 90-degree stay put positions with SPDT (1NO + 1NC slow break) contact configuration, suitable for precise switching operations. The screw clamp terminal type supports easy and secure wiring.

The bezel is chromium plated and the fixing collar constructed from zamak enhances durability. Weighing 151 grams with compact dimensions of 53 mm height and 36.6 mm width, it offers simple panel integration with a cross head screwdriver.

This selector switch assures excellent protection with IP66, IP67, IP69, and IP69K ingress protection ratings and IK06 impact resistance, making it ideal for industrial, food and beverage, automotive, mining, water treatment, building, and infrastructure applications.

Certified by multiple international standards such as EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals, the product meets rigorous quality and safety requirements.

Additional features include high vibration resistance with shake-proof terminal screws, modular design flexibility, and compatibility with several connection types including screw clamp, connector, Faston connector, spring terminal, and printed circuit board connections.

Schneider Electric provides a range of accessories like flush mounted metal circular blanking plugs, metal rings, spacers, protective washers, and mounting kits available separately to optimize installation and customization.

The switch has a 30 mm cutout diameter and is part of the Harmony XB4 series. It features a green standard round handle with a 90-degree stay put angle of throw. The contact type is 1NO and 1NC slow break with screw clamp terminals.

The bezel is chromium plated and the fixing collar made of zamak for robustness. It offers high protection with IP66, IP67, IP69, and IP69K ratings and IK06 impact resistance. The operating temperature range is from -40°C to 70°C suitable for harsh environments.

The switch includes universal LED illumination and is compatible with various connection types. Certified to multiple standards including EN/IEC, CE, UL, CSA, CCC, EAC, JIS, and marine approvals. The compact flush mount design facilitates ergonomic and aesthetic panel installation.

High vibration resistance and anti-vibration contacts ensure secure mounting and reliability.
