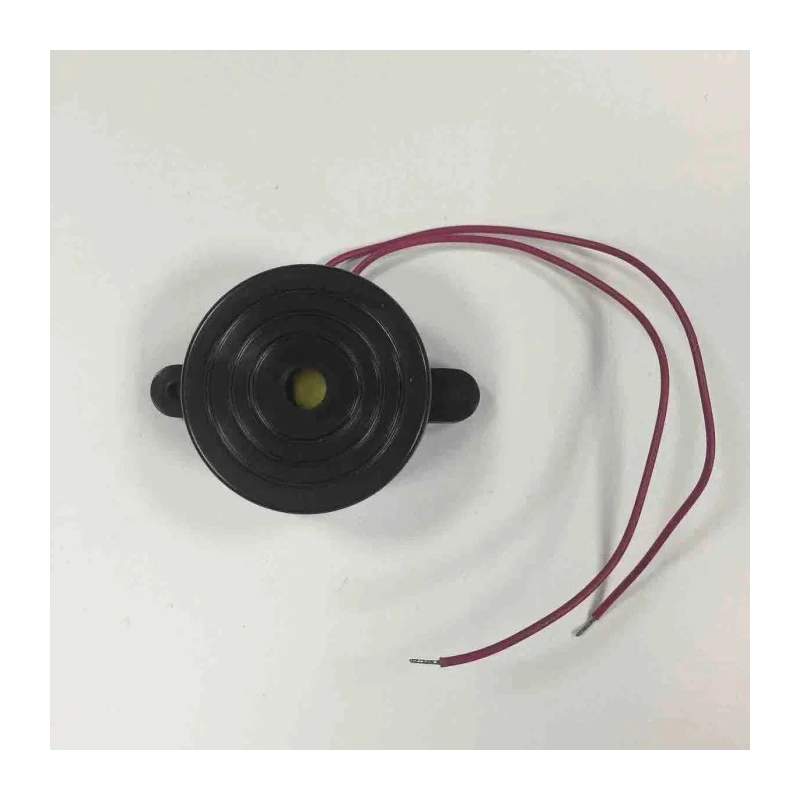

RS PRO 92 dB Flange Continuous Internal 22 mm Piezo Buzzer Component 60 V ac/dc Min 250V ac/dc Max 181-2735

The RS PRO 181-2735 Piezo Buzzer Component is a high-quality audio indicator designed for industrial and electronic applications. It is flange mounted with an internal drive and provides a sound level output of 92 dB. The component produces a continuous tone with frequencies ranging between 2.5 kHz and 3.5 kHz. This makes it suitable for audible alerts in control panels, security systems, instrumentation, and other electronic devices.

This piezo buzzer operates within a wide voltage range from 60 V ac/dc minimum to 250 V ac/dc maximum, making it versatile for various power supply conditions. It features wire terminal terminations facilitating reliable electrical connections and installation convenience. The component's dimensional profile includes a diameter of 41.8 mm and a height of 22 mm, allowing compact integration into equipment while maintaining optimal sound output.

The buzzer is engineered to operate reliably within an extended temperature range of -30°C to 85°C, ideal for harsh industrial environments. Its casing is constructed from ABS UL-94 1/16" HB HIGH HEAT (BLACK) rated material which ensures robust heat resistance and durability. Compliance with RoHS directives attests to its environmentally friendly manufacturing standards.

Ideal for industrial, HVAC, manufacturing, and electronic control systems, this piezo buzzer provides dependable and clear audible warning signals. Whether for machinery alarms, factory automation alerts, or security notifications, the RS PRO 181-2735 delivers consistent performance with energy-efficient operation.

The buzzer features an internal drive type ensuring reliable operation. Mounting is fixed via flange style providing ease of installation. The component operates within a temperature range of -30°C to 85°C. Termination is through wire terminals ensuring stable connections.

It produces a continuous tone with frequency range from 2.5 kHz to 3.5 kHz. Compact dimensions of diameter 41.8 mm and height 22 mm ensure easy integration. Supply current consumption is low at 13 mA for efficient use. Constructed from durable ABS UL-94 high heat material.

Complies with RoHS environmental standards. Explore the complete RS PRO Piezo Buzzer range and related electronic components at EnvMart for industrial-grade quality and reliability.
