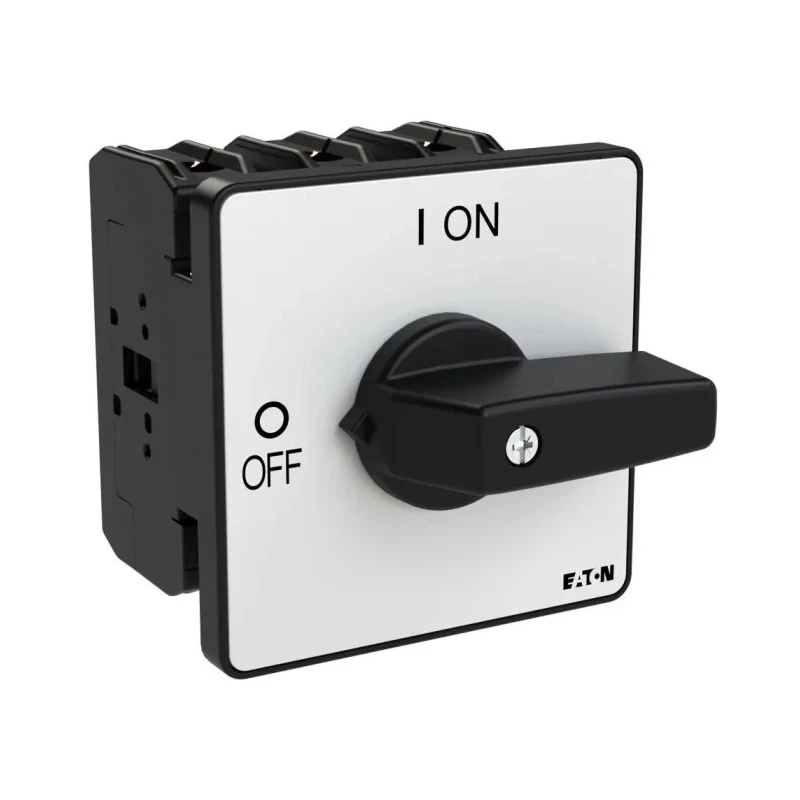

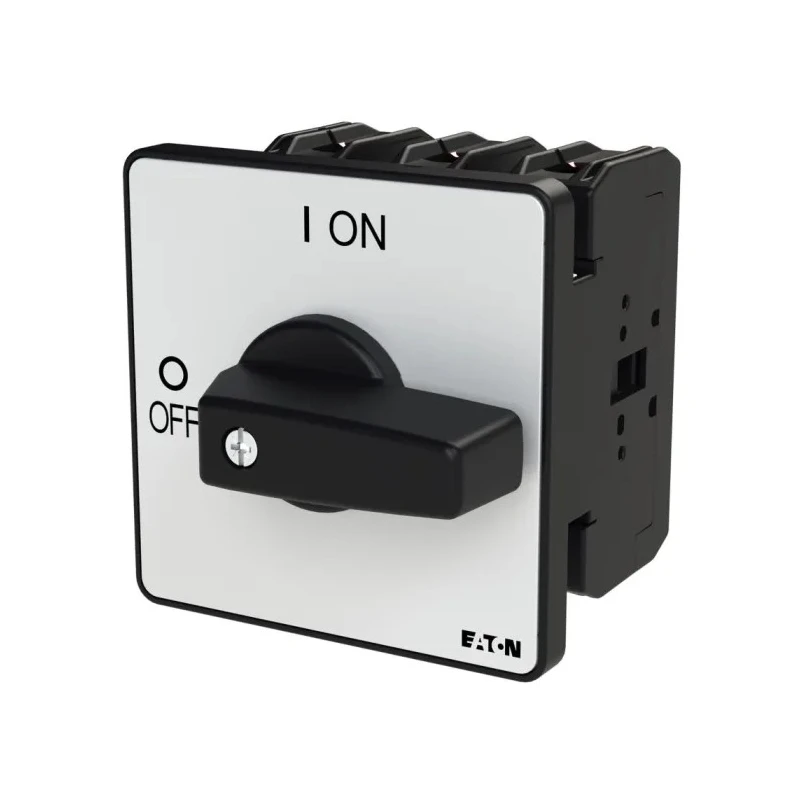

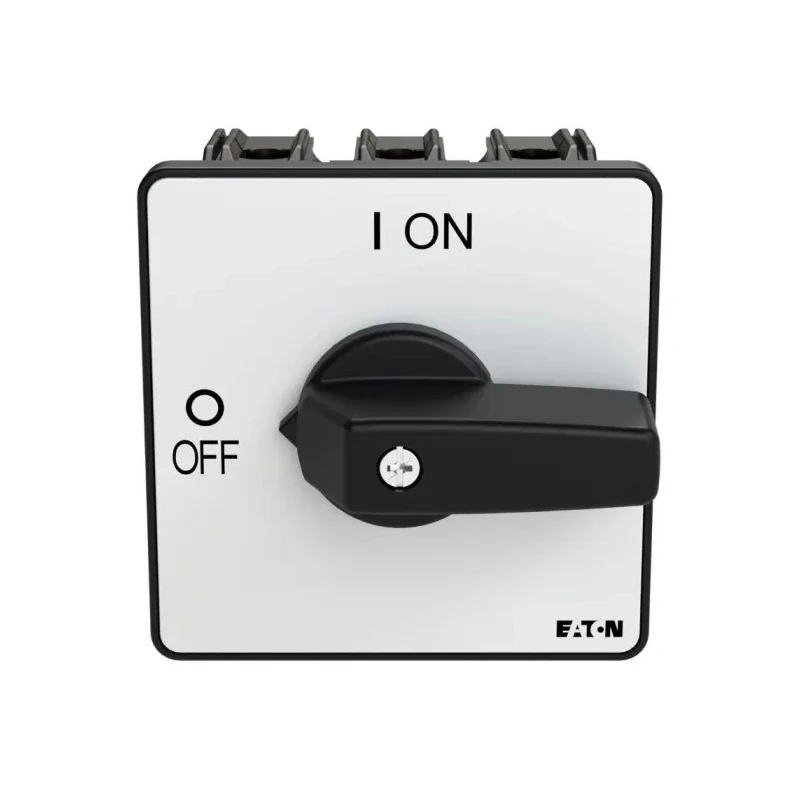

Eaton 3-Pole Flush Isolator Switch IP65, 100A, 55 kW, Screw Terminal, ATEX Certified

Free Delivery in India | Lowest Global Shipping Charges

Eaton 3-Pole Flush Isolator Switch IP65, 100A, 55 kW, Screw Terminal, ATEX Certified

Name: Eaton 3-Pole Flush Isolator Switch IP65, 100A, 55 kW, Screw Terminal, ATEX Certified
Brand: Eaton
SKU: 420581
Price: 15321.01 INR
Availability: InStock



Category Isolator Switch Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Length	87mm
Model	IP65
Depth	87mm
IP Rating	IP65
Width	101mm
Mount Type	Flush
Series	P3
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Switching Current	100A
Terminal type	Screw
Handle Colour	Black
Hazardous Area Certification	ATEX
Number of Poles	3
Standards/Approvals	RoHS
Switching DC Voltage	24V
Switching AC Voltage	690V ac
Switching Power	55kW

Key Features

This isolator switch supports a 3-pole configuration for simultaneous disconnection of multiple circuits.
Flush mount design facilitates easy integration into tight spaces and electrical panels.
Rated for 100A switching current with screw terminal wiring for secure connections.
IP65 rated front enclosure ensures resistance against dust and water ingress for outdoor use.
Switch is suitable for both single-phase and three-phase systems up to 690V AC.
High operating temperature range from -25°C to +50°C extends application versatility.
Compliant with RoHS standards and certified with ATEX for hazardous area installations.
Auxiliary contacts available to support additional control functions.

Product Description

Eaton 067201 P3-100/E 3-Pole Flush Isolator Switch is engineered for reliable electrical disconnection in industrial and commercial applications. This device features a 3-pole design allowing simultaneous isolation of multiple circuits, enhancing operational safety.

The flush mount form factor ensures minimal panel protrusion and easy installation in confined spaces. With a robust IP65 front rating, the isolator offers excellent protection against dust ingress and water jets, making it well-suited for both indoor and outdoor installations.

Capable of handling switching currents up to 100A and supporting voltages up to 690V AC, the switch is versatile for single-phase and three-phase electrical systems. The screw terminal connections provide secure wiring arrangements, simplifying electrician workflows.

The operating temperature spectrum from -25°C to 50°C allows deployment in varied ambient conditions. Auxilliary contact availability enables integration with control and signaling systems.

Certified for compliance with RoHS environmental directives and ATEX standards, this isolator switch is appropriate for use in hazardous areas with explosion risks, ensuring enhanced safety and regulatory adherence.

3-pole design for multi-circuit isolation. Flush mount type eases panel integration. Rated 100A current with screw terminal connection. High ingress protection with IP65 front rating. Supports up to 690V AC operation. Wide operating temperature range (-25°C to 50°C).

RoHS compliance and ATEX hazardous area certification. Auxiliary contacts available for extended functionality. Compact dimensions suitable for tight installations (87x101x87 mm). Ideal for industrial machinery, automation, and electrical power distribution safety.

This Eaton isolator switch is a critical safety component, designed for dependable isolation in demanding industrial, manufacturing, and commercial electrical systems. It supports safe maintenance and enhances operator protection by effectively disconnecting power circuits.
