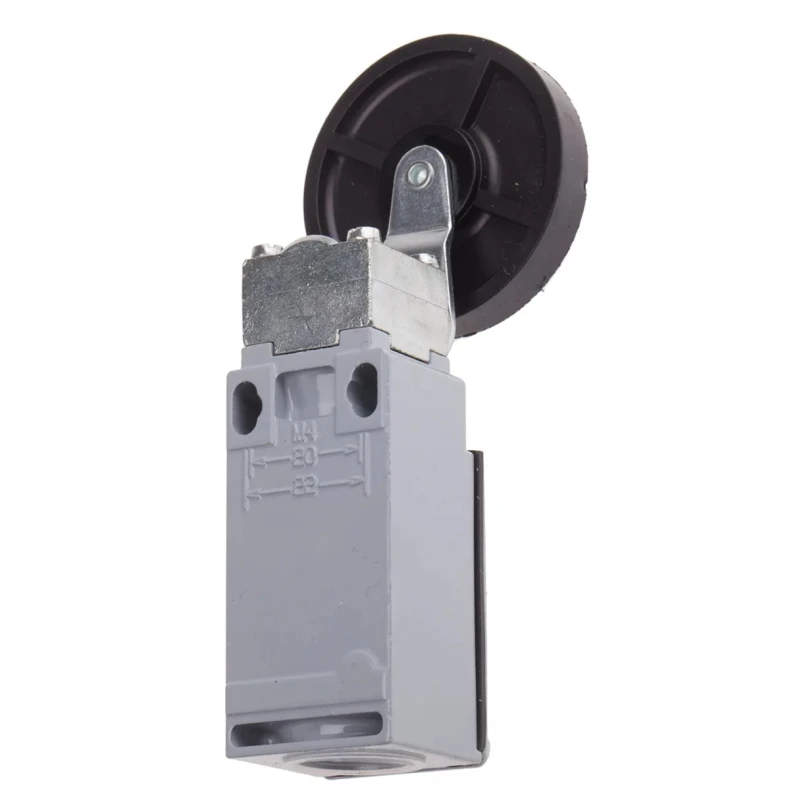

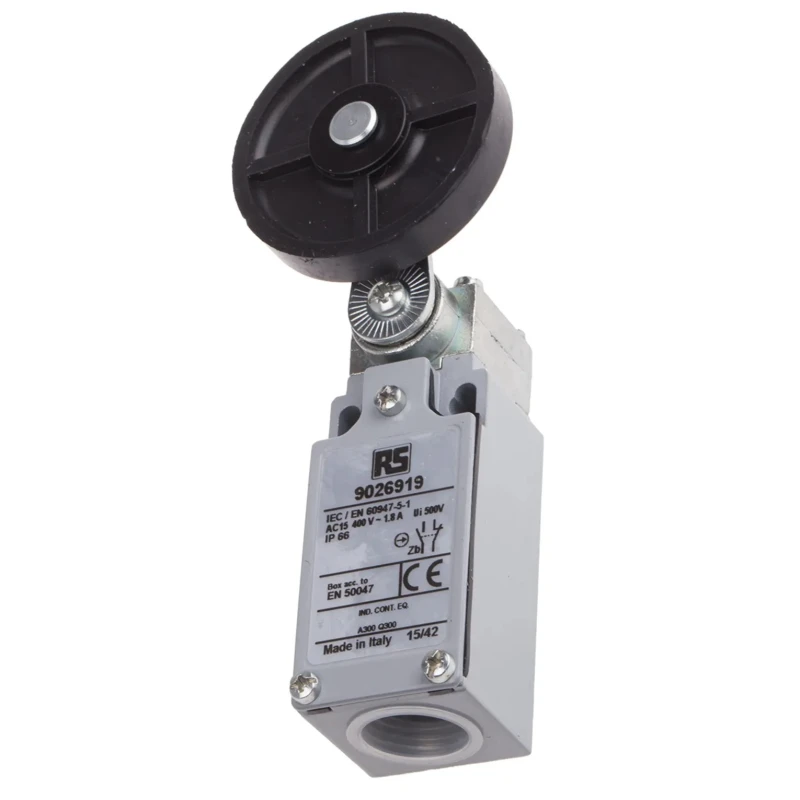

RS PRO Roller Lever Limit Switch 1 NO 1 NC Zinc Alloy Housing IP66 400V AC 10A IP66

RS PRO IP66 Roller Lever Limit Switch 1 NO 1 NC Zinc Alloy Housing is a robust, industrial-grade device designed to detect the position or limit of travel of mechanical components in automation, manufacturing, and control systems. The switch features a sturdy roller lever actuator that operates by pressing a metal plunger to toggle circuit states between normally open (NO) and normally closed (NC) contacts.

The zinc alloy housing provides excellent durability and resistance to corrosion, making it suitable for harsh industrial environments. Its IP66 rating guarantees complete protection against dust ingress and strong water jets, assuring reliable functionality in challenging conditions.

This limit switch supports switching AC voltages up to 400 V and currents up to 10 A, along with DC switching capability up to 250 V. The snap action contact design allows for quick and reliable response with a very low operating force of 0.1 N, reducing wear and tear during use.

It operates efficiently within temperatures from -25°C to 70°C and offers a mechanical life expectancy of 15 million operations, ensuring long-lasting performance. Installation is straightforward with cable type terminals and a M20 x 1.5 conduit entry for secure wiring. It is designed for vertical mounting orientation with a 1 NO and 1 NC contact configuration suitable for diverse control schemes.

The RS PRO Roller Lever Limit Switch complies with multiple international standards including CSA, EN, IEC, IMQ, RoHS, and UL, verifying its quality and safety for industrial applications. Typical uses include automation machinery, conveyor systems, safety interlocks, and position sensing in manufacturing plants.

The roller lever actuator provides precise limit switching for mechanical travel detection. Robust zinc alloy housing offers excellent corrosion resistance and durability. Rated IP66 for complete dust-tight protection and high-pressure water jet resistance.

Suitable for AC voltages up to 400 V and carrying current up to 10 A. Snap action contact type ensures reliable switching with minimal operating force of 0.1 N. Wide operating temperature range from -25°C to 70°C for varied industrial environments.

Cable type terminal with M20 x 1.5 conduit entry for secure electrical connections. Mechanical life rated at 15 million operations for long-term use. Vertical mounting orientation with 1 normally open and 1 normally closed contact configuration.

Certified compliant with CSA, EN, IEC, IMQ, RoHS, and UL standards for quality assurance. Browse more high-quality Limit Switches and control devices in the Electronics & Electricals category at EnvMart.
