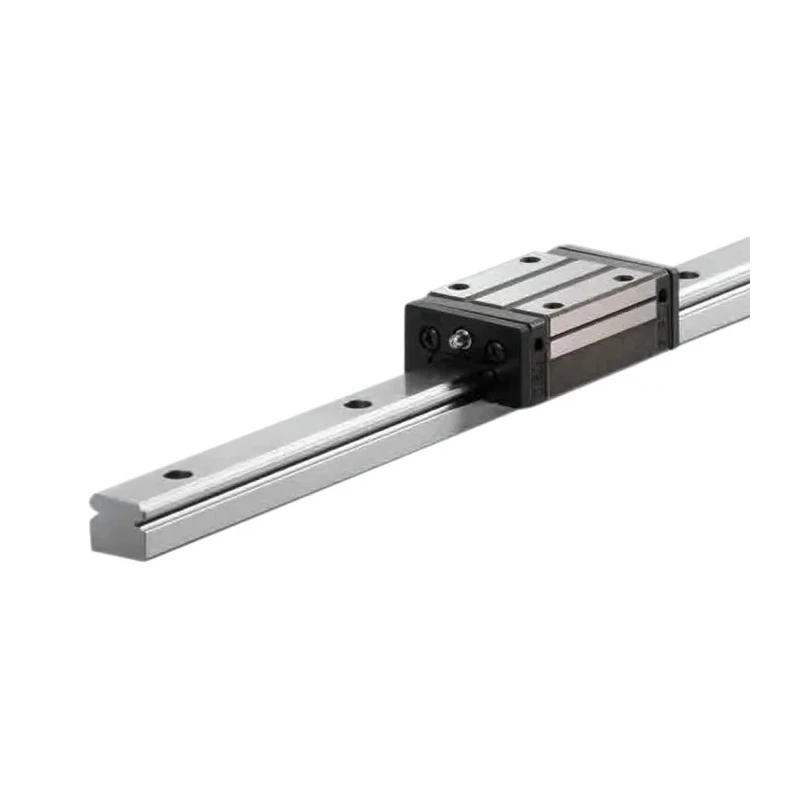

NSK Linear Guide Block NS Series Compact Guide Block , 40.4mm Length, 34mm Width, 5750 N Dynamic Load NAS15CLCE01KCZ

NSK NAS15CLCE01KCZ linear guide block belongs to NSK's NS series of compact linear guides designed to meet high-demand industrial linear motion requirements. Featuring a carriage length of 40.4 mm and width of 34 mm, this guide block supports a dynamic load rating of 5750 N and static load rating of 9100 N.

The NS series represents an advancement over previous LS and LH series by offering 1.3 times higher dynamic load rating and a redesigned groove that enhances bearing life by doubling the contact area between ball and rail slides, thus dispersing loads and lowering surface pressure.

Silent running is improved with a redesigned ball recirculation path that reduces noise levels by up to 3 dB, boosting suitability for high-speed applications. NSK’s unique K1 lubrication system integrates 70% mineral oil and 30% polyolefin resin to provide long life and maintenance-free operation for up to 40,000 km, supporting vertical or horizontal orientation and protecting against grease washout or oil contamination.

This guide block is widely applicable in precision machinery such as machine tools, robotics, semiconductor fabrication lines, automotive manufacturing, CT scanners, and automation systems. It adheres to ISO14728-1 and ISO14728-2 standards, underscoring its quality and reliability.

Constructed for enhanced durability with new groove design that doubles life expectancy. Compatible installation dimensions with earlier LH and LS series for easy replacement. Improved ball recirculation path reduces noise by up to 3dB for smoother operation.

Incorporates NSK's K1 lubrication system enabling up to 40,000 km maintenance-free service. Ideal for use in machine tools, robotics, semiconductor production, and automotive lines. Certified to ISO14728-1 and ISO14728-2 standards for quality assurance.

Carriage length measures 40.4 mm and width 34 mm ensuring precise fitment. Static load rating of 9100 N for reliable performance under heavy loads.

This NSK linear guide block is a critical component in advanced industrial and manufacturing processes, delivering precision motion control and durability. For more options and related NSK products, explore the Industrial Tools & Equipment category at EnvMart.
