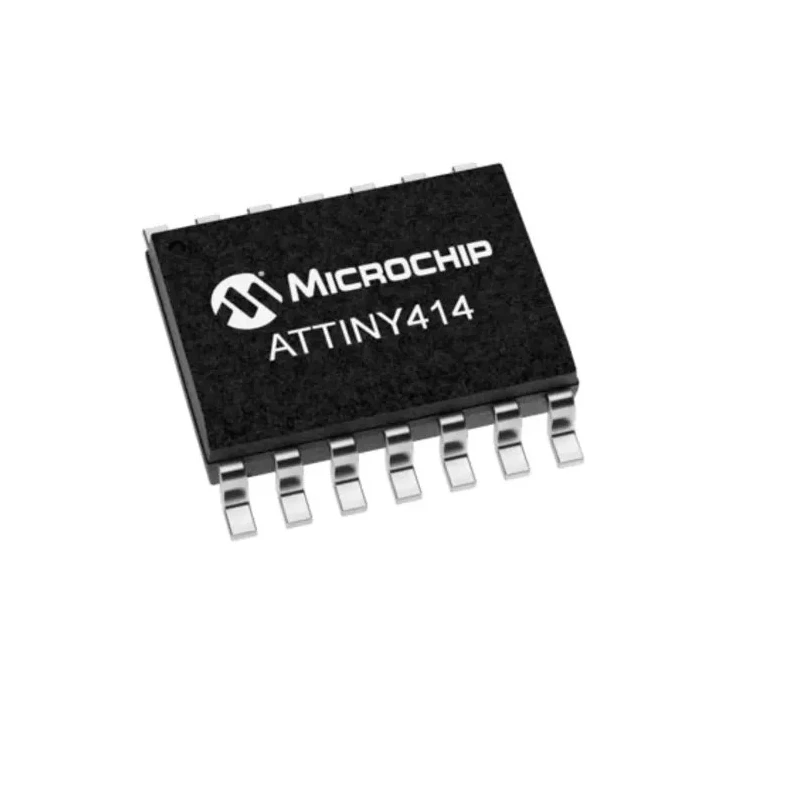

Microchip 8 bit AVR ATTINY414 Microcontroller 20 MHz, 4kB FLASH, 14-Pin SOIC ATTINY414-SSN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.74mm |
| Model | ATTINY414-SSN |
| Width | 3.99mm |
| Mount Type | Surface |
| Series | ATTINY414 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 4kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
| Operation Voltage | 1.8V - 5.5V |
Key Features
- Features an 8-bit AVR RISC CPU with 135 instructions for efficient processing.
- Offers ultra-low power consumption with multiple sleep modes including Idle, Standby, and Power Down.
- Includes 256 bytes SRAM, 128 bytes EEPROM, and 4kB flash memory for versatile data handling.
- Equipped with 12 programmable I/Os and 3 timers for varied application needs.
- Integrates analog and digital peripherals including a 12-channel 10-bit ADC and an 8-bit DAC.
- Operates over a voltage range of 1.8V to 5.5V suitable for flexible power environments.
- Supports single-pin programming and debugging interface (UPDI).
- Package dimensions are 8.74mm length, 3.99mm width, and 1.5mm height in a surface mount SOIC style.
Product Description
Microchip ATTINY414-SSN is an advanced 8-bit AVR microcontroller designed for industrial and embedded applications requiring efficient control and processing. Operating at up to 20 MHz clock speed, it incorporates a high-performance RISC CPU architecture with 135 instructions, optimized for low power consumption and high efficiency.
The microcontroller features 4kB of Flash program memory, 256 bytes of SRAM, and 128 bytes of EEPROM, providing versatility for program storage, fast data manipulation, and non-volatile memory needs. The device integrates multiple peripherals including three timers (one 12-bit and two 16-bit timers), a 12-channel 10-bit ADC, an 8-bit DAC, and analog comparators, facilitating complex analog and digital interface control.
Its flexible low-power architecture offers three sleep modes: Idle, Standby, and Power Down, making it well-suited for battery-operated and energy-sensitive applications. The single pin UPDI interface simplifies programming and debugging tasks.
The 14-pin SOIC package supports surface mounting and has compact dimensions (8.74 mm length, 3.99 mm width, 1.5 mm height). The microcontroller operates within a wide supply voltage range of 1.8V to 5.5V and temperature range from -40°C to 105°C, ensuring robustness under harsh environmental conditions such as industrial control, HVAC, and automotive electronics.
8-bit high-performance AVR RISC CPU with 135 instructions. 4 KB Flash memory, 256 B SRAM, 128 B EEPROM for versatile memory needs. Three sleep modes for ultra-low power operation. Multiple analog and digital peripherals integrated.
Single pin UPDI programming and debugging interface. Compact 14-pin SOIC surface mount package. Wide operating voltage from 1.8V to 5.5V suitable for various power setups. Wide operating temperature range from -40°C to 105°C.
RoHS compliant for environmental safety.
This microcontroller is ideal for applications in industrial automation, consumer electronics, embedded systems, automotive electronics, and other domains requiring compact, energy-efficient microcontrollers with robust analog features.
Explore a wide selection of Microcontrollers at EnvMart to meet your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates over a voltage range of 1.8V to 5.5V, making it suitable for various power setups.
This microcontroller features 4kB of Flash program memory.
The package dimensions are 8.74 mm in length, 3.99 mm in width, and 1.5 mm in height.
It includes 12 programmable I/Os for various application needs.
This model integrates three timers: one 12-bit timer and two 16-bit timers.
It supports a 12-channel 10-bit ADC for analog input processing.
The operating temperature range is from -40°C to 105°C.
Yes, it includes one analog comparator for enhanced functionality.
It utilizes a single-pin UPDI interface for programming and debugging.
Yes, it is RoHS compliant, ensuring environmental safety.
This microcontroller is based on an 8-bit AVR RISC CPU architecture with 135 instructions.
