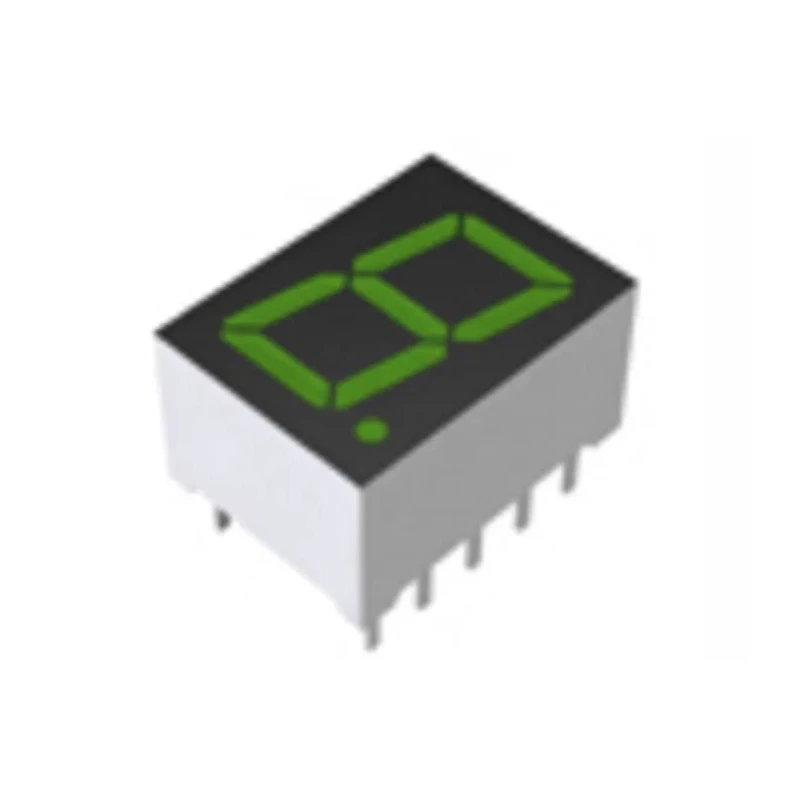

ROHM High Brightness 1 Character 7-Segment LED Display Cathode Common, 10.2 mm Character Height LAP-401MN

Free Delivery in India | Lowest Global Shipping Charges

ROHM High Brightness 1 Character 7-Segment LED Display Cathode Common, 10.2 mm Character Height LAP-401MN

Name: ROHM High Brightness 1 Character 7-Segment LED Display Cathode Common, 10.2 mm Character Height LAP-401MN
Brand: ROHM
SKU: 419691
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand ROHM Condition New

Specifications

Country of Origin	India
Display Type	LED
Brand	ROHM
Model	LAP-401MN
Mount Type	Through Hole
Series	LAP-401N
Character height	10.2mm
Maximum Operating Temperature	75°C
Minimum Operating Temperature	-25°C
Number Of Segments	7
External Width	9.6mm
External Depth	13mm
External Height	7mm
Power Dissipation	448mW
Luminous Intensity	100mcd
Standards/Approvals	RoHS
Dominant Wavelength	572nm
Colour of Face	Black
Forward Voltage	2.6V
Forward Current	20mA
Number of Characters	1
Character Width	5.6mm
Common Connection	Cathode
Decimal Orientation	Right Side

Key Features

The display uses 4-element AlGaInP dies for enhanced luminous intensity up to 100 mcd.
It features a black face with right side decimal orientation for clear numeric representation.
The device supports through-hole mounting and operates between -25°C to 75°C.
Forward voltage is rated at 2.6 V with a power dissipation of 448 mW for efficient operation.
Simplified cathode common type with 7 segments facilitates easy integration in electronic circuits.
The LAP-401MN series is RoHS compliant, ensuring environmental safety and regulatory compliance.
Common cathode configuration simplifies compatibility with a wide range of electronic driver circuits.
Its compact size and bright display make it ideal for industrial automation and instrumentation.

Product Description

ROHM LAP-401MN is a precision 7-segment LED display module designed for clear and high brightness indication of numeric characters in various industrial and electronic applications. Featuring a single character with 7 segments and cathode common connection, this module exhibits a character height of 10.2 mm and a character width of 5.6 mm, making it suitable for compact display panels.

Engineered with 4-element AlGaInP dies, the LAP-401MN enhances luminous intensity approximately 2 to 10 times that of conventional numerical LED displays, delivering a brightness of 100 mcd under normal operation. The display face is black-colored, improving contrast and readability.

The module is designed for through-hole mounting, with external dimensions of 9.6 mm width, 7 mm height, and 13 mm depth. It operates reliably within a temperature range of -25°C to 75°C, meeting typical environmental requirements for industrial, laboratory, and commercial equipment.

The forward voltage is rated at 2.6 V and forward current at 20 mA, with a power dissipation of 448 mW, ensuring low power consumption and efficient performance. The decimal point is oriented on the right side, facilitating easy compositional numeric displays.

The LAP-401MN series is RoHS compliant, ensuring environmental safety and regulatory compliance. Common cathode configuration simplifies compatibility with a wide range of electronic driver circuits. Its compact size and bright display make it ideal for use in industrial automation, instrumentation, electronic meters, and information display units.

Robust build quality and tested specifications guarantee dependable operation in various industrial environments. The product supports a wide range of applications including instrumentation panels, control units, and measurement displays in engineering and manufacturing.
