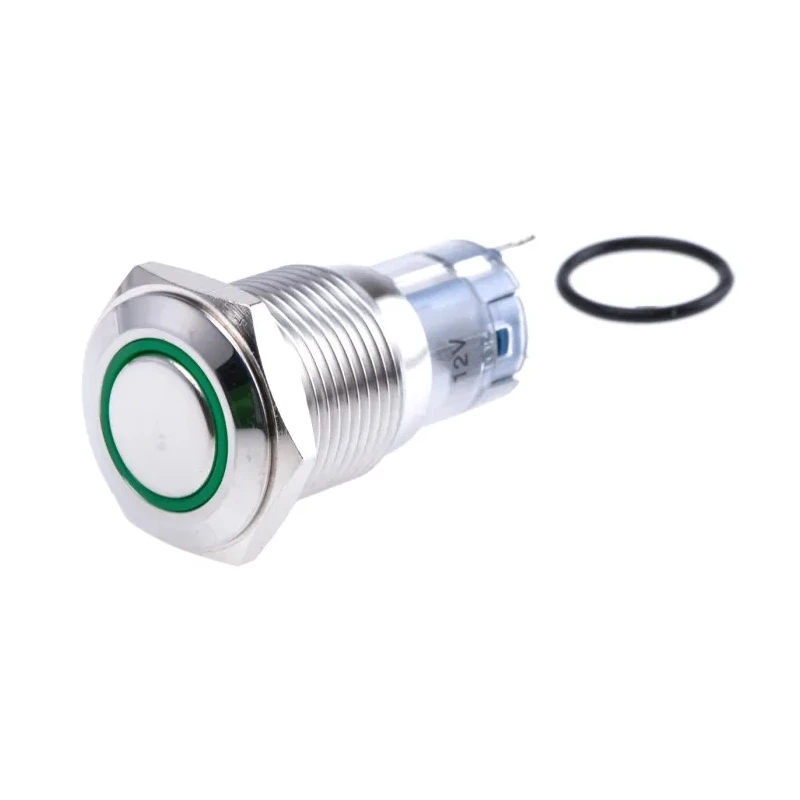

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16 mm Cutout, SPDT, Green LED, IP65, IP67, 250 V AC 811-8449

RS PRO 811-8449 Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting with a 16 mm diameter cutout. It features a Single Pole Double Throw (SPDT) configuration with a green LED indicator for improved operational visibility and status indication.

This switch operates momentarily, remaining active only when pressed, making it ideal for use in control panels, door buzzers in residential settings, and medical equipment such as hand or foot controls on hospital beds. The actuator is silver and flat styled providing a robust and ergonomic interface.

Constructed with silver-plated copper alloy contacts, the switch ensures excellent conductivity and wear resistance, thereby extending its lifespan. It supports an AC voltage rating of 250 V and a contact current rating of 3 A, suitable for a wide range of industrial and commercial electrical applications.

The switch is built into an anti-vandal stainless steel housing that protects against physical impacts, making it suitable for public and outdoor applications. Its ingress protection ratings of IP65 and IP67 guarantee resistance to dust and water spray, ensuring reliable operation in harsh and challenging environments.

Designed for installation via panel mounting with solder terminals, this product meets RoHS standards and functions reliably in temperatures as low as -20°C. Originating from Taiwan, Province Of China, it is a new product optimized for demanding control and automation uses.

Features a green LED indicator for clear status visibility. Momentary switch operation ensures active only when pressed. Silver actuator with flat style for ergonomic function. Constructed for panel mounting with solder terminal types.

Rated for 250 V AC and 3 A current capacity ensuring durable performance. High ingress protection with IP65 and IP67 ratings for harsh environments. Silver-plated copper alloy contacts to guarantee conductivity and durability.

Built with an anti-vandal stainless steel housing suitable for outdoor and public use. Operating temperature down to -20°C making it apt for demanding industrial applications.

Explore the RS PRO range of Push Button Switches at EnvMart for reliable electrical and control components that meet industrial, commercial, and specialized application requirements.
