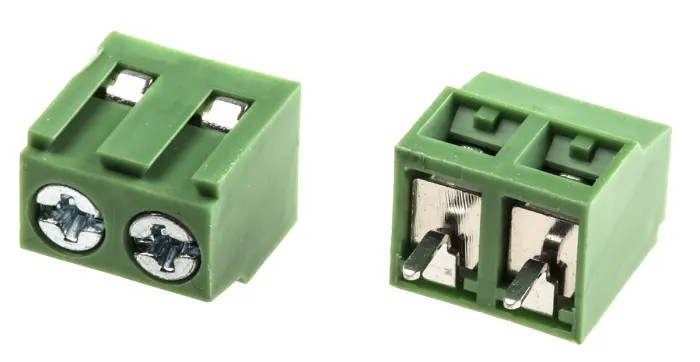

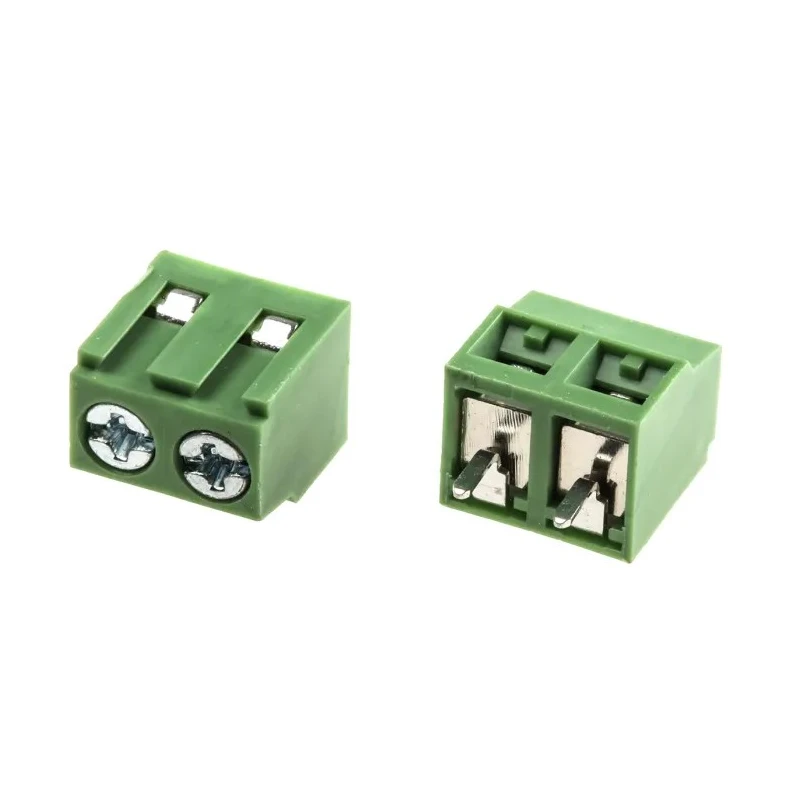

RS PRO PCB Terminal Block 2-Contact, 5 mm Pitch, 1 Row, 300V, 16A 790-1159

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Terminal Block 2-Contact, 5 mm Pitch, 1 Row, 300V, 16A 790-1159

Name: RS PRO PCB Terminal Block 2-Contact, 5 mm Pitch, 1 Row, 300V, 16A 790-1159
Brand: RS PRO
SKU: 417654
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	300V
Brand	RS PRO
Colour	Green
Orientation	Straight
Current	16A
Length	10mm
Model	790-1159
Depth	10mm
Width	8.1mm
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	5mm
Number of Contacts	2
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	26AWG
Wire Connection Method	Screw
RS PRO PCB Terminal Block, 2-Contact, 5 mm Pitch, 1 RowBrand	RS PRO

Key Features

The terminal block supports a maximum current of 16A, suitable for a wide range of electronic circuits.
Constructed with durable green polyamide housing, ensuring high insulation and stability.
Designed for wire sizes ranging from 14 AWG minimum to 26 AWG maximum.
Wire connection is achieved via screw method with straight orientation for ease of wiring.
The compact size measures 10 mm length, 10 mm depth, and 8.1 mm width, enabling efficient PCB layout.
This series uses rectangular tin-plated PC tails suitable for reliable solder connections.
Manufactured in Taiwan, Province Of China, maintaining consistent quality standards.

Product Description

RS PRO 790-1159 PCB Terminal Block is a high-quality 2-contact terminal block with a 5 mm pitch and a single row configuration, designed for robust PCB mounting and wiring applications.

It supports a rated current of 16A and a voltage capacity of 300V, suitable for various industrial electronics, control circuits, automation systems, and power connectors.

The terminal block's housing is made of green polyamide, offering excellent mechanical strength and electrical insulation. It accepts wire sizes from 14 AWG up to 26 AWG, secured with screw-type wire connections and straight orientation for convenient installation.

This product features precise 10 mm length, 10 mm depth, and 8.1 mm width dimensions, facilitating compact layouts on printed circuit boards. The rectangular tin-plated PC tails (0.9x0.5 mm by 3.5 mm) ensure optimal soldering reliability and electrical contact quality.

Manufactured with adherence to professional standards, this RS PRO terminal block does not carry specific certifications but offers dependable performance for electronic assemblies requiring secure connections.

Typical applications include industrial automation, manufacturing electronics, HVAC control panels, and laboratory equipment where reliable PCB terminal connection is critical. The terminal block supports a maximum current of 16A, suitable for a wide range of electronic circuits.

Constructed with durable green polyamide housing, ensuring high insulation and stability. Designed for wire sizes ranging from 14 AWG minimum to 26 AWG maximum. Wire connection is achieved via screw method with straight orientation for ease of wiring.

Rated voltage is 300V, making it ideal for various industrial and commercial electronic applications. The compact size measures 10 mm length, 10 mm depth, and 8.1 mm width, enabling efficient PCB layout. This series uses rectangular tin-plated PC tails suitable for reliable solder connections.

Manufactured in Taiwan, Province Of China, maintaining consistent quality standards. Explore further RS PRO terminal blocks and electronic components on EnvMart for robust industrial and commercial applications.
