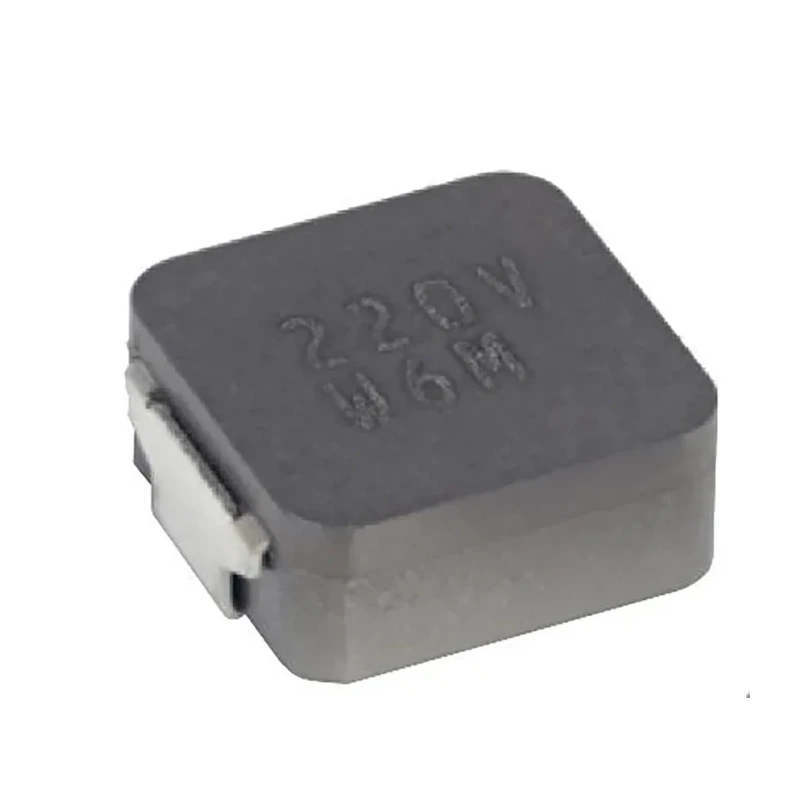

KEMET Shielded Surface Mount Inductor with Metal Composite Core 22μH ±20% 4.2A Idc MPLCV0654L220
Specifications
| Country of Origin | China |
|---|---|
| Brand | KEMET |
| Height | 5.4mm |
| Length | 7.9mm |
| Model | MPLCV0654L220 |
| Depth | 6.7mm |
| Series | MPLCV |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | AEC-Q200 qualified |
| Package/Case | 0654 |
| Maximum DC Current | 4.2A |
| Maximum DC Resistance | 94mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite powder core providing high efficiency and high switching frequency capability.
- Designed for automotive ECU, LED headlight circuits, meter cluster panels, and electric pump applications.
- Rated for an operating temperature range from -55°C to +155°C, ensuring reliability in harsh environments.
- Low DC resistance of 94mΩ reduces power loss and improves performance.
- Shielded construction minimizes magnetic flux leakage and acoustic noise.
- Compact 0654 package with dimensions 7.9mm length, 6.7mm depth, and 5.4mm height.
- Termination style is surface mount suitable for modern PCB assembly processes.
- Qualified to AEC-Q200 automotive standards for quality and reliability.
Product Description
The KEMET MPLCV0654L220 is a shielded surface mount inductor featuring a metal composite core designed for use in DC-DC switching power supplies, especially within automotive applications. This component offers an inductance of 22μH with a tolerance of ±20% and supports a maximum DC current of 4.2A. Its metal composite powder core allows for high switching frequencies while maintaining high efficiency.
With a rugged design supporting an operating temperature range from -55°C to 155°C, this inductor ensures reliable performance in automotive ECU modules, LED headlight systems, meter cluster panels, head-up displays, and electric pump systems including electric water pumps (EWP) as well as electric oil pumps (EOP). The low DC resistance of 94mΩ minimizes energy losses and aids in maintaining system efficiency.
The 0654 package dimensions (7.9mm length, 6.7mm depth, and 5.4mm height) provide a compact footprint suitable for dense PCB layouts. The shielded construction effectively reduces magnetic flux leakage and acoustic noise, improving overall electromagnetic compatibility (EMC) in electronic designs.
Manufactured to meet the automotive industry standard AEC-Q200, this inductor offers quality and reliability assurance for demanding environments. The surface mount termination style facilitates automated assembly processes and integration into modern electronic components.
Metal composite powder core optimized for automotive power inductors. High current capacity with low DC resistance for efficient power management. Wide temperature rating supports automotive engine control unit and lighting applications.
Compact 0654 package adapts to space-constrained PCB designs. Shielded construction reduces electromagnetic interference and noise. Compliance with AEC-Q200 ensures automotive-grade quality and reliability. Designed for automotive ECUs, LED headlights, meter clusters, HUDs, and electric pumps.
Surface mount termination suitable for automated PCB manufacturing. This product is made in China and is ideal for demanding automotive and industrial electronic applications where performance and reliability are critical.
Explore the Electronics & Electricals category at EnvMart for more Surface Mount Inductors and automotive electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current rating for this model is 4.2A.
The dimensions of this inductor are 7.9mm in length, 6.7mm in depth, and 5.4mm in height.
It operates within a temperature range of -55°C to 155°C.
This inductor features a metal composite core, which provides high efficiency and high switching frequency capability.
Yes, it is qualified to AEC-Q200 automotive standards, ensuring quality and reliability for automotive applications.
The termination style is surface mount, suitable for modern PCB assembly processes.
The DC resistance of this inductor is 94mΩ, which helps reduce power loss.
It is designed for automotive ECU modules, LED headlight circuits, meter cluster panels, and electric pump applications.
The shielded construction minimizes magnetic flux leakage and acoustic noise, improving electromagnetic compatibility.
It comes in a compact 0654 package, making it suitable for space-constrained PCB designs.
This product is manufactured in China.
