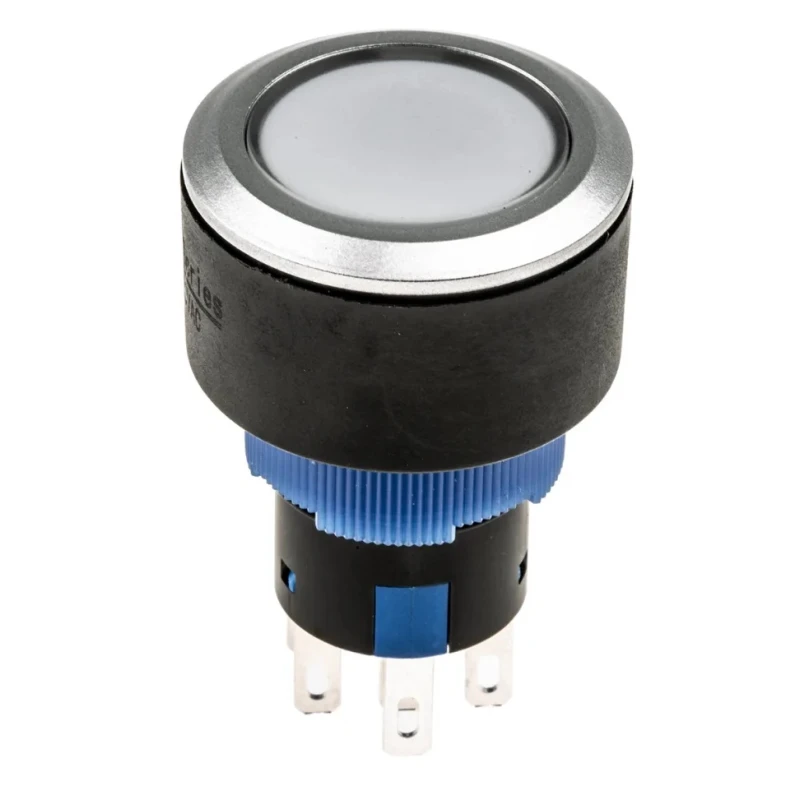

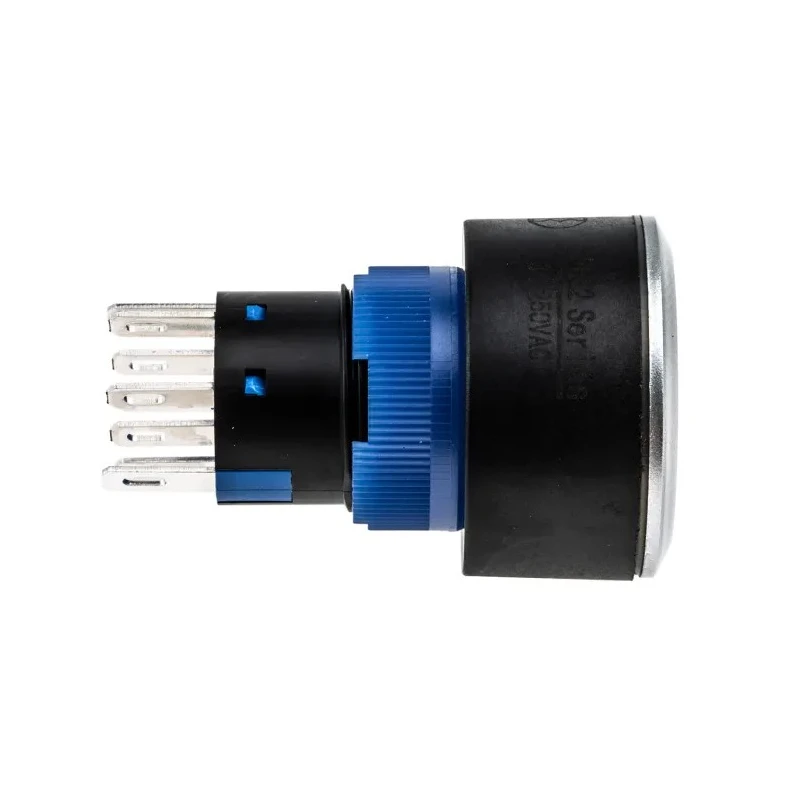

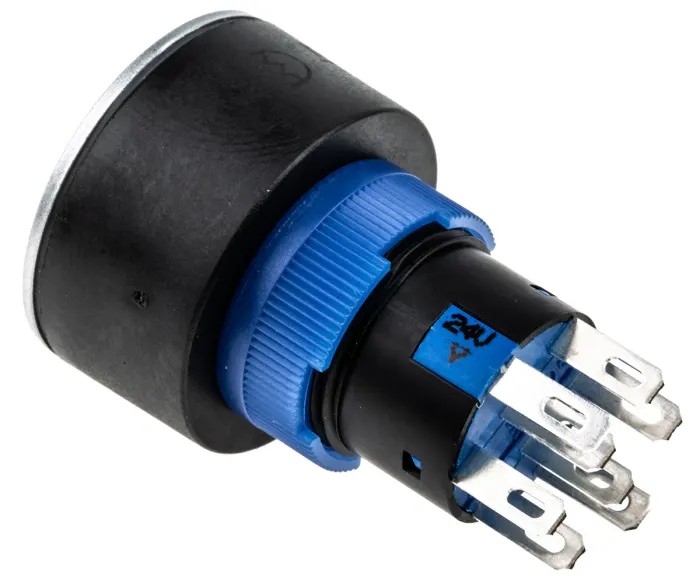

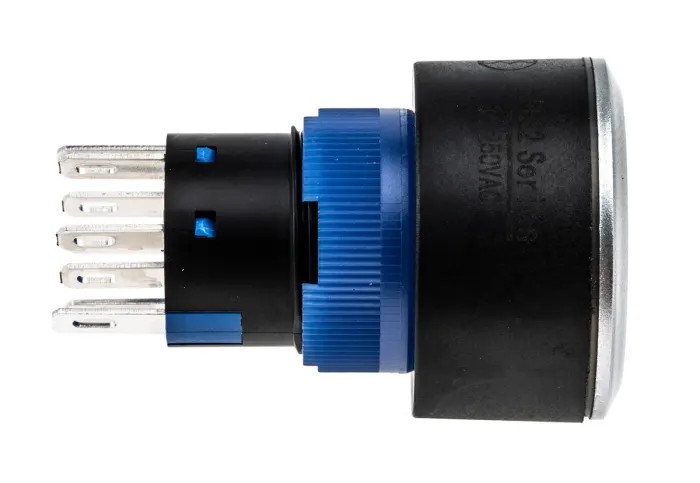

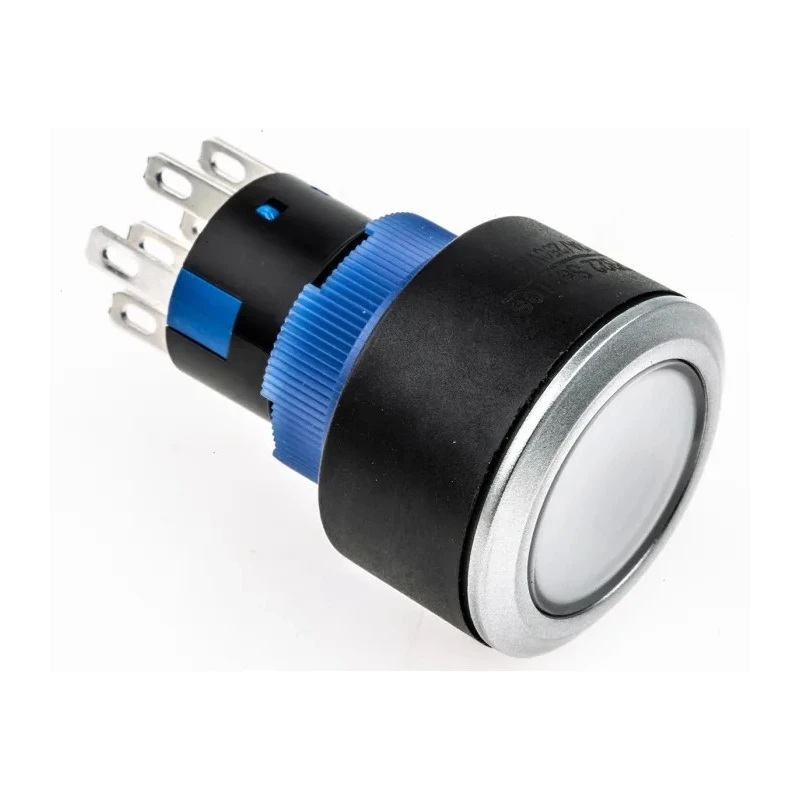

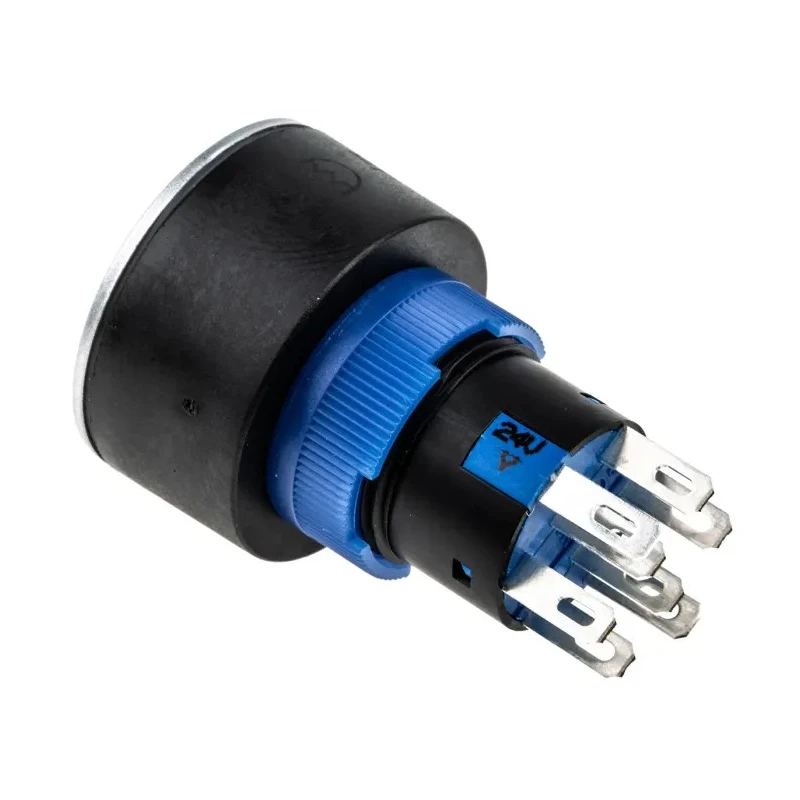

RS PRO Illuminated Push Button Switch Momentary Panel Mount DPDT Yellow LED IP65 22.2 mm Cutout 250V 175-8325

Name: RS PRO Illuminated Push Button Switch Momentary Panel Mount DPDT Yellow LED IP65 22.2 mm Cutout 250V 175-8325
Brand: RS PRO
SKU: 415580
Price: 1269.51 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	175-8325
IP Rating	IP65
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-35°C
Panel Cutout Size	22.2 mm
Terminal type	Solder
Standards/Approvals	UL 94 V-0, UL 94 V-2
LED Colour	Yellow
Switch Operation	Momentary
Contact DC Voltage	250V
Actuator Style	Flat
Switch Contact Current	3, 5A
Contact AC Voltage	250V ac

Key Features

The switch features a 22.2 mm panel cutout for easy installation.
It includes a durable flat actuator style with a lightweight plastic cover and silver metal cap.
Rated IP65 for water and dust resistance, suitable for harsh environments.
Supports contact AC and DC voltage up to 250 V with a contact current rating between 3 A and 5 A.
Operates reliably within a temperature range of -35°C to 70°C.
Equipped with a yellow LED for visual status indication.
Terminals are solder type ensuring secure electrical connections.
Meets UL 94 V-0 and UL 94 V-2 standards for flame retardance.

Product Description

RS PRO 175-8325 illuminated push button switch is a momentary action switch designed for panel mounting with a 22.2 mm cutout. It features a double-pole double-throw (DPDT) contact configuration and a bright yellow LED for illumination, making it ideal for clear visual feedback in control panels and automation equipment.

The switch casing combines a lightweight plastic cover with a carved decorative pattern on a silver metal cap housing the LED, offering both functional and aesthetic benefits. Its robust IP65 rating ensures protection against dust ingress and water jets, making it suitable for industrial environments, communication devices, wireless equipment, electronic measuring instruments, and office automation applications.

This product supports contact voltages up to 250 V AC and DC and has a contact current rating of 3 to 5 amps, ensuring reliable switching performance under moderate electrical loads. Its flat actuator style facilitates easy actuation and is mounted securely using solder terminals for dependable electrical connection.

Designed to operate safely within a wide temperature range of -35°C to 70°C, the RS PRO switch meets UL 94 V-0 and UL 94 V-2 flame retardant standards, enhancing safety in electronic circuits.

The switch comes with DPDT contact configuration for versatile switching functions. Illuminated by a yellow LED, suitable for status indication in control systems. IP65 rated enclosure protects against dust and water jets.

Panel cutout size of 22.2 mm for standard mounting compatibility. Switch operation is momentary for temporary activating actions. Flat actuator style offers comfortable and consistent pressing. Terminal type is solder ensuring secure connections.

Operates between -35°C and 70°C temperature range. UL flame retardance standards UL 94 V-0 and UL 94 V-2 compliant. Manufactured in Taiwan, Province Of China ensuring quality control.

This RS PRO illuminated Push Button Switch is widely used in industrial, telecommunications, measurement, and automation applications requiring reliable user input interface with visual indication. It readily integrates into electronic and electrical control panels.

EnvMart offers this high-quality switch for varied professional applications under the RS PRO brand, catering to demanding industrial and commercial environments.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching functions.

The maximum operating temperature for this switch is 70°C, making it suitable for a wide range of environments.

It requires a panel cutout size of 22.2 mm for standard mounting compatibility.

The switch has an IP65 rating, providing protection against dust ingress and water jets, suitable for harsh environments.

It supports contact voltages up to 250V for both AC and DC applications.

The contact current rating for this switch ranges between 3 A and 5 A.

This unit uses solder type terminals, ensuring secure electrical connections.

It features a yellow LED for visual status indication, enhancing user feedback in control panels.

The minimum operating temperature for this model is -35°C, allowing it to function in cold environments.

It meets UL 94 V-0 and UL 94 V-2 standards for flame retardance, enhancing safety in electronic circuits.

The actuator style is flat, which facilitates easy and comfortable actuation.

It is suitable for industrial environments, communication devices, wireless equipment, electronic measuring instruments, and office automation applications.
