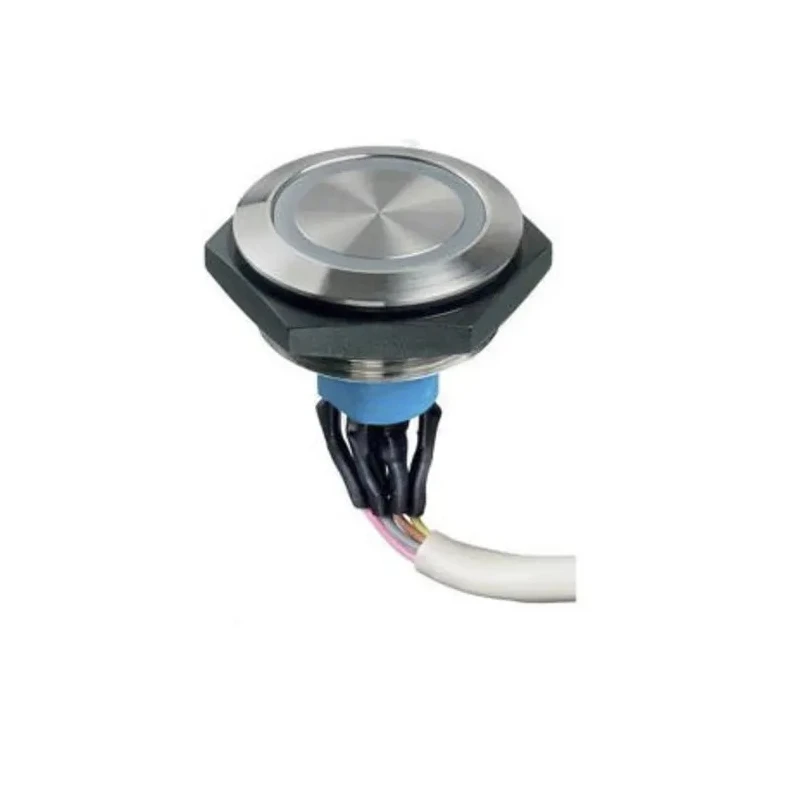

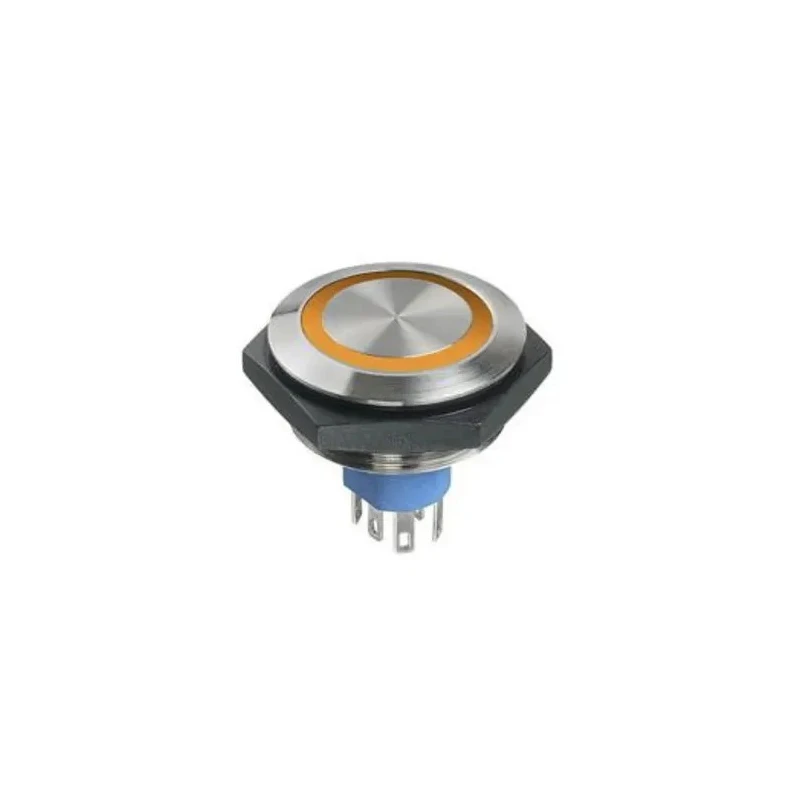

APEM AV Series Illuminated Vandal Proof Push Button Switch Momentary Panel Mount, 30.2 mm Cutout, SPST AV5V222000074BK

APEM AV5V222000074BK Illuminated Vandal Proof Push Button Switch is a high-quality momentary switch designed for panel mounting with a 30.2 mm cutout diameter. Featuring a silver-colored round actuator and green LED illumination, this switch delivers excellent tactile feedback and high visibility for operator convenience in industrial and commercial applications.

Constructed with IP67 ingress protection, the switch is resistant to dust and water, making it ideal for harsh environments such as industrial automation, electrical control panels, manufacturing equipment, and outdoor installations. The quick connect terminal type enables rapid and secure wiring, supporting reliable electrical connections.

Operating parameters include a contact DC voltage of 30V and a current rating of 1A, suitable for control circuits and signaling applications. The switch accommodates temperatures from -30°C up to 85°C, ensuring performance stability across diverse environmental conditions. Mechanical life expectancy reaches one million cycles, highlighting its endurance and operational longevity.

The product complies with recognized industry standards EN 62262, IEC 60529, and IK06, confirming its robustness and vandal-resistant design. Its substantial length of 200 mm aids panel integration and handling during installation.

This AV series switch by APEM is well-suited for applications requiring secure, illuminated push button actuation with vandal-proof features, commonly deployed in industrial, automation, HVAC, commercial panel controls, and instrumentation systems.

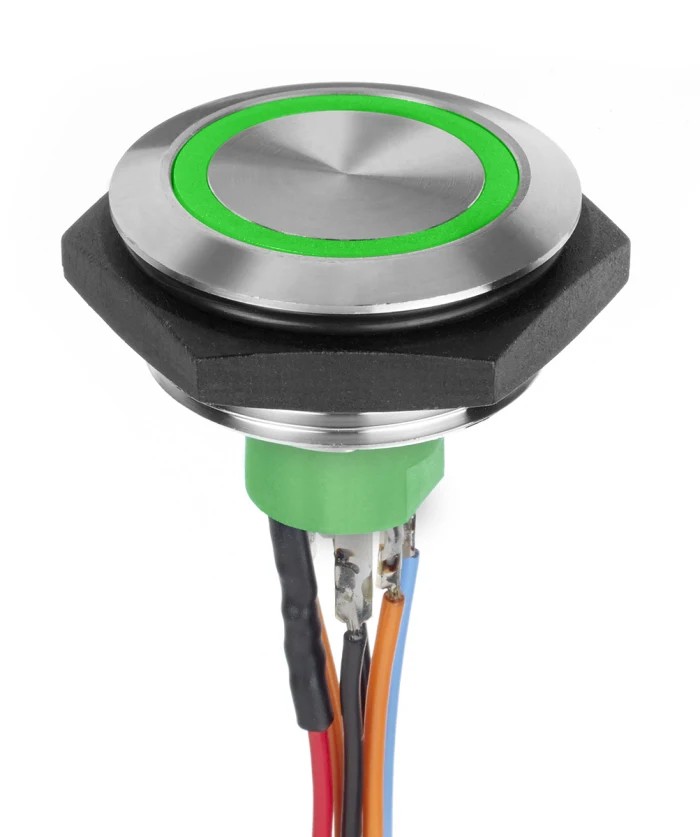

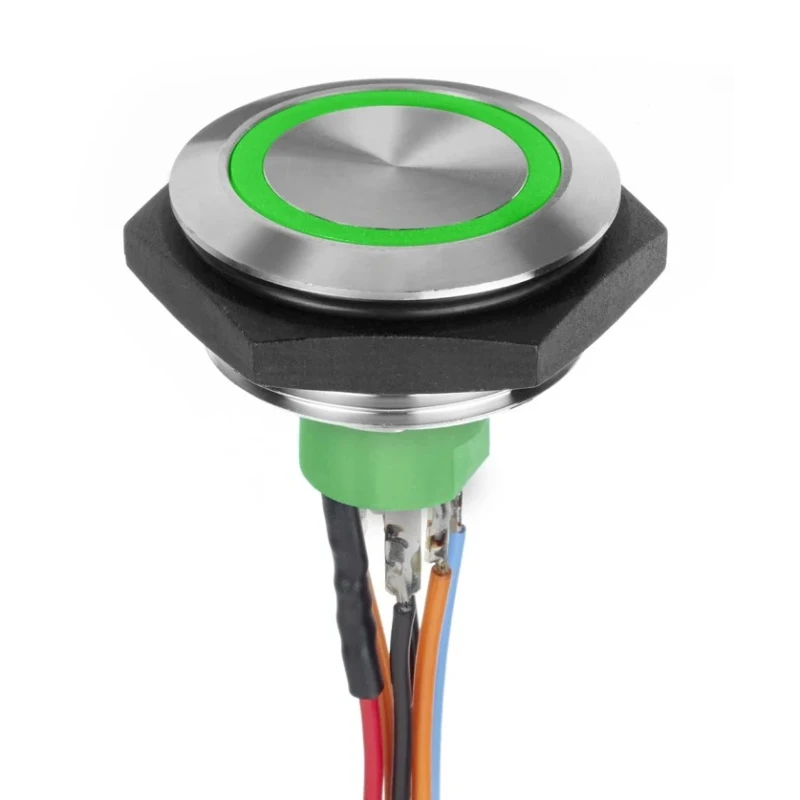

The actuator is silver colored with a round style for ease of use. This switch operates momentary with normally closed/normally open functionality. The illuminated ring enhances visibility with green LED illumination. It is rated for IP67 ingress protection, suitable for harsh environments.

The terminal type is quick connect for efficient wiring. Designed to operate within temperatures of -30°C to 85°C. Supports a contact DC voltage of 30V dc and contact current rating of 1A. Constructed for a mechanical life of 1 million cycles ensuring durability.

Complies with standards EN 62262, IEC 60529, and IK06 for robustness. Length dimension is 200 mm, facilitating panel installations. Explore more Push Button Switches and industrial components to enhance your electrical control solutions at EnvMart.
