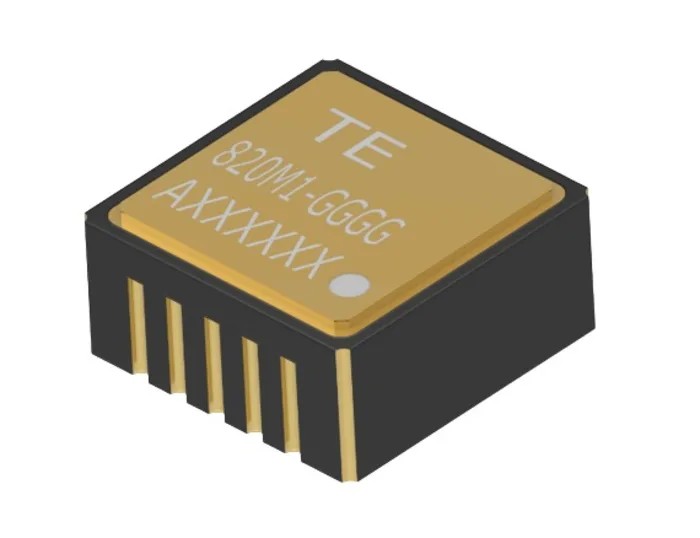

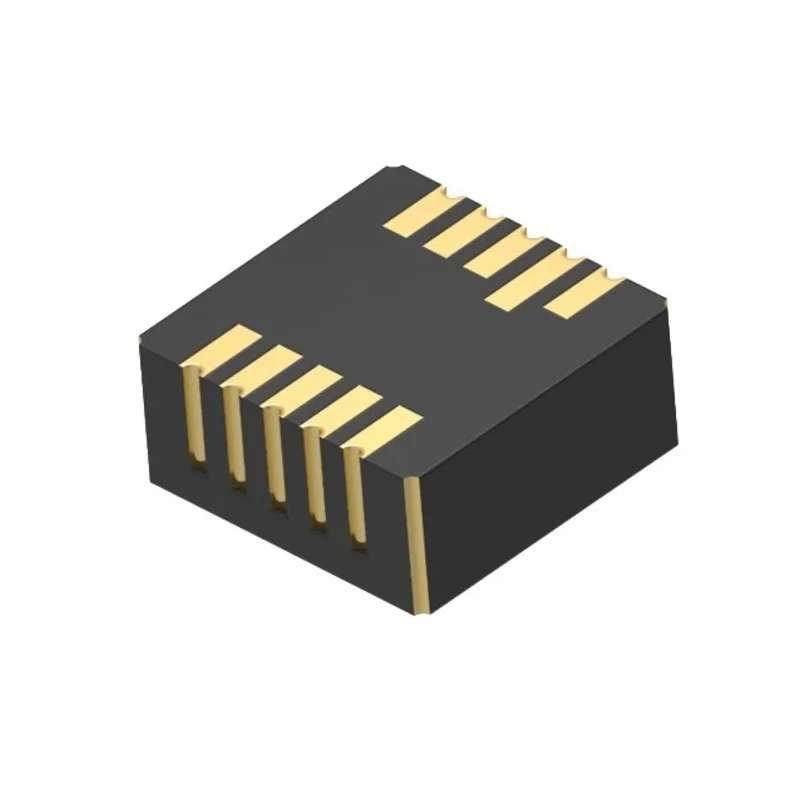

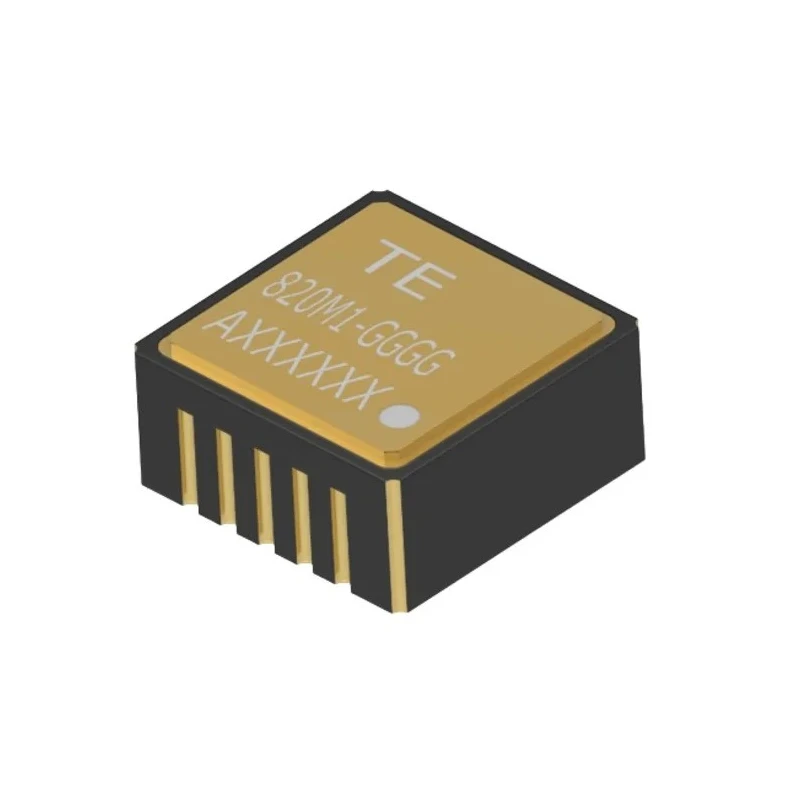

TE Connectivity 1 Axis Surface Accelerometer Analogue LCC 10-Pin 2.8V to 5.5V 20005836-01
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 4.2mm |
| Length | 8.89mm |
| SENSITIVITY | 50mV/g |
| Technology | Digital |
| Sensor Type | Accelerometer |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | LCC |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | Analogue |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.8V |
| Supply Current | 62μA |
| Maximum Frequency Response | 10000Hz |
| Minimum Frequency Response | 2Hz |
Key Features
- The accelerometer operates with a frequency response from 2 Hz to 10,000 Hz.
- It features a sensitivity of 50 millivolt per g acceleration.
- Designed for surface mounting with an LCC package and 10-pin configuration.
- Operational temperature range is from -40°C up to 125°C suitable for harsh environments.
- Low supply current consumption of 62 microamperes ensures efficient power usage.
- Compact footprint with dimensions 8.89 mm length and 4.2 mm height for PCB integration.
- Provides reliable and long-term stable analogue output required for condition monitoring systems.
- RoHS compliant manufactured component suitable for various industrial applications.
Product Description
TE Connectivity 20005836-01 is a single axis surface mount accelerometer designed for embedded condition monitoring and preventive maintenance applications. Operating on an analogue interface, it supports a supply voltage between 2.8V and 5.5V, with a frequency response range from 2 Hz to 10,000 Hz. The device provides a stable and reliable output signal, essential for long-term condition monitoring in industrial environments.
Its compact LCC package with 10 pins measures 8.89 mm in length and 4.2 mm in height, making it ideal for space-constrained PCB designs. The accelerometer operates effectively within a wide temperature range of -40°C to 125°C, ensuring performance in harsh conditions. Low current consumption of 62µA contributes to power efficiency in battery or low-power devices.
This accelerometer’s 50 mV/g sensitivity allows precise detection of vibrations and motion for applications including machinery health monitoring, vibration analysis, and structural monitoring. Its surface mount type enables easy integration into production lines for automated manufacturing.
The frequency response range is 2 Hz to 10,000 Hz enabling detection of a broad range of vibrational frequencies. Single axis operation focused on precise motion sensing on one plane. Complies with RoHS environmental standards ensuring regulatory compliance.
Designed to maintain output accuracy across the wide industrial temperature and voltage ranges. Low noise and stable output signal suitable for sensitive condition analysis.
Typical applications include industrial equipment monitoring, HVAC system maintenance, vibration analysis in manufacturing plants, and other embedded sensing uses. TE Connectivity’s robust quality standards ensure this accelerometer offers long-term durability and stability.
This accelerometer belongs to the broader category of Motion Sensor ICs under Semiconductor Sensor ICs, widely used in electronic and industrial automation applications. Discover more electronic components and sensor IC solutions at EnvMart’s Motion Sensor ICs category for reliable and high-performance devices.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accelerometer operates with a frequency response range from 2 Hz to 10,000 Hz.
It features a sensitivity of 50 millivolts per g of acceleration.
The accelerometer supports a supply voltage between 2.8V and 5.5V.
It has a compact footprint measuring 8.89 mm in length and 4.2 mm in height.
It has a low supply current consumption of 62 microamperes.
This model is designed for surface mounting with an LCC package.
It provides a stable and reliable analogue output signal.
Typical applications include industrial equipment monitoring, HVAC system maintenance, and vibration analysis in manufacturing plants.
This model measures acceleration in a single axis.
It features a 10-pin configuration for easy integration into circuits.
Yes, it complies with RoHS environmental standards.
