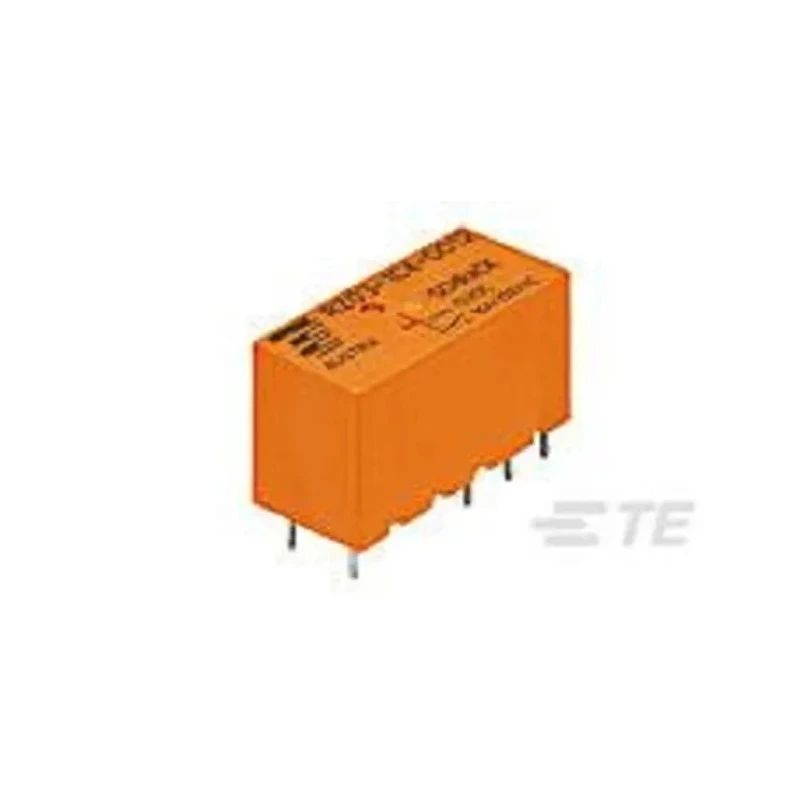

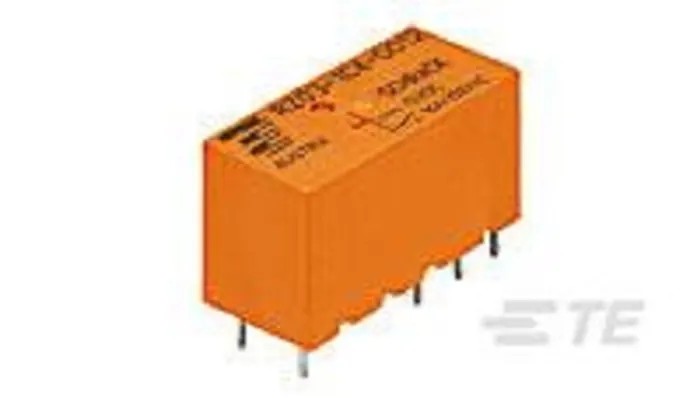

TE Connectivity PCB Monostable Relay 12V dc Coil 16A Switching Current SPST 4-1415899-9
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, RoHS |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- This relay operates with a coil voltage of 12V dc and provides a switching current capacity of 16A.
- Single Pole Single Throw (SPST) contact configuration is ideal for simple ON/OFF relay functions.
- Designed for PCB mount with solder terminal type for secure assembly.
- Operates reliably within a temperature range of -40°C to 85°C ensuring durability in varied environments.
- Silver alloy contact material reduces contact resistance to 50 milliohms for efficient conductivity.
- Compact dimensions of 20mm length, 15mm height, and 10mm width for space-saving PCB designs.
- Coil resistance is rated at 100 ohms with a low coil power consumption of 400mW.
- Certified to UL and RoHS standards confirming safety and environmental compliance.
Product Description
TE Connectivity 4-1415899-9 PCB Monostable Relay features a 12V dc coil voltage and supports a high switching current of 16A with SPST contact configuration. Designed for PCB mounting with solder terminals, it offers robust performance in industrial and commercial electronic applications.
This relay operates reliably across a temperature range from -40°C up to 85°C, ensuring optimal functionality even in harsh environments. The relay’s compact form factor with dimensions of 20mm length, 15mm height, and 10mm width facilitates easy integration into densely populated circuit boards.
The coil resistance is 100Ω, consuming only 400mW of power, making it energy efficient. High-quality silver alloy contacts provide excellent durability and maintain a low contact resistance of 50mΩ, ensuring reliable electrical connectivity. It supports switching AC voltage up to 250V and DC voltage up to 30V.
This product is compliant with UL and RoHS standards, guaranteeing adherence to safety and environmental regulations. The device is widely used in automation, control systems, HVAC, power management, and industrial electronics requiring precise switching functions.
Manufactured in Austria, this relay is built to deliver consistent performance and long service life. Its monostable coil magnetic system ensures straightforward single-pole switching operations on printed circuit boards.
Choose TE Connectivity 4-1415899-9 PCB Monostable Relay for reliable relay switching in your industrial or laboratory electronic equipment assembly. Explore more relays and electrical components on EnvMart for your professional applications.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16A.
It operates with a coil voltage of 12V dc.
The dimensions of this model are 20mm in length, 15mm in height, and 10mm in width.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The contact material is silver alloy, which helps reduce contact resistance.
The maximum operating temperature is 85°C.
The coil resistance is rated at 100 ohms.
This relay has a low coil power consumption of 400mW.
It can switch AC voltage up to 250V and DC voltage up to 30V.
The relay is designed for PCB mounting with solder terminals for secure assembly.
This relay is certified to UL and RoHS standards, ensuring safety and environmental compliance.
The minimum operating temperature is -40°C.
