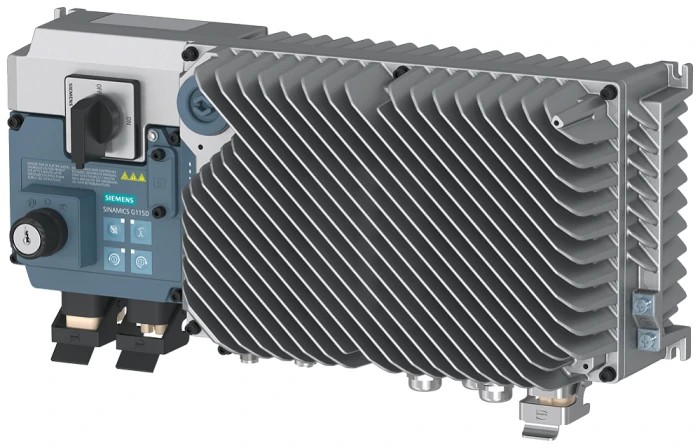

Siemens SINAMICS G115D Series Wall-Mounted Inverter Drive 2.2 kW 3 Phase 380-480V 11.8 A 6SL3520-2XM02-2AA0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-2XM02-2AA0 |
| IP Rating | IP66, IP65 |
| Mount Type | Wall |
| Overall Length | 240mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 11.8A |
| Standards/Approvals | WEEE Directive, SEMI F47, UL, CE, cUL, EAC, EMC Directive 2014/30/EC, KCC, Low Voltage Directive 2014/35/EC, RCM (C-Tick), REACH, RoHS |
| Maximum Supply Voltage | 480V |
| Overall Depth | 134mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | 3 Phase AC Motors |
Key Features
- Wall-mounted SINAMICS G115D series providing robust control and high efficiency.
- Supports maximum output current of 11.8 A for versatile motor operation.
- IP66 and IP65 rated enclosure for superior protection in harsh industrial environments.
- Operating temperature range from -30°C to 55°C ensures reliability under varied conditions.
- Output frequency up to 550 Hz allows precise motor speed control.
- Features sensorless vector and encoderless torque control for enhanced performance.
- Natural convection cooling design reduces maintenance needs.
- Includes RFI suppression filter compliant with Category C2 standards.
Product Description
Siemens 6SL3520-2XM02-2AA0 inverter drive from the SINAMICS G115D series is a wall-mounted distributed drive system designed to deliver 2.2 kW of power with a 3 phase input voltage ranging from 380 V to 480 V, capable of supporting a maximum output current of 11.8 A. This inverter is engineered for compatibility with 3 phase AC motors, providing sensorless vector control and encoderless torque control for precise and efficient motor management.
Its rugged IP66 and IP65 enclosure ensures protection against dust and water ingress, suitable for demanding industrial applications including manufacturing, automation, and HVAC systems. The device operates reliably within a temperature range of -30°C to 55°C and features natural convection cooling to minimize maintenance requirements.
Additional features include an RFI suppression filter compliant with Category C2 for electromagnetic compatibility, local and remote control options for flexible operation, and a compact design with overall dimensions of 240 mm length, 425 mm width, and 134 mm depth. The Siemens SINAMICS G115D series inverter drive adheres to multiple international standards such as UL, CE, cUL, EAC, EMC Directive 2014/30/EC, and RoHS, highlighting its safety and environmental compliance.
This product is manufactured in the United Kingdom and is part of the Siemens initiative to deliver energy-saving automation solutions under the Better World program. It is ideal for industrial automation, process control, robotics, and energy-efficient motor drives, helping to optimize productivity and reduce energy consumption in various industrial sectors.
Wall-mounted SINAMICS G115D series with 2.2 kW power rating. Three phase compatible for 380-480 V supply and 11.8 A maximum current. Robust IP65/IP66 enclosure suitable for harsh environments. Wide operating temperature range from -30°C to 55°C.
Natural convection cooling and RFI suppression for reliable performance. Complies with UL, CE, RoHS, EMC, and other international standards. Sensorless vector and encoderless torque control technology. Compact dimensions enable versatile installation options.
Made in the United Kingdom ensuring quality and reliability. Supports energy-saving initiatives for industrial automation. Explore a range of Siemens Inverter Drives and automation products on EnvMart for industrial automation, control gear, and electric motor applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 2.2 kW.
It supports a maximum output current of 11.8 A.
The input voltage range is from 380 V to 480 V.
The enclosure has IP66 and IP65 ratings, providing protection against dust and water ingress.
It operates reliably within a temperature range of -30°C to 55°C.
The output frequency can reach up to 550 Hz, allowing for precise motor speed control.
It is compatible with 3 phase AC motors.
It features a natural convection cooling design that reduces maintenance needs.
The overall dimensions are 240 mm in length, 425 mm in width, and 134 mm in depth.
It complies with several standards including UL, CE, RoHS, and the EMC Directive 2014/30/EC.
Yes, it includes an RFI suppression filter compliant with Category C2 standards.
It is manufactured in the United Kingdom.
