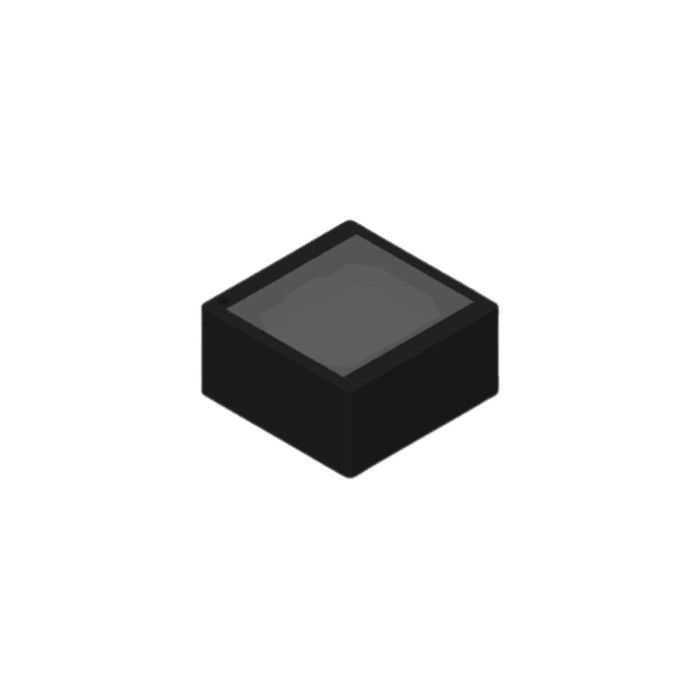

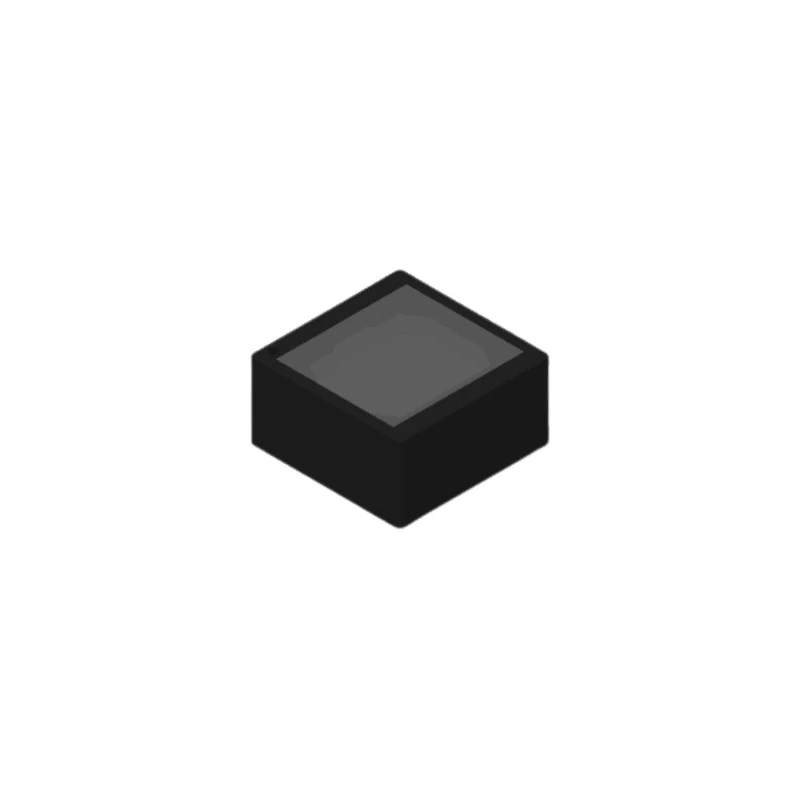

Wurth Elektronik Laser Diode 6600 mW 950 nm VCSEL 4-Pin Surface Mount 159353940A6300

Wurth Elektronik 159353940A6300 laser diode is a high-performance vertical cavity surface emitting laser (VCSEL) providing an optical output power of 6600 mW at a peak wavelength of 950 nm. This 4-pin surface mount laser diode is designed with AlGaAs chip technology to deliver high intensity and efficient infrared emissions.

Its compact package with dimensions of 12 mm width, 3.5 mm length, and 3.5 mm height makes it suitable for integration into various electronic and optoelectronic assemblies. The device supports a maximum continuous forward current of 3000 mA and an absolute maximum current rating of 5000 mA, ensuring capability for demanding applications.

Operating temperature range from -20°C to 85°C ensures reliable function in diverse environmental conditions, including industrial and laboratory settings. The maximum supply voltage of 2.3 V and reverse voltage up to 1000 V enhance electrical robustness. The laser diode is packaged in tape and reel format to facilitate automated PCB assembly and manufacturing efficiency.

This product complies with European regulations including REACH (EC 1907/2006) and RoHS (2011/65/EU & 2015/863), as well as IEC 60286-3:2019 standards, assuring compliance with environmental and safety requirements.

Wurth Elektronik 159353940A6300 laser diode is ideal for applications in electronics, industrial automation, medical devices, and scientific instrumentation where precise and stable infrared light sources are needed.

This laser diode features a 4-pin surface mount configuration for easy PCB integration. Designed for high intensity light applications requiring stable and efficient infrared emission. Maximum current rating is 5000 mA ensuring reliable performance in various electronic applications.

Operates safely within a temperature range of -20°C to 85°C, suitable for industrial environments. Comes packaged in tape and reel format for automated assembly processes. Compact dimensions: 12 mm width, 3.5 mm length, 3.5 mm height, with a pin diameter of 1.77 mm.

Maximum supply voltage is 2.3 V with a maximum reverse voltage of 1000 V, supporting robust electrical operation. Compliant with REACH, RoHS, and IEC 60286-3:2019 standards ensuring environmentally safe manufacturing. Browse the Electronics Components category at EnvMart for more Laser Diodes and optoelectronic devices from top brands including Wurth Elektronik.
