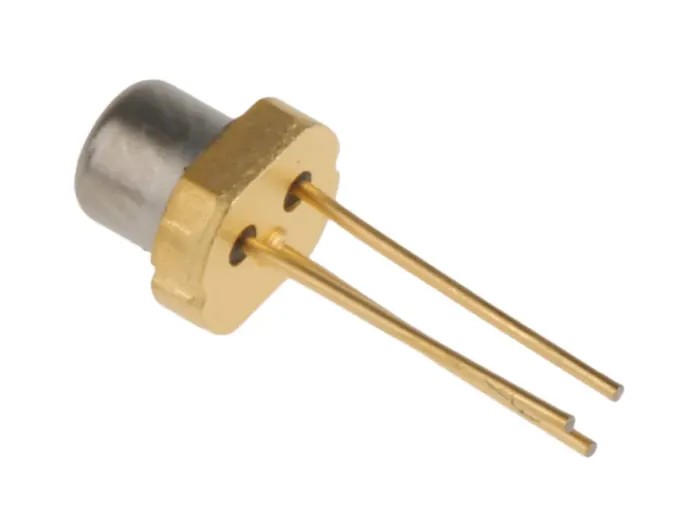

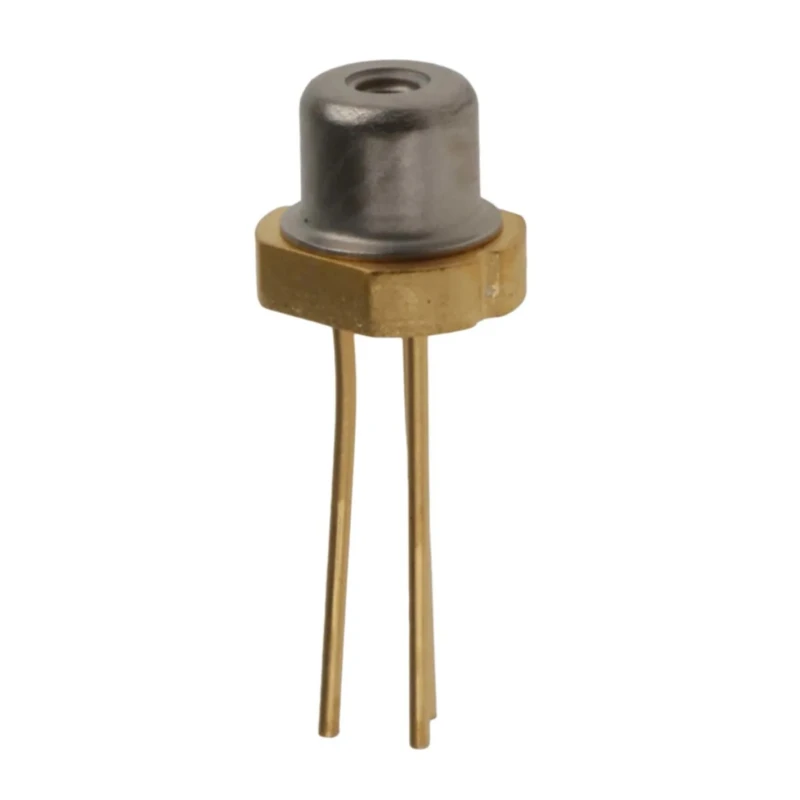

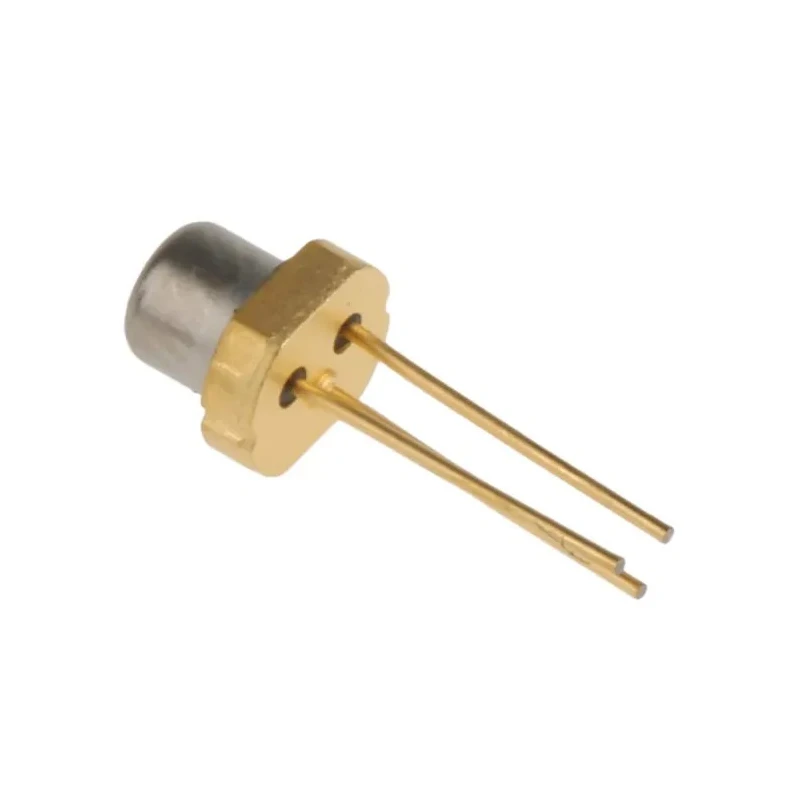

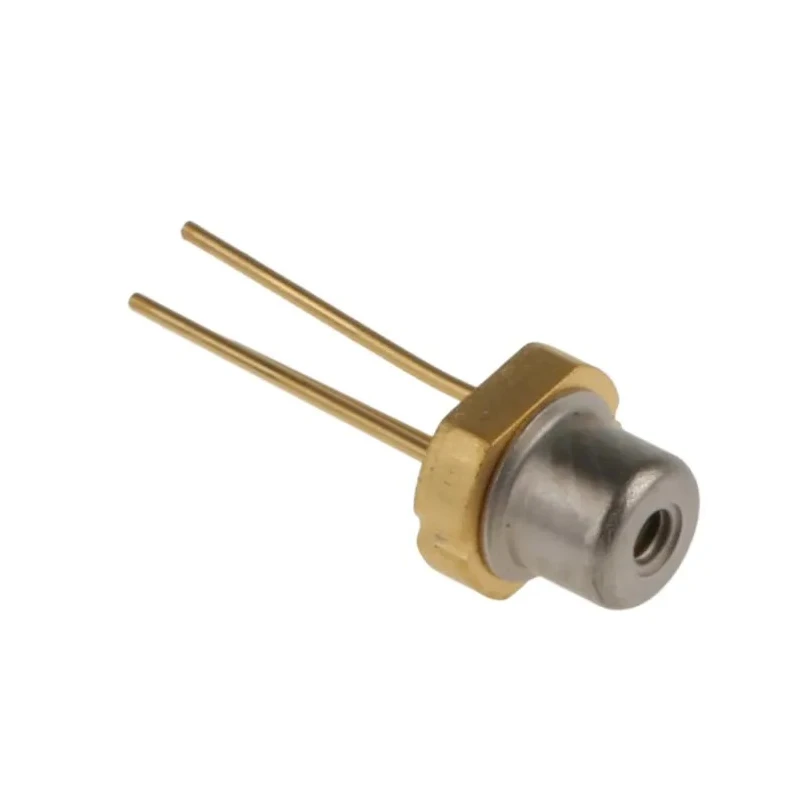

ams OSRAM Green Laser Diode 515 nm 30 mW 3-Pin TO-38 Package PL 520_B1_2

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Green Laser Diode 515 nm 30 mW 3-Pin TO-38 Package PL 520_B1_2

Name: ams OSRAM Green Laser Diode 515 nm 30 mW 3-Pin TO-38 Package PL 520_B1_2
Brand: ams OSRAM
SKU: 383966
Price: 28.27 USD
Availability: InStock



Category Laser Diode Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Diameter	3.8mm
Brand	ams OSRAM
Height	3.15mm
Length	10mm
Model	PL 520_B1_2
Mount Type	Through Hole
Laser type	Continuous Wave
Series	PL 520
Maximum Operating Temperature	60°C
Package Type	TO-38
Minimum Operating Temperature	-20°C
Maximum Current	200mA
Standards/Approvals	IEC60810, IEC 60825-1
Number of Pins	3
Maximum Supply Voltage	8V
Minimum Supply Voltage	6.5V
Laser Colour	Green
Optical Output Power	30mW
Peak Wavelength	515nm
Reverse voltage	2V

Key Features

Peak wavelength is precisely 515 nm enabling green laser applications.
Continuous wave laser type suitable for stable beam output.
Optical output power rated at 30 mW.
Compact dimensions with 10 mm length and 3.8 mm diameter.
Designed for through-hole mounting with 3 pins.
Operating temperature range from -20°C to 60°C ensures versatile use.
Maximum current rating is 200 mA, with a supply voltage range of 6.5 V to 8 V.
Package type is TO-38 standard metal can for durability.

Product Description

ams OSRAM PL 520_B1_2 Green Laser Diode is a compact, high-performance continuous wave laser diode emitting green light at a peak wavelength of 515 nm with an optical output power of 30 mW. This laser diode is housed in a robust 3-pin TO-38 metal package, designed for through-hole mounting. Its compact size with a length of 10 mm, diameter of 3.8 mm, and height of 3.15 mm facilitates easy integration into electronic systems.

Built to operate reliably within a temperature range from -20°C to 60°C, it features a maximum operating current of 200 mA with supply voltage specifications between 6.5 V and 8 V. The device also tolerates reverse voltage up to 2 V, enhancing its durability in electronic circuits.

Certified to IEC60810 and IEC 60825-1 standards, this laser diode meets necessary safety and quality benchmarks critical for industrial, laboratory, and biomedical applications. It is particularly well suited for laser projection, laser shows, holography, metrology, and various biomedical instrumentation where stable green laser light is essential.

The TO-38 package design provides mechanical protection and ensures effective thermal management for continuous operation. Peak wavelength of 515 nm suitable for precise green laser applications. Continuous wave laser type delivering steady output power of 30 mW.

Through-hole mount with 3 pins for secure electrical connections. Compact package with 10 mm length and 3.8 mm diameter for versatile use. Wide operating temperature range from -20°C to 60°C for diverse environments. Complies with international IEC safety and performance standards.

Maximum operating current 200 mA with voltage range of 6.5 V to 8 V. Reverse voltage protection up to 2 V.

This ams OSRAM laser diode is ideal for applications in industrial measurement systems, optical instrumentation, medical devices, and entertainment laser projection systems. Its precise wavelength and output power make it a reliable component for high-precision green laser projects.
