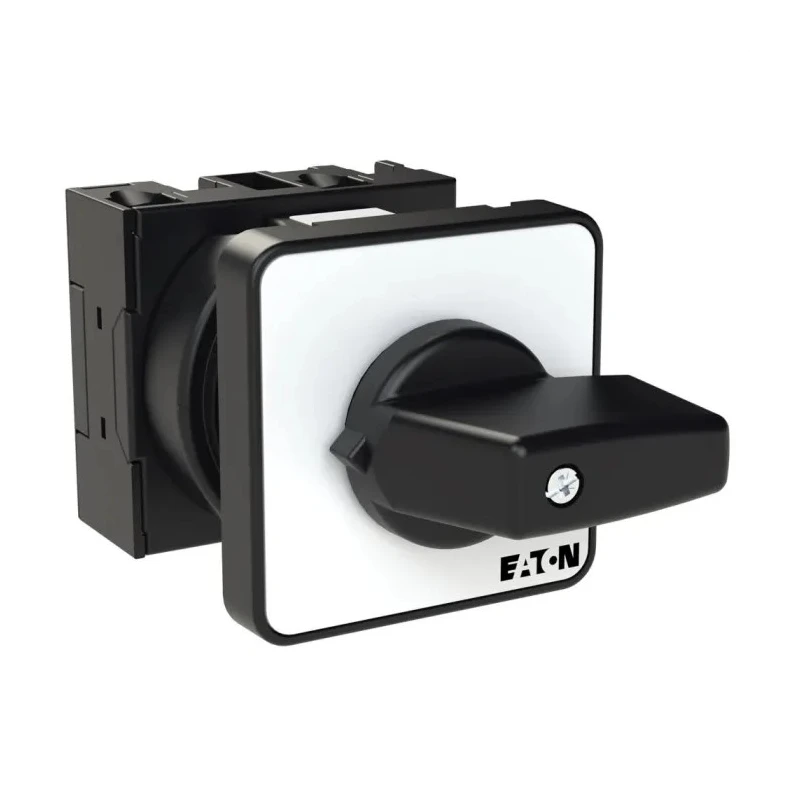

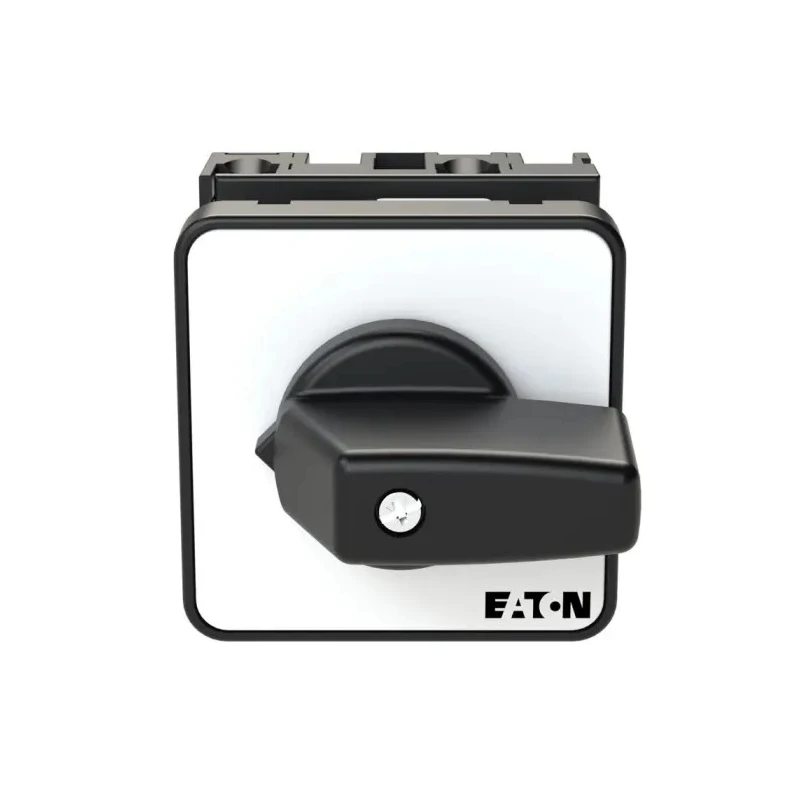

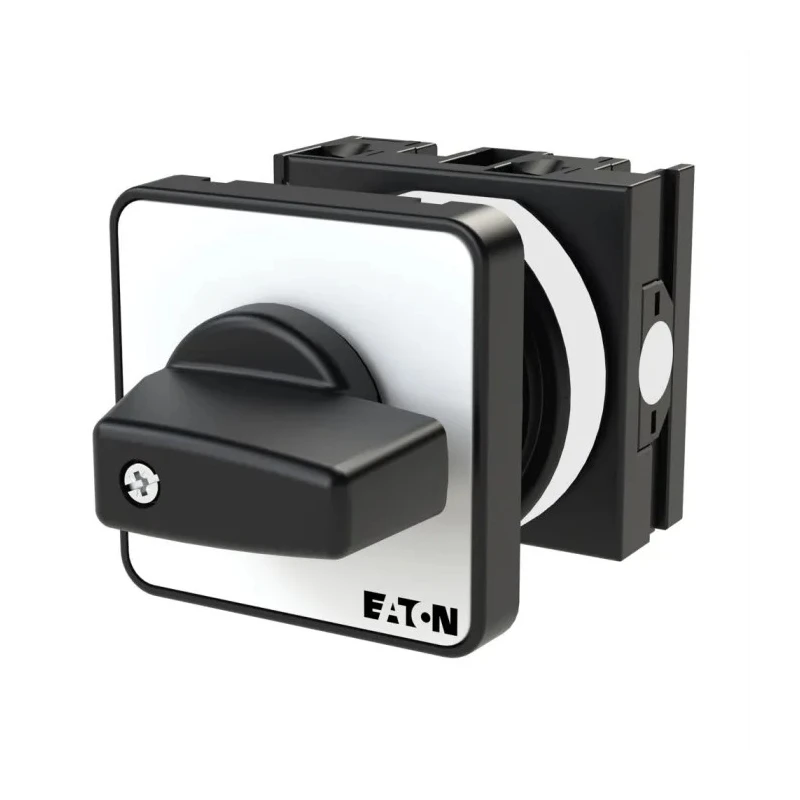

Eaton 2 Position 45° Toggle Actuator Cam Switch 20A 690V AC Flush Mount 038854 T0-1-15401/E

Eaton 038854 T0-1-15401/E 2 Position 45° Toggle Actuator Cam Switch is an industrial-grade electrical switch rated for a maximum contact current of 20A and a contact voltage of up to 690V AC. This cam switch features a compact and robust design with dimensions of 76 x 48 x 76 mm, facilitating flush mounting in control panels for seamless integration and space saving.

The toggle actuator provides smooth and reliable operation with a 45° angle of throw, enabling quick switching action which is particularly advantageous in limited space installations. The device is rated IP65, offering robust protection against dust ingress and water jets, making it ideal for harsh industrial environments.

The single pole, single throw (SPST) switch utilizes screw terminals compatible with solid or stranded cables of 1 to 2.5 mm² cross-section, supporting versatile wiring options. Its mechanical life expectancy of 10 million operations ensures long-term reliability in demanding applications.

Common applications include usage within electrical disconnect switches, machinery control panels, HVAC systems, and various automation equipment where dependable on-off control is essential. The operating temperature range from -25°C to 50°C supports use in diverse environmental conditions.

This cam switch adheres to rigorous international standards including CSA-C22.2 No. 14-05, IEC/EN 60947-3, UL 508, CE marking, and VDE 0660 certifications, underscoring its quality and safety for industrial and commercial use.

Features a 45° angle of throw for efficient switching in compact spaces. Flush mount design for neat installation in control panels. IP65 rated for protection against dust and water jets. Single Pole Single Throw (SPST) with maintained on-off functionality.

Screw-type terminals accommodate wiring cross-sections from 1 to 2.5 mm². Suitable for control panels, HVAC systems, automation equipment, and motor control. Mechanical life rated for 10,000,000 operations ensuring durability.

Operates safely between -25°C to 50°C ambient temperatures. Complies with multiple standards including CSA, IEC/EN 60947-3, UL 508, CE marking, and more.
