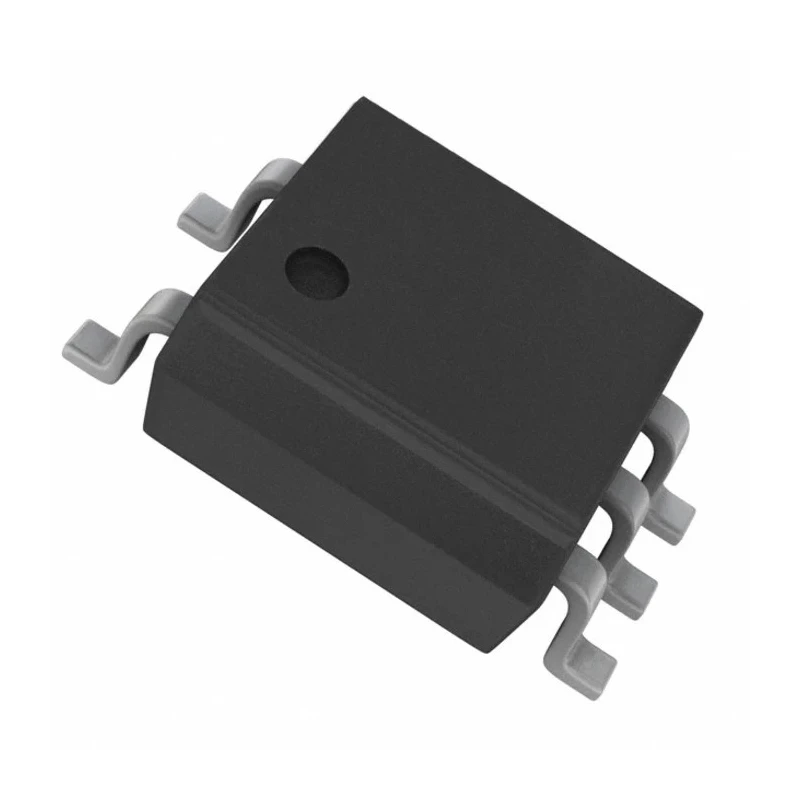

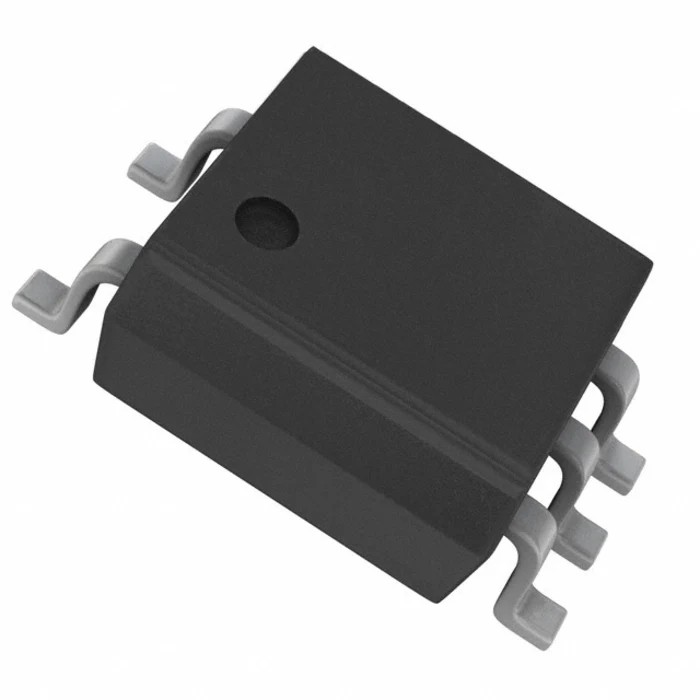

Renesas Electronics PS9151-V-F3-AX DC Input Photocoupler, Surface Mount, 5-Pin SO Package PS9151-V-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS9151-V-F3-AX |
| Packaging | 2500 pcs/Reel |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL Approved:UL1577, VDE Approved:DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 5 |
| Input Current Type | DC |
| Typical Rise Time | 4ns |
| Standards/ApprovalsUL Approved | UL1577, VDE Approved:DIN EN 60747-5-5 |
| UL Approved | UL1577, VDE Approved:DIN EN 60747-5-5 |
Key Features
- Features an AlGaAs LED input and CMOS output IC for optimal optical isolation.
- Surface mount device with 5-pin Small Outline (SO) package.
- Maximum forward voltage of 1.8 V and maximum input current of 20 mA.
- Typical rise and fall time of 4 ns, ensuring fast signal switching.
- Isolation voltage rated at 3750 Vrms for secure signal transmission.
- Operates effectively within temperature range -40°C to 100°C.
- UL1577 and VDE DIN EN 60747-5-5 approved for industrial safety standards compliance.
- Packaged in reels of 2500 pieces for manufacturing efficiency.
Product Description
Renesas Electronics PS9151-V-F3-AX is a high-performance DC input photocoupler designed for surface mounting with a 5-pin Small Outline (SO) package. It features an AlGaAs LED on the input side and a CMOS output IC, which enables high-speed response and excellent isolation characteristics.
With a maximum forward voltage of 1.8 V and input current up to 20 mA, this photocoupler is suitable for precise signal isolation in industrial, electronics manufacturing, automation, and control systems. Its typical rise and fall times are 4 nanoseconds, supporting rapid switching applications.
The device offers a high isolation voltage of 3750 Vrms ensuring robust protection between input and output signals. Operating temperature range from -40°C to 100°C makes it adaptable for harsh environments, extending reliability in automotive electronics, power supplies, and instrumentation.
Certified to industry safety standards UL1577 and VDE DIN EN 60747-5-5, the PS9151-V-F3-AX meets stringent requirements for optoelectronic component safety and quality. It is part of the PS series and adheres to DC input current specifications.
This product is supplied in reels containing 2500 pieces, optimized for automated PCB assembly processes, enhancing production throughput and consistency. High-speed response with typical 4 ns rise and fall times. Strong electrical isolation with 3750 Vrms isolation voltage.
Surface mount 5-pin SO package for compact design. Wide operating temperature range from -40°C to 100°C. UL and VDE approved for reliability and safety compliance. Packaged in 2500 pcs reels for efficient manufacturing integration.
Low forward voltage and input current for energy efficiency.
This photocoupler is ideal for use in industrial automation, electrical isolation, signal transmission in harsh conditions, and power supply regulation systems. Browse more Optocouplers and photodetector components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage for this model is 1.8 V.
The maximum input current for the PS9151-V-F3-AX is 20 mA.
This model has a typical rise and fall time of 4 nanoseconds, supporting fast signal switching.
It has an isolation voltage rated at 3750 Vrms, ensuring secure signal transmission.
The operating temperature range for this unit is from -40°C to 100°C.
This photocoupler is packaged in a 5-pin Small Outline (SO) package for surface mounting.
The product is supplied in reels containing 2500 pieces, optimized for manufacturing efficiency.
It is certified to UL1577 and VDE DIN EN 60747-5-5 safety standards.
Yes, it is suitable for precise signal isolation in industrial automation, electronics manufacturing, and control systems.
This model uses DC input current.
It features an AlGaAs LED input and a CMOS output IC, providing excellent optical isolation characteristics.
