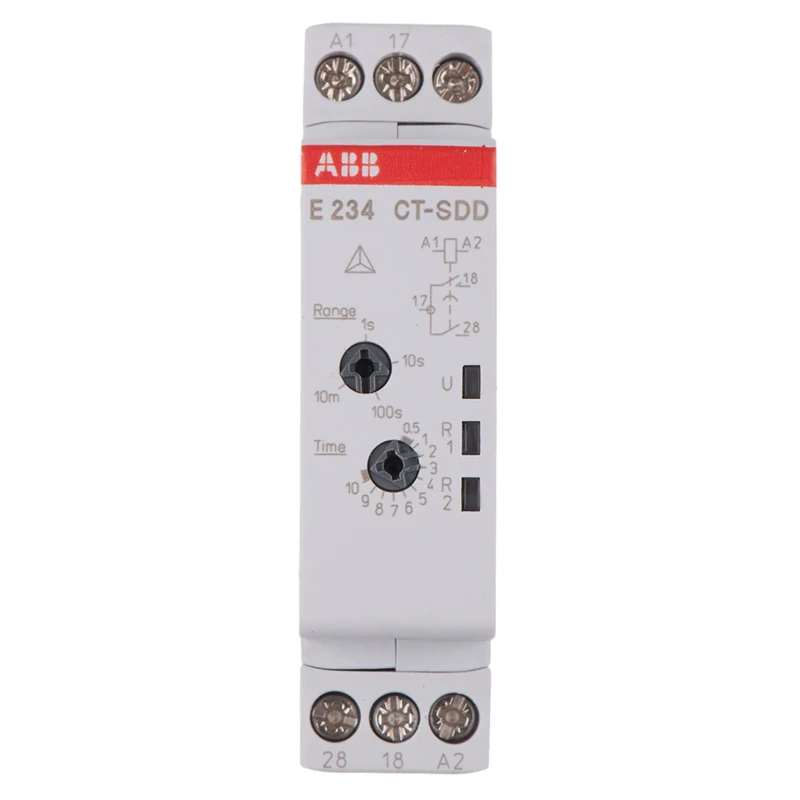

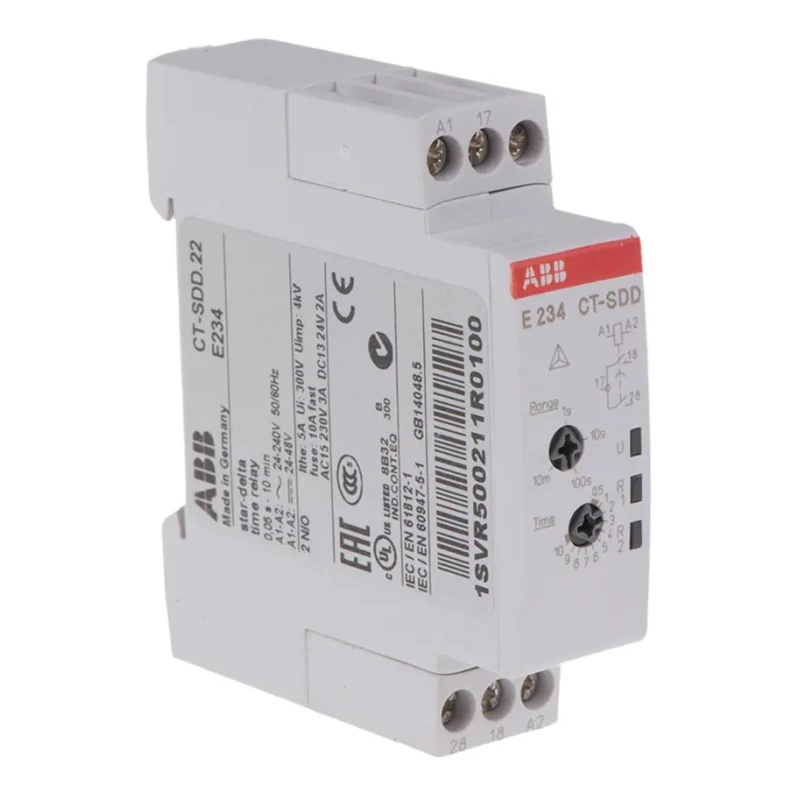

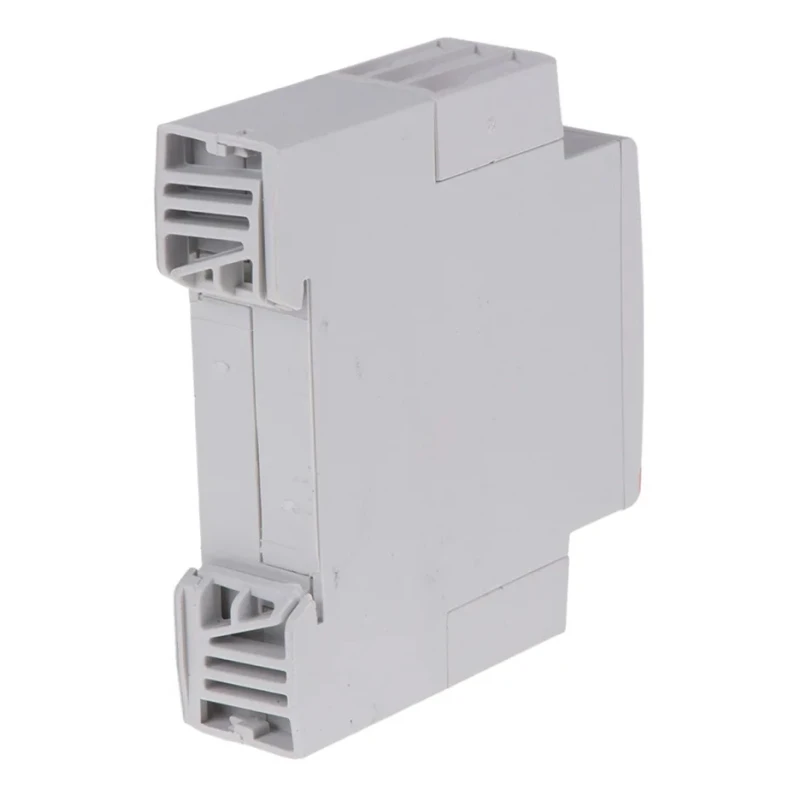

ABB 1SVR Series DIN Rail Timer Relay 2-Contact 48 V dc 24V ac 240 V ac 0.05 s to 10 min 1SVR500211R0100 - CT-SDD.22

ABB 1SVR500211R0100 - CT-SDD.22 DIN Rail Timer Relay is engineered for precise and reliable automation timing control in industrial and electrical applications. This timer relay mounts on standard DIN rails, facilitating easy integration within control panels.

Operating on a broad voltage range including 48 V dc and 24/240 V ac, it provides flexibility for various electrical environments. Its timing range from 0.05 seconds to 10 minutes allows fine control suited for star-delta motor starting and valve actuations.

The relay includes 2 switch contacts arranged in DPST configuration supporting a 3 A contact current, enabling dependable switching operations in diverse circuit controls. Timing adjustment is conveniently performed via a screwdriver slot, granting accurate setpoint tuning.

Designed to function within a temperature range from -20°C up to 60°C, this relay is fitted with an IP50 protection rating to safeguard against dust ingress in industrial environments. Terminals are screw-type ensuring firm and secure electrical connections for long-term durability.

Measuring a compact 78 mm length, 22.5 mm width, and 100 mm height, this relay optimizes panel space usage. It adheres to RoHS and CE certifications, ensuring compliance with safety and environmental standards.

Manufactured in Bulgaria, the ABB 1SVR series timer relay offers high quality and proven reliability for use in electrical automation, manufacturing, HVAC control systems, water treatment facilities, and other industrial process controls requiring timed switching functionalities.

This DIN Rail mounted timer relay supports dual supply voltages of 48 V dc and 24/240 V ac. Equipped with 2 contacts supporting a contact current of 3 A for reliable switching performance. The relay features a star-delta mode with a single timer function for valve operation.

Adjustment of timing is done via a screwdriver slot for easy and precise setting. It supports an operating temperature range from -20°C to 60°C and carries an IP50 rating for protection. Compact design dimensions include a length of 78 mm, width of 22.5 mm, and height of 100 mm.

The relay terminals utilize screw type connectors ensuring secure electrical connections. Compliant with RoHS and CE standards, suitable for stringent industrial applications. Engineered and manufactured in Bulgaria ensuring quality and reliability.
