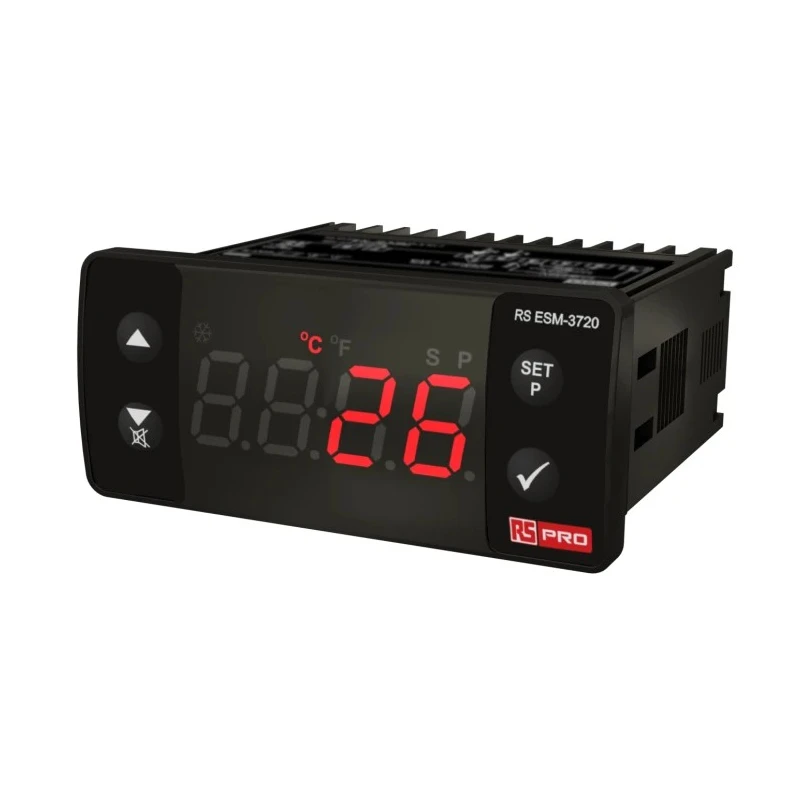

RS PRO Panel Mount Digital Temperature Controller 1 Input, 2 Output Relay PID 24 V Model 222-8136
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Dimensions | 77 x 35 mm |
| Temperature range | -20 → +70 °C |
| Relay outputs | 16(8) A@250 Vac at resistive load (Compressor Output) |
| Model | 222-8136 |
| Thermo-resistance input type | PT-100 (IEC751) (ITS 90) |
| 24 V, RS stock no | 222-8136, 222-8138 |
| 100 to 240 V, RS stock no | 222-8134, 222-8135 |
| 10 to 30 V, RS stock no | 222-8139 |
Key Features
- Features 4 digits display for clear temperature readings.
- Equipped with 2-wire PT-100 input compliant with IEC751 and ITS 90 standards.
- Includes 2 relay outputs rated at 16(8) A at 250 Vac for compressor and alarm functions.
- Operates within a temperature range of -20 to +70 °C for versatile application.
- Selectable heating or cooling functions with PID or ON/OFF control options.
- Adjustable internal buzzer to signal sensor defects.
- Supports remote access, data collection, and control via Modbus RTU.
- Comes with password protection for programming parameters.
Product Description
RS PRO 222-8136 is a high-quality panel mount digital temperature controller featuring PID control technology for precise temperature regulation. Designed with 1 PT100 input and 2 relay output channels, the unit supports an extensive temperature range from -20 to +70 °C, suitable for diverse industrial temperature control applications.
This controller includes a clear 4-digit display and offers selectable heating or cooling functions with compressor protection delays to enhance equipment longevity. Configuration is straightforward with adjustable internal buzzer settings and password protection to secure programming parameters.
The device enables remote access and data acquisition using Modbus RTU protocol, making it ideal for automation and process control in industries such as textiles, automotive, manufacturing, and machinery.
Powered by 24 V supply voltage, the controller delivers relay outputs rated at 16(8) A @ 250 Vac for controlling compressors and alarm systems effectively. The compact 77 x 35 mm panel mount housing allows easy installation in control panels with robust construction for durability.
4 digits display for clear monitoring. 2-wire PT-100 input adhering to IEC751 standards. Dual relay outputs for compressor and alarm control. Temperature range from -20 to +70 °C. PID or ON/OFF selectable control modes. Adjustable buzzer for sensor fault indication.
Remote monitoring and control via Modbus RTU. Password protected programming. Compact dimensions for panel integration.
Manufactured in Turkey, this RS PRO temperature controller is engineered for industrial automation, HVAC, manufacturing, chemical processing, and other temperature-critical environments. It offers reliable performance with CE compliance and robust construction.
Browse the extensive RS PRO temperature controller offerings at EnvMart for professional quality automation solutions.
Explore more products in our Temperature Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 2-wire PT-100 input that complies with IEC751 and ITS 90 standards, ensuring accurate temperature measurement.
The controller includes 2 relay outputs rated at 16(8) A at 250 Vac, which can be used for compressor and alarm functions.
It operates on a supply voltage of 24 V, which is essential for its functionality in temperature control applications.
It supports Modbus RTU protocol, enabling remote monitoring and control of the temperature settings.
Yes, it includes an adjustable internal buzzer that signals sensor defects, enhancing operational reliability.
This model is manufactured in Turkey, reflecting its origin in industrial automation solutions.
It has a clear 4-digit display that facilitates easy monitoring of temperature readings.
