RS PRO Pluggable Terminal Block 4-Contact 5.08 mm Pitch 1 Row Model 897-1240

Free Delivery in India | Lowest Global Shipping Charges

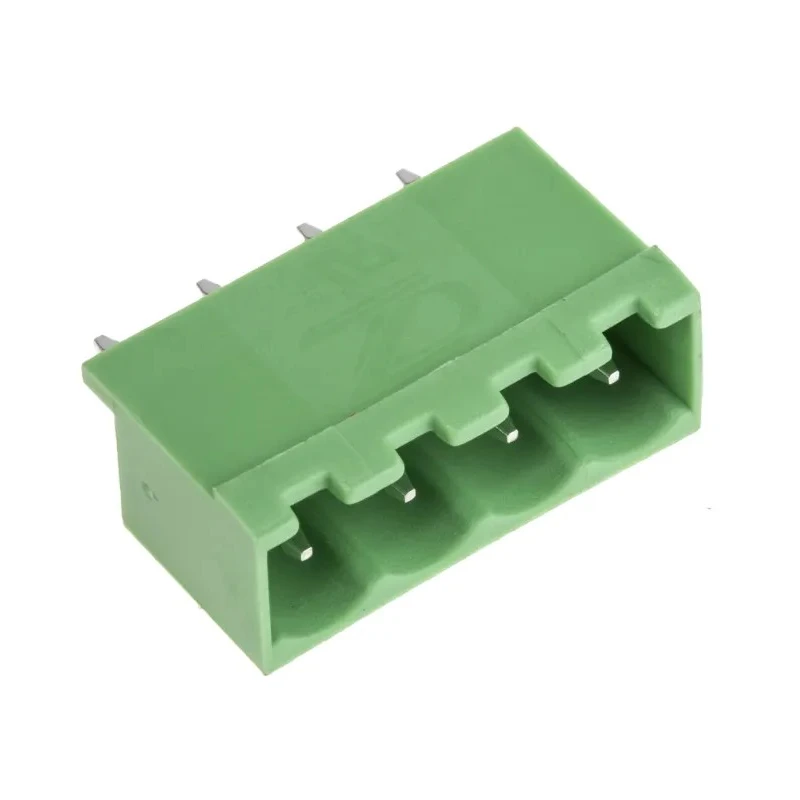

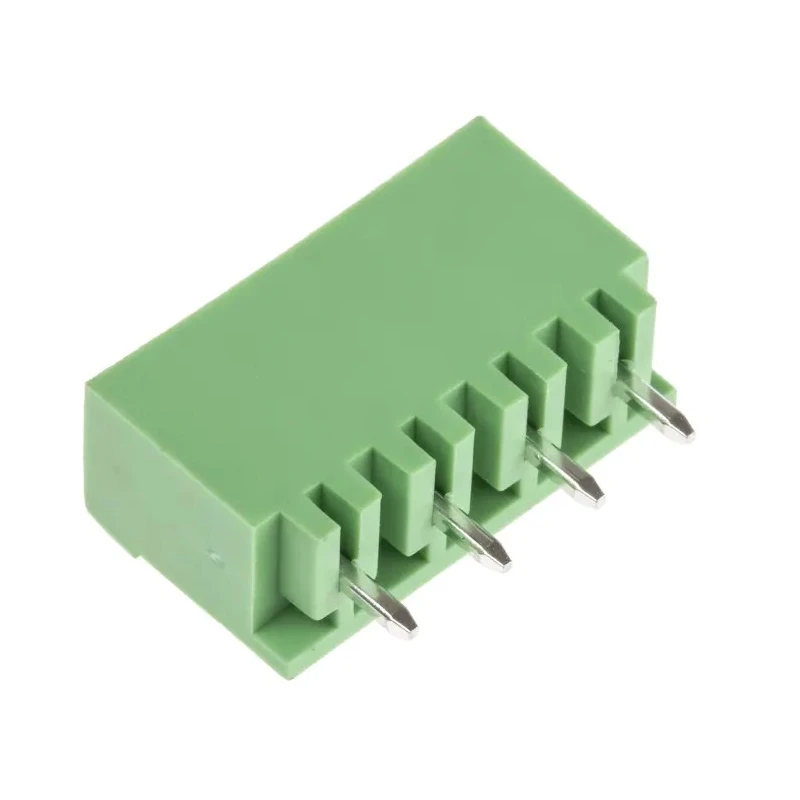

RS PRO Pluggable Terminal Block 4-Contact 5.08 mm Pitch 1 Row Model 897-1240

Name: RS PRO Pluggable Terminal Block 4-Contact 5.08 mm Pitch 1 Row Model 897-1240
Brand: RS PRO
SKU: 412039
Price: 0.42 USD
Availability: InStock



Category Pluggable Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	300V
Brand	RS PRO
Colour	Green
Orientation	Straight
Current	15A
Length	21.5mm
Model	897-1240
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	5.08mm
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	2mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	14AWG
Wire Connection Method	Solder
RS PRO Pluggable Terminal Block, 4-Contact, 5 mm Pitch, 1 RowBrand	RS PRO

Key Features

Features a green polyamide housing with UL94-V0 flame retardant rating.
Supports a maximum current of 15A for reliable electrical connections.
Designed with straight orientation and solder wire connection method.
Accepts wire sizes ranging from 0.33 mm² (22 AWG) to 2 mm² (14 AWG).
Compact size with a length of 21.5 mm for space-saving PCB layouts.
Provides secure mating with 5.08 mm pitch female terminal block connectors.
Single-row configuration ideal for streamlined circuit assembly.

Product Description

RS PRO 897-1240 is a pluggable terminal block ideal for industrial and electronic applications requiring reliable PCB connections. This product features 4 contacts arranged in a single row with a pitch of 5.08 mm, making it suitable for compact and efficient circuit designs.

The terminal block's housing is made of green polyamide material compliant with UL94-V0 flame retardant standards, ensuring enhanced safety and durability. Rated for current up to 15A and voltage up to 300V, it meets demanding electrical performance requirements.

The design includes straight orientation and solder wire connection method, providing secure and stable wire integration. It accommodates wires in the size range from 0.33 mm² (22 AWG) to 2 mm² (14 AWG), offering flexibility in wiring options.

This 21.5 mm length terminal block is part of the RS PRO series and manufactured in China, assuring consistent quality and compliance. It mates precisely with 5.08 mm pitch female PCB connectors, facilitating quick assembly and maintenance.

Green polyamide UL94-V0 flame retardant housing. Maximum current rating of 15A suitable for various electronic circuits. Straight orientation for straightforward wiring layouts. Solder wire connection method for permanent and secure connections.

Accepts wire sizes from 0.33 mm² to 2 mm² (22 to 14 AWG). Rated voltage of 300V ensuring safe operation in industrial environments. Compact 21.5 mm length for efficient PCB space utilization. Mates with 5.08 mm pitch female connectors for reliable plug-in connections.

Part of the RS PRO series with consistent quality manufacturing standards.

This Pluggable Terminal Block is widely applicable in electronics manufacturing, industrial automation systems, and power connectors for controlling and distributing electrical signals. Its robust construction and standardized pitch ensure compatibility with common PCB layouts, supporting efficient design and maintenance workflows.

Explore RS PRO products for high-quality, reliable components suitable for demanding industrial and electronic applications on EnvMart.
