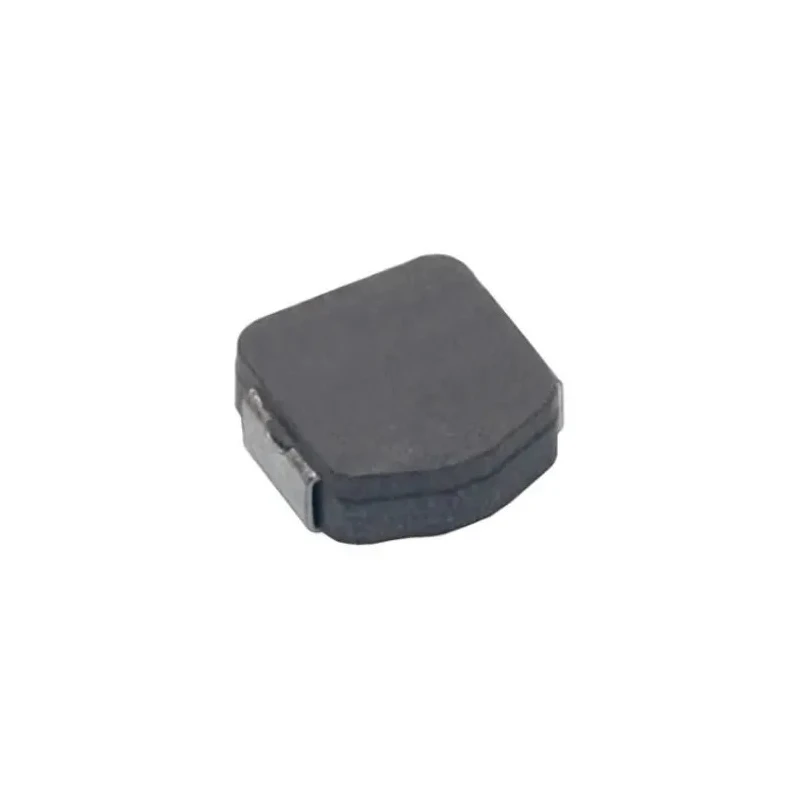

KEMET Shielded Wirewound Surface Mount Inductor, Metal Composite Core, 10 μH ±20% Inductance, 12.2 A DC MPX1D1264L100
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | KEMET |
| Height | 6.4mm |
| Length | 13.2mm |
| Model | MPX1D1264L100 |
| Depth | 12.5mm |
| Packaging | Tape & Reel |
| Series | MPX |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1264 |
| Maximum DC Current | 12.2A |
| Maximum DC Resistance | 16.1mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8.5MHz |
| Inductor Construction | Shielded |
Key Features
- Features a metal composite core designed for stability and high saturation capabilities.
- Shielded construction minimizes magnetic flux leakage and EMI interference.
- Surface mount termination style suitable for automated PCB assembly.
- Operating temperature range from -55°C to 155°C supports rugged applications.
- Maximum DC resistance is 16.1 milliohms ensuring efficient performance.
- Maximum self-resonant frequency of 8.5 MHz supports high frequency operations.
- Compliant with RoHS standards for environmental safety.
- Packaged in tape and reel format for volume manufacturing convenience.
Product Description
KEMET MPX1D1264L100 shielded wirewound Surface Mount Inductor features a metal composite core providing excellent temperature stability and high saturation capability, making it ideal for DC to DC switching power supplies and EMI filtering.
This inductor supports up to 12.2 A maximum DC current with an inductance of 10 μH ±20%. Its shielded construction reduces magnetic flux leakage and acoustic noise, improving circuit performance in sensitive electronics.
Encased in a 1264 package (13.2 mm length, 6.4 mm height, 12.5 mm depth), it includes surface mount termination for easy PCB integration. The device operates reliably between -55°C to 155°C with a maximum DC resistance of 16.1 mΩ and a self-resonant frequency up to 8.5 MHz.
Designed and manufactured in Vietnam, this RoHS-compliant component suits industrial electronics, telecommunications, power management modules, and automotive electronic systems requiring robust inductors with low EMI emissions.
Metal composite core with high saturation capability. Shielded surface mount wirewound construction. Supports maximum DC current of 12.2 A. Operating temperature from -55°C to 155°C. Low DC resistance of 16.1 milliohms ensures efficiency.
Maximum self-resonant frequency of 8.5 MHz. Packaged in tape and reel for automated assembly. RoHS compliant and environmentally safe.
This product is ideal for use in industrial, manufacturing, and commercial electronic assembly applications. Explore more high-quality inductors and electronic components at EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH ±20%.
It supports a maximum DC current of 12.2 A.
The operating temperature range is from -55°C to 155°C.
The maximum DC resistance is 16.1 milliohms.
The maximum self-resonant frequency is 8.5 MHz.
It features a metal composite core designed for stability and high saturation capabilities.
It is packaged in tape and reel format for volume manufacturing convenience.
The termination style is surface mount, suitable for automated PCB assembly.
It is compliant with RoHS standards for environmental safety.
The dimensions are 13.2 mm in length, 6.4 mm in height, and 12.5 mm in depth.
It is suitable for industrial electronics, telecommunications, power management modules, and automotive electronic systems.
It has a shielded wirewound construction that minimizes magnetic flux leakage and EMI interference.
