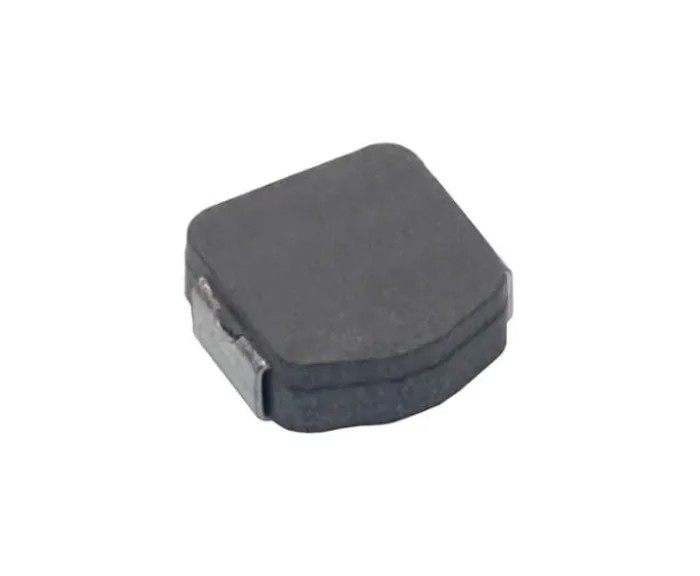

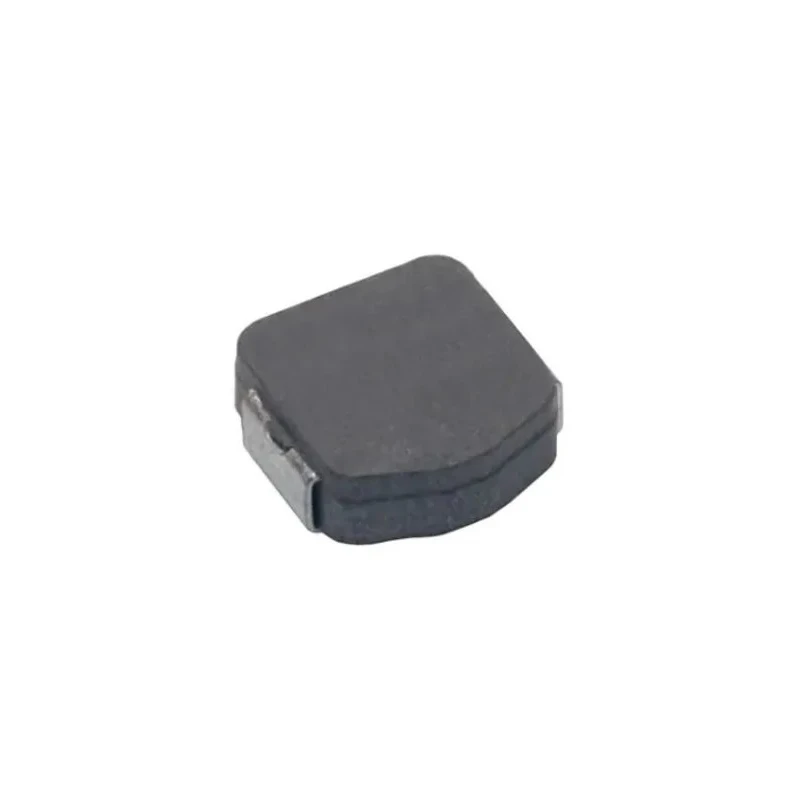

KEMET MPX 2213 Shielded Wirewound Surface Mount Inductor with Metal Composite Core 3.3 μH ±20% 54 A Idc MPX1D2213L3R3

KEMET MPX1D2213L3R3 Shielded Wirewound Surface Mount Inductor is a precision passive component designed for demanding electrical and electronic applications. This surface mount inductor incorporates a metal composite core that provides excellent saturation characteristics, allowing it to maintain stable inductance even under high current transients commonly found in power electronics and switching power supplies.

The shielded construction significantly reduces electromagnetic interference by minimizing magnetic flux leakage, ensuring reliable circuit performance. It also reduces acoustic noise, beneficial in sensitive equipment environments.

This inductor is rated with an inductance of 3.3 μH and a tolerance of ±20%, supporting a maximum DC current of 54 A with a very low DC resistance of 1.8 milliohms. It operates reliably within a temperature range from -55°C up to 155°C, meeting rigorous industrial temperature standards.

Its 2213 package size with length 22.5 mm, height 13 mm, and depth 22 mm allows for easy integration in compact printed circuit boards using surface mount technology. The termination style is designed for surface mounting, compatible with automated soldering and assembly processes.

The inductor's maximum self-resonant frequency is 11 MHz, making it suitable for use in high-frequency switching applications, EMI filters, and power inductors in DC to DC converters.

RoHS compliance guarantees the inductor meets environmental directives for electronic components. Manufactured in Japan, this component reflects high-quality standards and reliability required in advanced electronic designs.

The inductor's metal composite core enhances saturation performance. Shielded construction reduces electromagnetic interference and noise. Compact 2213 surface mount package enables efficient PCB layout. Wide operating temperature from -55°C to 155°C supports industrial use.

Low DC resistance improves electrical efficiency and thermal performance. Supports high current of 54 A suitable for demanding power circuits. High self-resonant frequency of up to 11 MHz optimized for switching power supplies.

RoHS compliant for environmental safety. Japanese manufacturing quality ensures durability and consistency.

Ideal for applications in industrial electronics, power supplies, automotive electronics, and telecommunications equipment, this KEMET surface mount inductor delivers reliability and performance. Explore more in the Surface Mount Inductors category on EnvMart to find compatible components and accessories.
