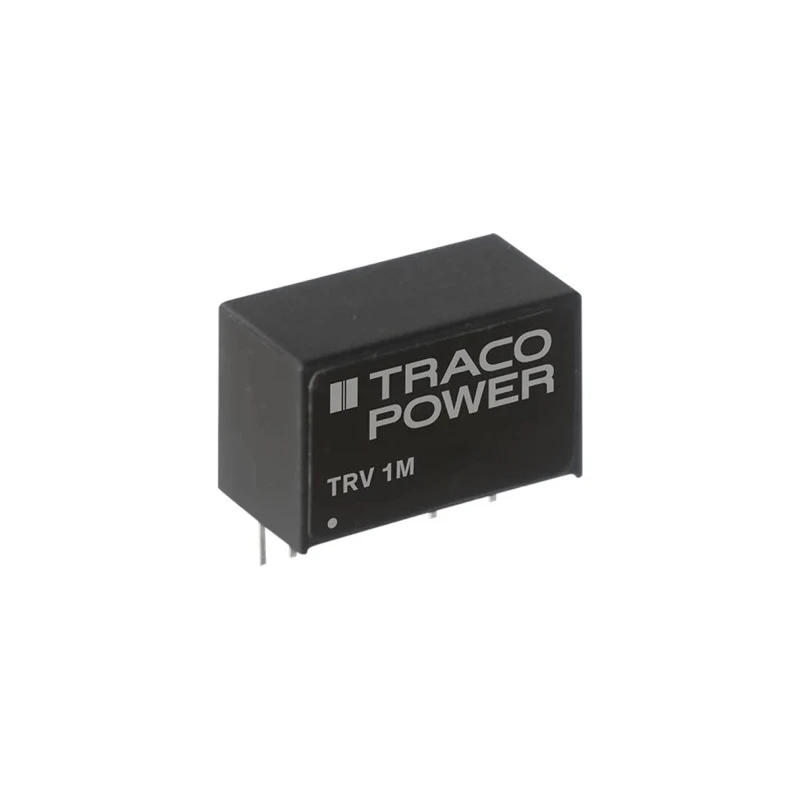

TRACOPOWER 1 Watt Reinforced Isolation SIP-9 DC/DC Converter with 5 V / 100 mA Output, 12 - 18 V Input, -40 to 85 TRV 1-1521M
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRV DC/DC Converter, 5V dc/ 100 mA, 18V |
| Brand | TRACOPOWER |
| Efficiency | 0.82% |
| Length | 19.6mm |
| Model | TRV 1-1521M |
| Depth | 12.5mm |
| Gross Weight | 4.8g |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | TRV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 19360000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | UL, EN, IEC, REACH, RoHS |
| Minimum Input Voltage | 12V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | -5 to 5 V dc |
| Isolation Voltage | 5kV |
| Output Voltage 2 | -5V dc |
Key Features
- This converter supports dual outputs with 5 V dc at 100 mA and -5 V dc voltages.
- Input voltage ranges from 12 V to 18 V dc with ±10% tolerance.
- It provides a low leakage current below 2 μA, ensuring patient safety in medical use.
- The device operates efficiently up to 85% and features continuous short circuit protection.
- Designed for reliable operation between -40 °C and +85 °C without derating.
- Reinforced isolation of 5000 VAC supports critical medical and industrial interface isolation standards.
- Compact footprint with dimensions 19.6 mm length, 12.5 mm depth, and 9.8 mm width in SIP package.
- Certified to UL, EN, IEC, REACH, and RoHS standards for compliance and safety assurance.
Product Description
TRACOPOWER TRV 1-1521M is a reliable 1 Watt DC/DC converter in a compact SIP-9 package providing reinforced isolation of 5000 VAC designed for demanding medical and industrial applications. This converter supports dual outputs with regulated voltages of 5 V dc at 100 mA and -5 V dc, accommodating input voltages from 12 V to 18 V dc with a ±10% range.
The design features low leakage current below 2 μA, vital for protecting patient interfaces and sensitive equipment. Efficiency reaches up to 85%, contributing to energy-saving operations, while continuous short circuit protection enhances device reliability and longevity.
Temperature ratings allow operation over a wide span from -40 °C to +85 °C without derating, making it suitable for harsh environments. The reinforced isolation at 5000 VAC ensures compliance with critical safety standards IEC/EN/ES 60601-1 3rd edition and IEC/EN/UL 62368-1, providing two means of patient protection (2xMOPP).
With certified UL, EN, IEC, REACH, and RoHS approvals, this converter meets global safety and environmental standards. The compact SIP form factor with 19.6 mm length, 12.5 mm depth, and 9.8 mm width facilitates easy PCB mounting and space-saving designs.
This product is widely applicable in industrial automation, medical instrumentation, telecommunications, and other electronic systems requiring reliable isolated power conversion. It comes with a 5-year warranty, reflecting TRACOPOWER’s confidence in quality and performance.
This converter supports dual regulated outputs for versatile applications. Low leakage current is optimized for sensitive medical device deployment. Robust electrical isolation for patient and equipment protection. Wide operating temperature range suitable for industrial environments.
Compact SIP-9 package for efficient PCB space usage. Compliance with a broad range of international safety and environmental standards. Continuous short circuit protection enhances product reliability. High efficiency contributes to reduced energy consumption.
5-year product warranty for peace of mind. Explore the comprehensive range of TRACOPOWER DC/DC Converters on EnvMart for enhancing your electronic power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 12 V to 18 V DC with a tolerance of ±10%.
This converter provides dual outputs: 5 V DC at 100 mA and -5 V DC.
The efficiency of this DC/DC converter reaches up to 85%.
It features reinforced isolation of 5000 VAC.
The operating temperature range is from -40 °C to +85 °C without derating.
The dimensions of the SIP-9 package are 19.6 mm in length, 12.5 mm in depth, and 9.8 mm in width.
It is certified to UL, EN, IEC, REACH, and RoHS standards for compliance and safety assurance.
The ripple and noise for the output is specified at 100 mV peak-to-peak.
This model has two outputs.
The maximum output power is 1 Watt.
It utilizes a through-hole mounting type for installation.
The maximum input voltage that this converter can handle is 18 V DC.
