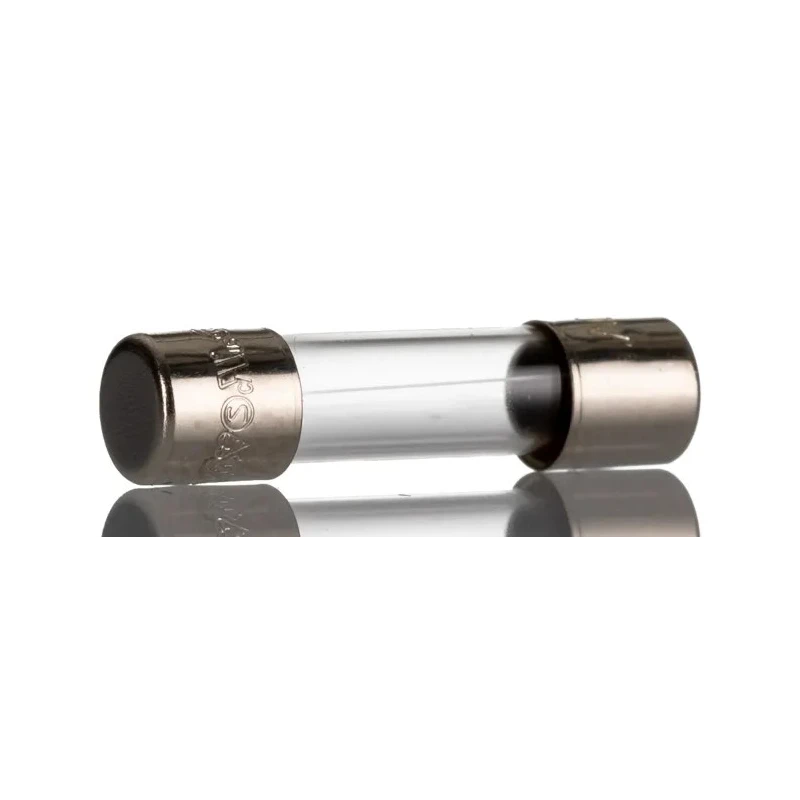

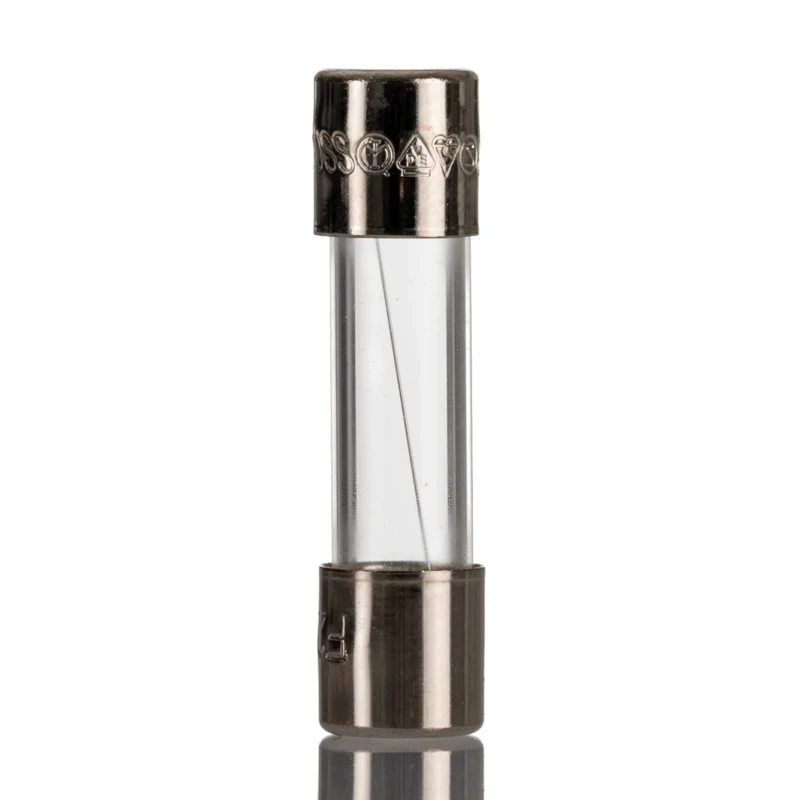

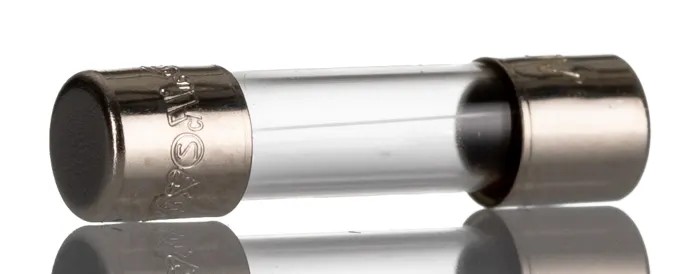

Eaton 4A Fast Acting Glass Cartridge Fuse 5 x 20 mm 250V AC S500-4-R

Eaton S500-4-R is a 4 amp fast acting glass cartridge fuse sized 5 x 20 mm, rated for 250 V AC electrical systems. This fuse is designed to offer dependable and rapid protection against electrical overloads and short circuits in various applications.

The fuse features a glass body enabling clear visual inspection of the fuse element, ensuring effective maintenance and monitoring. Its fast acting characteristic allows quick interruption of fault currents, minimizing damage to sensitive electrical components.

With a low resistance of approximately 21 milliohms, this fuse facilitates efficient current flow while protecting circuits. It conforms to international standards IEC 60127-2 and VDE, guaranteeing safety and performance reliability.

Compact in size with an overall length of 20 mm and diameter of 5 mm, the S500-4-R fuse fits easily into multiple equipment designs requiring cartridge fuses. Rated current of 4 amperes for moderate electrical loads. Fuse size of 5 x 20 mm ensures compatibility with various equipment.

Voltage rating of 250 V AC suitable for a wide range of electrical systems. Fast acting fuse characteristic for quick response to overloads and short circuits. Glass body material enables easy visual inspection of fuse status.

Low resistance of approximately 21 mΩ for efficient electrical flow. Complies with IEC 60127-2 and VDE standards for safety and quality assurance. Compact overall length of 20 mm allows installation in tight spaces. Ideal for safeguarding electrical appliances, automation equipment, and electronics.

Suitable for industrial, commercial, and residential electrical protection applications.

This Eaton glass cartridge fuse is widely used in electrical appliances, automation controls, electronics manufacturing, and mechanical equipment requiring reliable circuit protection against transient faults. Its high-quality construction and adherence to international standards provide peace of mind in critical applications.
