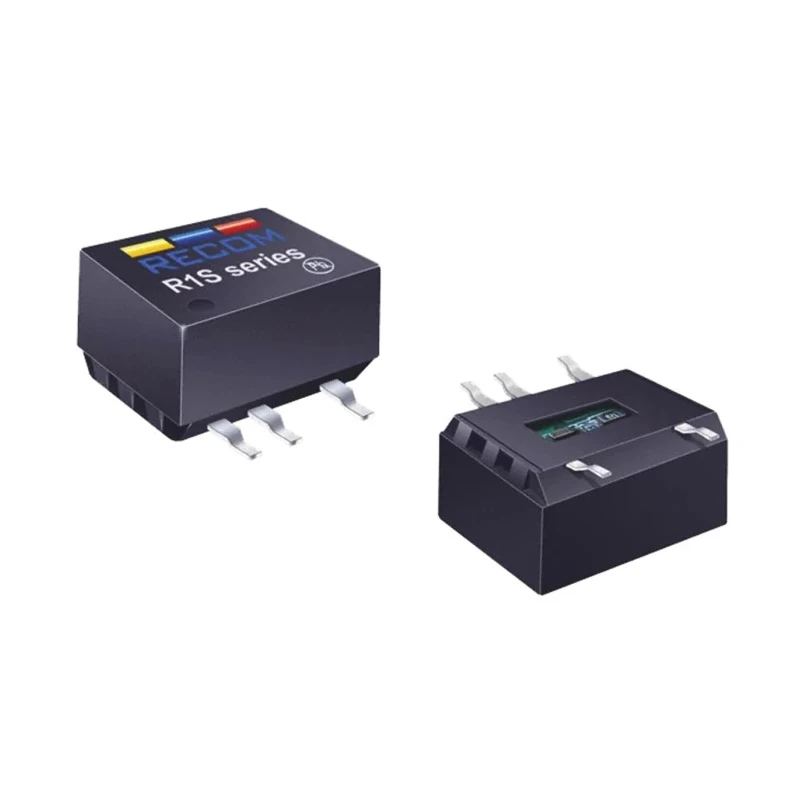

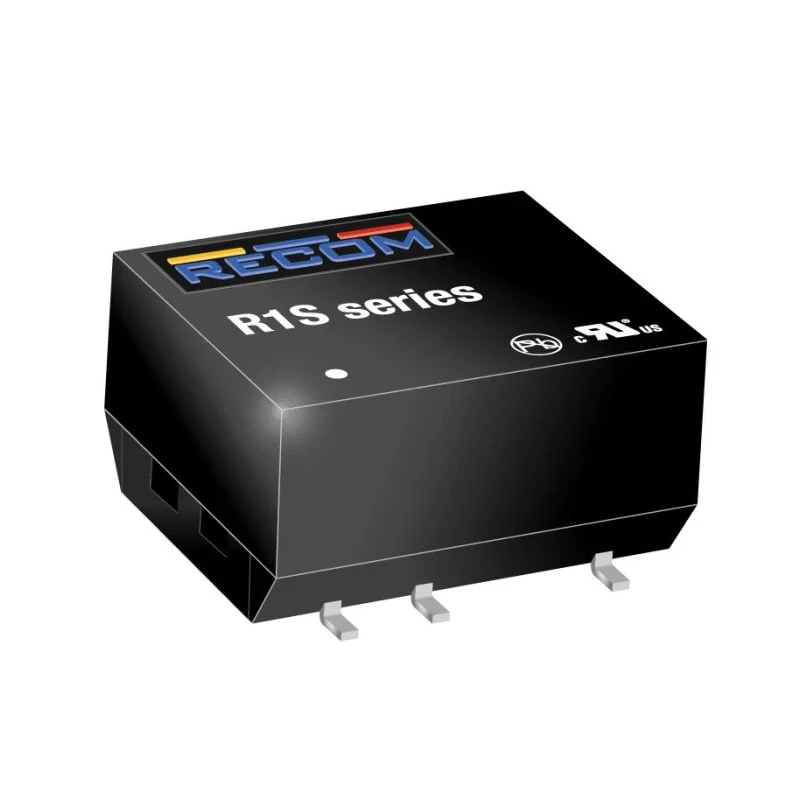

Recom DC/DC Converter 5V dc Output, 200 mA, 5V dc Input, 4.5V Minimum Input, 1 W Power, Surface Mount, 8-Pin R1S-0505/HP

The Recom R1S-0505/HP DC/DC Converter is a reliable and efficient power supply module designed to provide a stable 5V DC output at 200 mA current with a maximum power rating of 1 watt. It is housed in a compact surface mount package featuring 8 pins, making it ideal for circuit board integration.

Operating over a wide temperature range from -40°C to 100°C, this converter is suited for use in demanding industrial and commercial environments. It features a 3kV DC isolation voltage to protect connected devices from short-term high voltage exposure, enhancing electrical safety.

The unit offers continuous short-circuit protection, ensuring longevity and operational security. Its efficiency of approximately 78% means less energy consumption and heat dissipation, making it suitable for low-power applications like medical equipment, renewable energy systems, computing devices, instrumentation, and testing equipment.

With an impressive MTBF of 4,275,000 hours at 25°C, the R1S-0505/HP promises outstanding reliability for long-term deployment. The product's dimensions are compact, measuring 12.75 mm in length and 10.7 mm in width and depth, enabling easy integration into space-constrained designs.

Provides 1 watt maximum output power for low power applications. Surface mount package with 8 pins for easy integration. Wide input voltage range from 4.5V minimum to 5V maximum ensures operational flexibility. Features 3kV DC isolation voltage for equipment protection.

High reliability with a mean time between failures (MTBF) of 4,275,000 hours at 25°C. Compact design measuring 12.75 mm x 10.7 mm x 10.7 mm dimensions. High efficiency rating of 78% for optimal energy performance. Continuous short-circuit protection for enhanced safety.

Suitable for industrial, laboratory, medical, renewable energy, and computing applications.

This converter is an ideal choice for designers requiring a regulated, compact, and efficient DC/DC power source with high safety standards. For more innovative power management and converter devices, browse the Recom range available at EnvMart.
