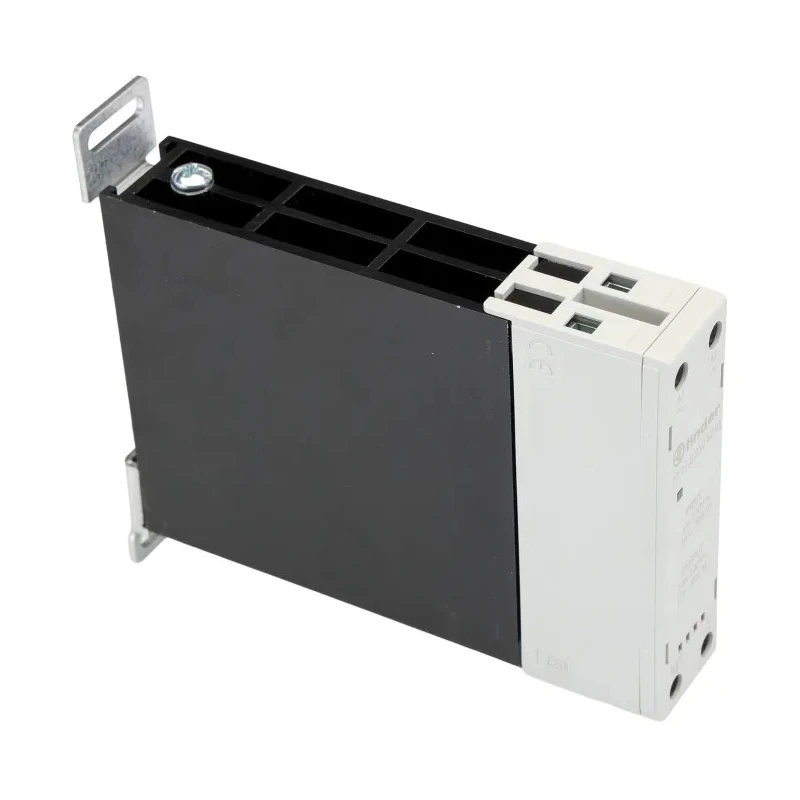

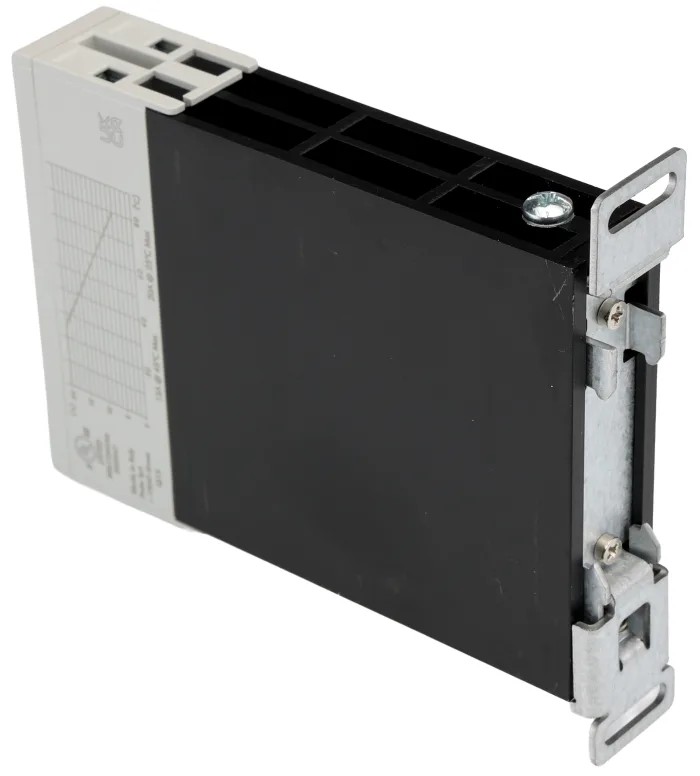

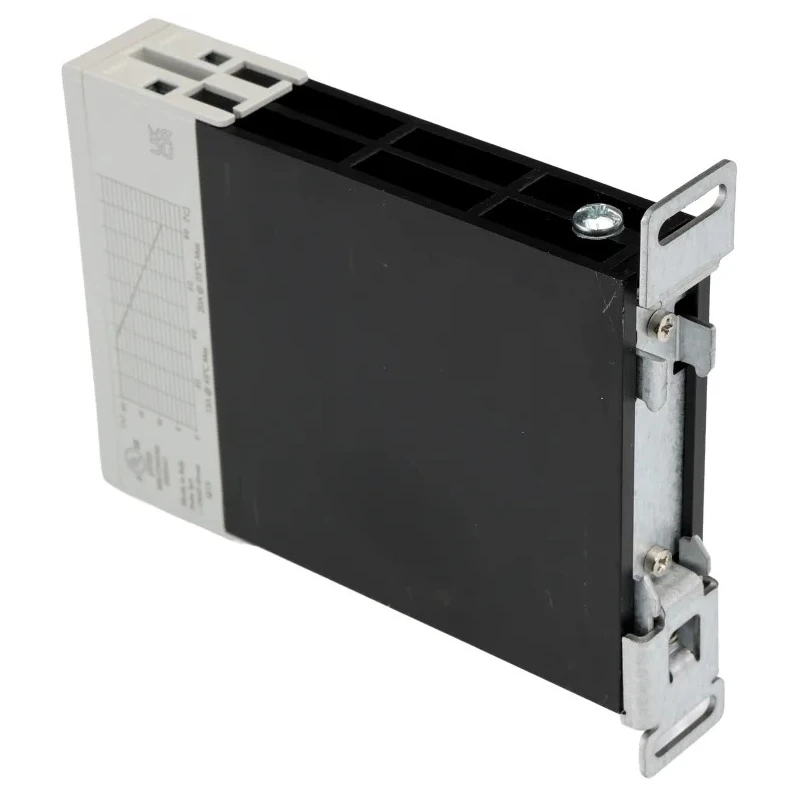

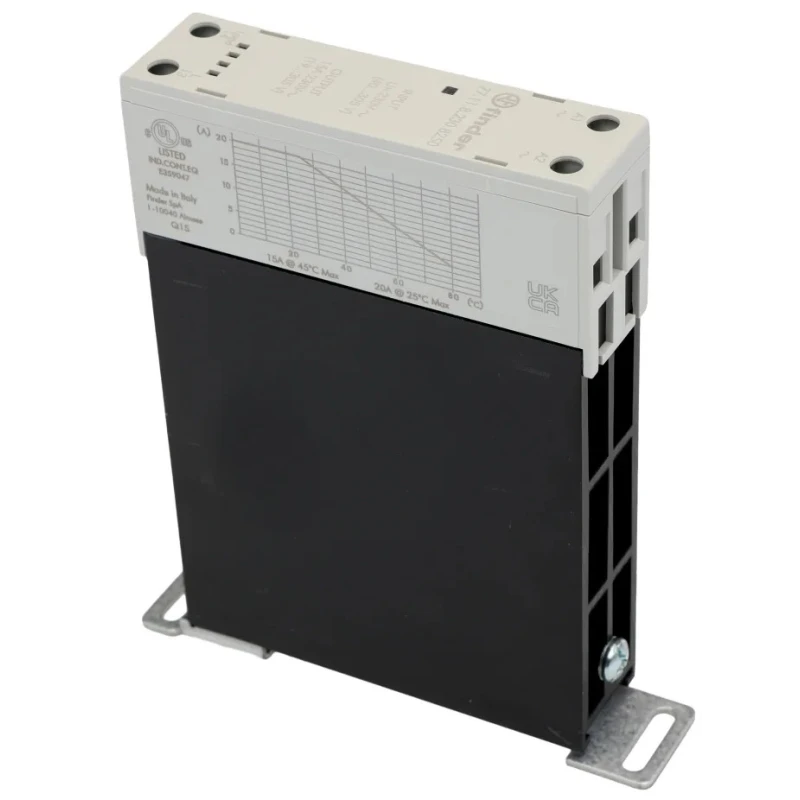

Finder 77 Series Solid State Relay 15 A Load Current 305 V AC Load Voltage DIN Rail Mount 230V AC Control 77.11.8.230.8250
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 83.3mm |
| Length | 22.5mm |
| IP Rating | IP20 |
| Width | 60mm |
| Mount Type | DIN Rail |
| Series | 77 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 15A |
| Standards/Approvals | RoHS, UKCA |
| Maximum Load Voltage | 305V ac |
| Minimum Load Voltage | 19V ac |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 230V ac |
| Off State Leakage Current | 1mA |
Key Features
- Supports a maximum load current of 15 A for robust industrial applications.
- Operates within a load voltage range from 19 V AC to 305 V AC.
- Equipped with zero cross switching for silent and smooth operation.
- Screw terminal connection ensures secure and stable electrical contacts.
- Designed for use in environments from -20°C to +80°C temperature range.
- Compact DIN rail mount design with dimensions 22.5mm x 60mm x 83.3mm.
- Single-pole single-throw (SPST) contact configuration simplifies integration.
- Low off-state leakage current of 1 mA enhances safety and performance.
Product Description
Finder 77.11.8.230.8250 Solid State Relay is a high-performance electrical component designed for industrial automation requiring precise and efficient control. It supports a maximum load current of 15 A and operates up to 305 V AC load voltage, controlled by a voltage of 230 V AC. The relay is optimized for DIN rail installation, providing a compact and secure mounting solution measuring 22.5 mm in length, 60 mm in width, and 83.3 mm in height.
This relay features zero cross switching, significantly reducing electromagnetic interference and ensuring silent operation without contact bounce or arcing. Its screw terminal type guarantees stable electrical connections critical for maintaining circuit integrity under demanding environments.
Engineered to withstand a wide operating temperature range from -20°C to 80°C, the product is suitable for diverse industrial applications including process automation systems, high inrush current machinery, and resistive load controls. The single-pole single-throw (SPST) contact configuration allows straightforward circuit designs.
Low off-state leakage current of only 1 mA further enhances safety and energy efficiency. The relay complies with RoHS and UKCA standards, ensuring environmental and safety assurances crucial for modern industrial and commercial installations. Its Italian origin denotes high manufacturing standards and quality assurance.
Ideal for applications requiring robust and silent switching capabilities, this Finder solid state relay is a reliable choice for enhancing system responsiveness and longevity. Supports a maximum load current of 15 A for robust industrial applications.
Operates within a load voltage range from 19 V AC to 305 V AC. Equipped with zero cross switching for silent and smooth operation. Screw terminal connection ensures secure and stable electrical contacts. Designed for use in environments from -20°C to +80°C temperature range.
Compact DIN rail mount design with dimensions 22.5mm x 60mm x 83.3mm. Single-pole single-throw (SPST) contact configuration simplifies integration. Low off-state leakage current of 1 mA enhances safety and performance. Meets RoHS and UKCA standards for compliance and reliability.
Explore further Solid State Relays and electrical automation components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current supported by this solid state relay is 15 A.
It operates within a load voltage range from 19 V AC to 305 V AC.
This model is equipped with zero cross switching, which reduces electromagnetic interference and ensures silent operation.
The dimensions of this relay are 22.5 mm in length, 60 mm in width, and 83.3 mm in height.
It is designed to operate within a temperature range of -20°C to +80°C.
The relay features a screw terminal connection, ensuring secure and stable electrical contacts.
It has a single-pole single-throw (SPST) contact configuration, simplifying integration into circuits.
The off-state leakage current is low, at only 1 mA, which enhances safety and energy efficiency.
It complies with RoHS and UKCA standards, ensuring environmental and safety assurances.
The minimum control voltage required is 4 V.
The country of origin for this relay is Italy.
It is designed for DIN rail mounting, providing a compact and secure installation solution.
