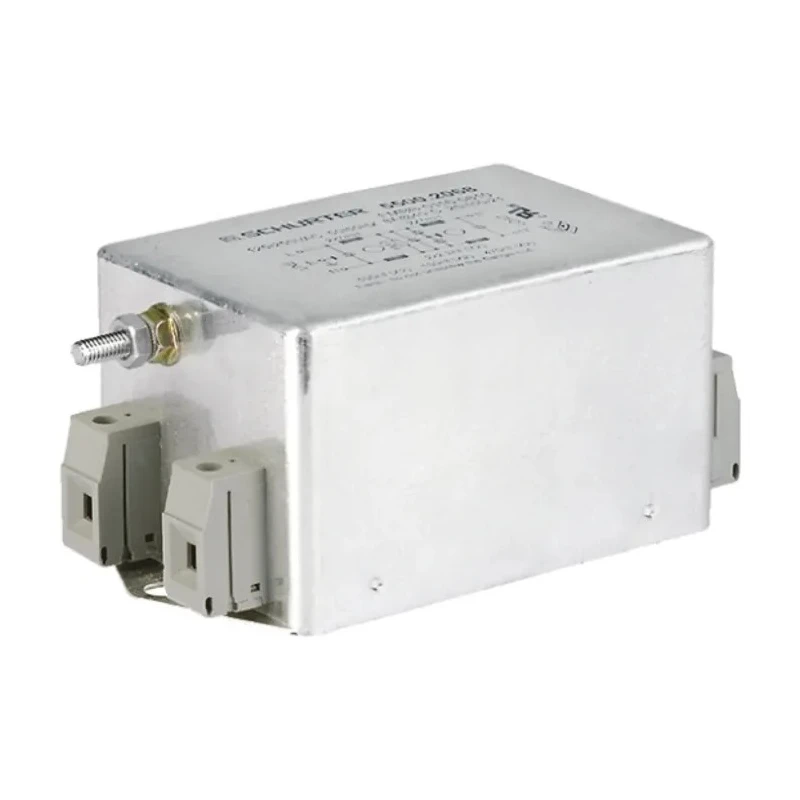

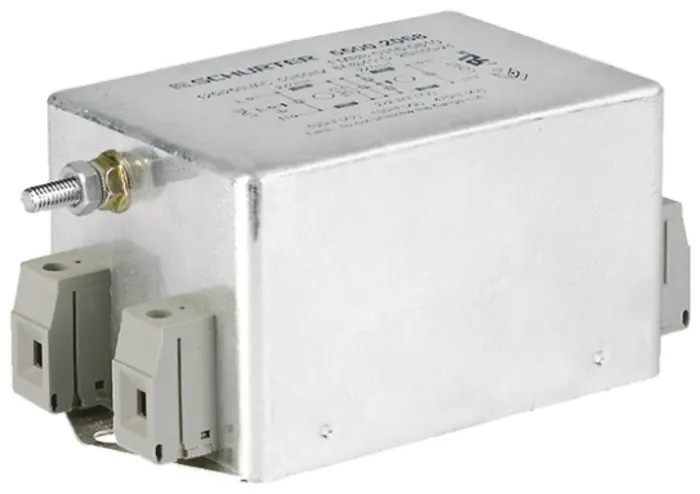

Schurter FMBB Series 8A 250V AC 50Hz/60Hz Screw Mount 1-Phase RFI Filter 5500.2068

Schurter 5500.2068 FMBB Series RFI Filter is a specialized single-phase power line filter designed to provide effective electromagnetic interference (EMI) suppression in demanding industrial and electronic applications. Rated for up to 8 amperes of maximum current and operating at 250V AC with frequencies of 50Hz and 60Hz, this filter is engineered to handle high current environments such as frequency converters and uninterruptible power supplies (UPS).

The filter features a two-stage broadband attenuation mechanism housed within a durable metal chassis mount enclosure, delivering reliable noise suppression particularly in the frequency range of 10 kHz to 30 MHz. Its screw mounting and termination style provide secure electrical and mechanical connections for reliable installation.

Key electrical characteristics include a capacitance of 150 nanofarads, an inductance of 2 millihenries, and a leakage current of 250 microamps, ensuring minimal power loss and efficient operation. The product has a resistance of 1 milliohm and can operate in temperatures ranging from -25°C to 100°C, making it suitable for a broad range of ambient conditions.

Dimensionally compact with a length of 100 mm, height of 47 mm, and depth of 54 mm, this filter fits standard industrial enclosures and panels efficiently. It complies with IEC/EN 60950 standards, verifying its suitability for equipment protection and safety compliance.

This RFI filter effectively mitigates both symmetrical and asymmetrical interference, contributing to enhanced electromagnetic compatibility and system reliability in industrial, manufacturing, and electronic equipment settings.

Features a robust chassis mount metal housing suitable for high current applications. Provides two-stage broadband attenuation to reduce symmetrical and asymmetrical interference. Effective in filtering frequencies from 10kHz up to 30MHz for improved electromagnetic compatibility.

Has capacitance of 150nF and inductance of 2mH ensuring optimal noise suppression. Leakage current rating is 250 microamps with resistance of 1 milliohm for minimal loss. Operating temperature range spans from -25°C to 100°C for versatile deployment.

Screw type termination and mounting facilitate secure electrical connections. Complies with IEC/EN 60950 requirements for equipment qualification. Dimensions are 100mm length, 47mm height, and 54mm depth, fitting standard housings.

Ideal for use in frequency converters, uninterruptible power supplies, and industrial power lines.

This Schurter filter is a prime choice for engineers and technicians seeking robust and reliable solutions for EMI noise reduction in industrial power lines and sensitive electronic equipment. Browse additional Schurter filters and electronic components in the Power Line Filters category at EnvMart.
