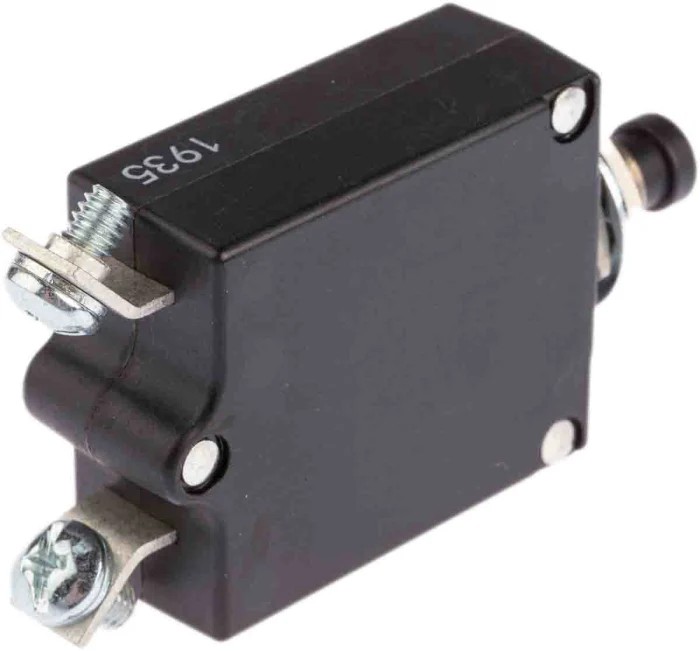

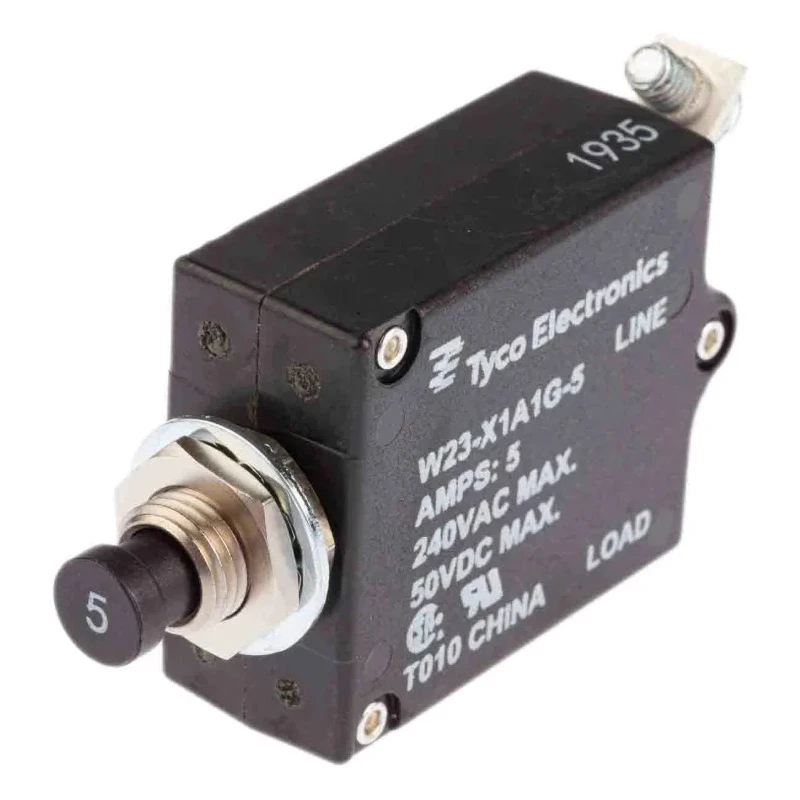

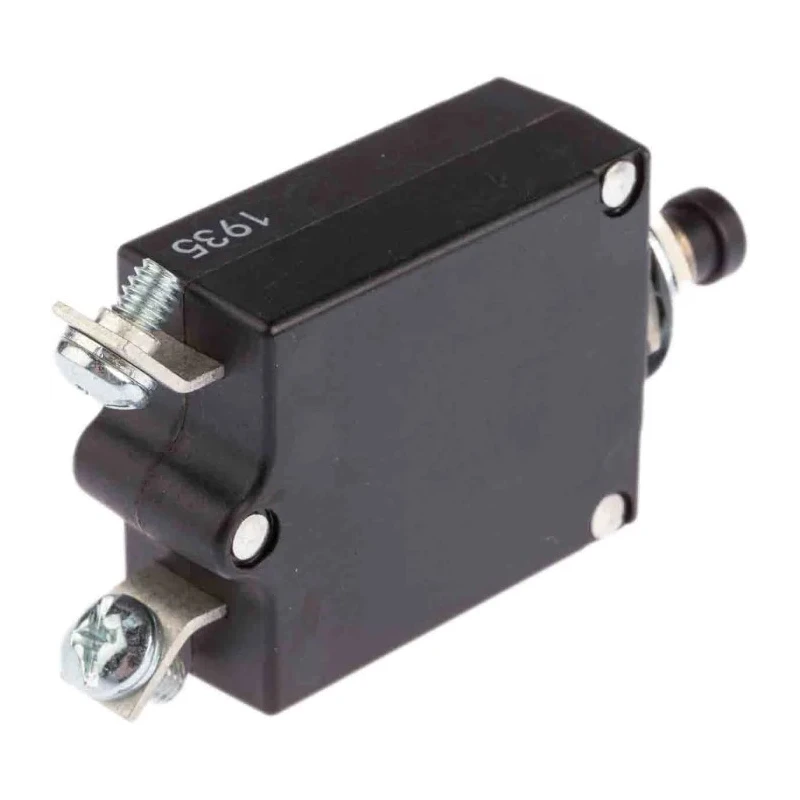

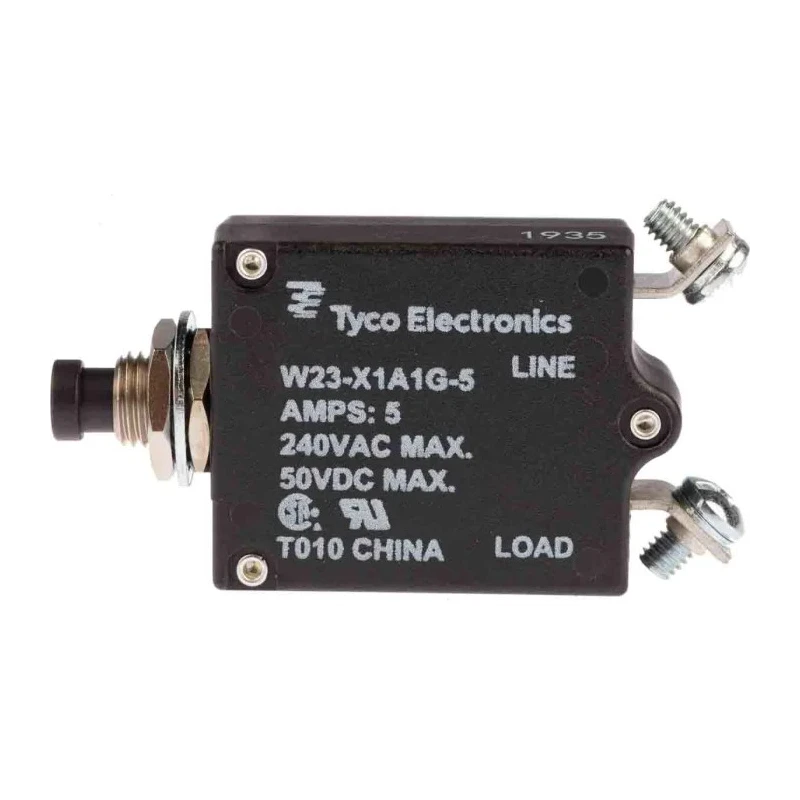

TE Connectivity Thermal Circuit Breaker 5A Current Rating 1-Pole Direct Mount 0.5 to 50 A Range W23-X1A1G-5
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.5 to 50 A |
| Brand | TE Connectivity |
| Model | W23-X1A1G-5 |
| Width | 17.52mm |
| Mount Type | Direct |
| Current Rating | 5A |
| Series | W23 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Will trip at 135% in one hour at 25°C, Trip-free operation |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Designed for thermal tripping with a toggle switch reset actuator.
- Operates in a range of 0.5 to 50 A current for versatile application.
- Rated for 240V AC and 50V DC voltage operation.
- Breaking capacity of 1000A ensures robust fault interruption.
- Trip-free operation activates at 135% current over one hour at 25°C.
- Compact width of 17.52 mm for panel and equipment installation.
- Screw terminal type provides secure electrical connections.
- Medium break time suitable for typical thermal breaker requirements.
Product Description
TE Connectivity W23-X1A1G-5 thermal circuit breaker offers reliable thermal protection for electrical circuits with a direct mount design. This 1-pole breaker has a current rating of 5A and operates efficiently across a range of 0.5 to 50 A, ensuring versatile usage in various industrial and commercial electrical applications.
Capable of handling rated voltages of 240V AC and 50V DC, it delivers a breaking capacity of 1000A, providing robust protection against overcurrents and short circuits. The device features a toggle switch reset actuator for easy manual reset after tripping.
The thermal tripping mechanism activates trip-free operation at 135% current within one hour at 25°C, making it ideal for protecting circuits from prolonged overcurrent conditions. Its medium break time characteristic makes it suitable for typical industrial and automation control systems.
The compact width of 17.52 mm and a mount hole size of 18.8 mm allow for convenient direct mounting in control panels or distribution boards. The screw terminal type ensures secure and reliable electrical connections.
Compliant with RoHS and CE standards, this circuit breaker meets important safety and environmental guidelines. Its design supports installation in a wide range of electrical automation and control systems, offering dependable circuit protection.
Ideal for use in industrial automation, electrical panels, building management systems, and HVAC control circuits, the TE Connectivity W23-X1A1G-5 is a high-quality Thermal Circuit Breaker designed for longevity and safety.
Designed for thermal tripping with a toggle switch reset actuator. Operates in a range of 0.5 to 50 A current for versatile application. Rated for 240V AC and 50V DC voltage operation. Breaking capacity of 1000A ensures robust fault interruption.
Trip-free operation activates at 135% current over one hour at 25°C. Compact width of 17.52 mm for panel and equipment installation. Screw terminal type provides secure electrical connections. Medium break time suitable for typical thermal breaker requirements.
Mount hole size of 18.8 mm for direct mounting applications. Compliant with RoHS and CE standards ensuring quality and safety. Explore the extensive range of circuit protection products and industrial automation components at EnvMart to find the perfect fit for your electrical system.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 5A.
It is rated for operation at 240V AC and 50V DC.
The breaking capacity is 1000A, providing robust protection against overcurrents and short circuits.
The tripping mechanism is thermal, designed to activate at 135% of the rated current within one hour at 25°C.
The mount hole size is 18.8 mm, allowing for direct mounting applications.
It features a toggle switch reset actuator for easy manual reset after tripping.
The width of this model is 17.52 mm, making it compact for panel installation.
It has a screw terminal type, ensuring secure electrical connections.
This circuit breaker is compliant with RoHS and CE standards, ensuring safety and environmental guidelines are met.
It has a medium break time, suitable for typical thermal breaker requirements.
It is suitable for use in industrial automation, electrical panels, building management systems, and HVAC control circuits.
It operates efficiently across a current range of 0.5 to 50 A, providing versatile usage in various applications.
