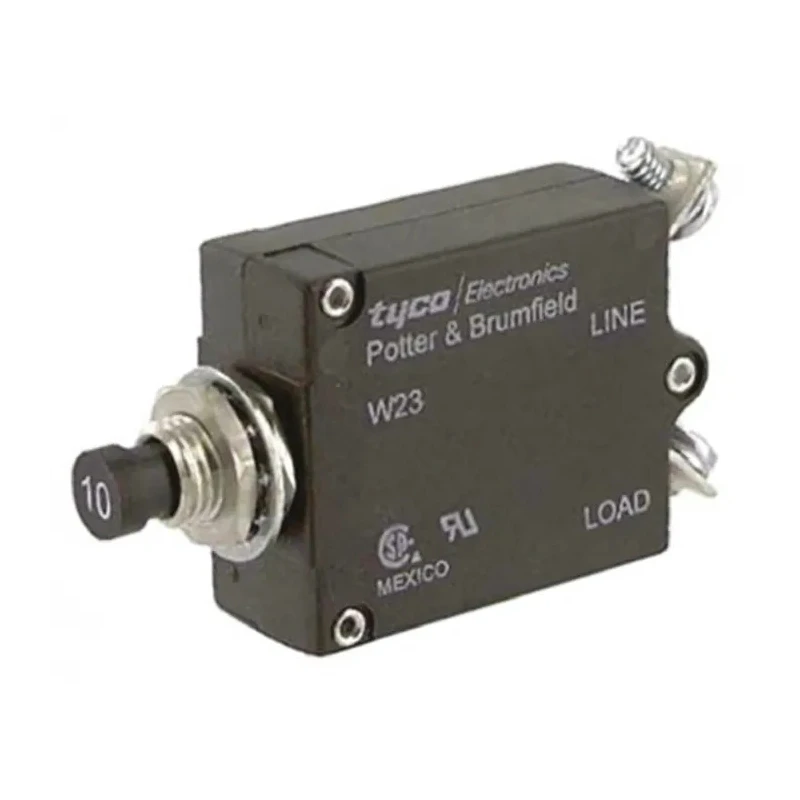

TE Connectivity 0.5 to 50 A Thermal Circuit Breaker 30A Current Rating 1-Pole Direct Mount W23-X1A1G-30

TE Connectivity W23-X1A1G-30 thermal circuit breaker provides reliable circuit protection within an adjustable range from 0.5 to 50 A, featuring a fixed 30A current rating and single-pole direct mount design. It is engineered for industrial and electrical automation applications where precise thermal overload protection is critical.

The device incorporates a thermal tripping mechanism, which activates the circuit break at 135% of rated current within one hour, preventing damage due to prolonged overload conditions. The toggle switch reset actuator allows for easy manual resetting after tripping, improving operational convenience.

Rated for 240V AC and 50V DC systems, this circuit breaker offers versatile usage across various electrical panels and industrial machinery. The robust breaking capacity of 1000A with medium break time makes it suitable for a broad range of load protection scenarios.

Designed for compact panel integration, the breaker measures 17.52 mm in width and 2.035 inches in depth, facilitating installation in tight spaces. It features screw terminals and a 3.33 mm mounting hole size, ensuring secure and reliable attachment during mounting operations.

Safety and environmental compliance is assured through CE and RoHS certifications, making it a dependable choice for modern electrical control systems. The trip-free operation design guarantees that the breaker cannot be reset while in a tripped state, enhancing safety during fault conditions.

Thermal tripping mechanism with precise current overload detection. Toggle switch reset actuator for easy manual reset. Rated AC voltage of 240V and DC voltage of 50V. Breaking capacity of 1000A suitable for medium break times.

Compact dimensions with 17.52 mm width and 2.035 inch depth. Screw terminal type and 3.33 mm mounting hole size for secure fitting. Compliance with CE and RoHS standards. One-pole design for single circuit protection applications.

Trip-free operation enhances circuit safety.

This TE Connectivity W23 Series Thermal Circuit Breaker is ideal for industrial, electrical automation, manufacturing, and laboratory control panels requiring precise and reliable circuit overload protection. Browse related circuit breakers and accessories in the Electronics & Electricals category at EnvMart.
