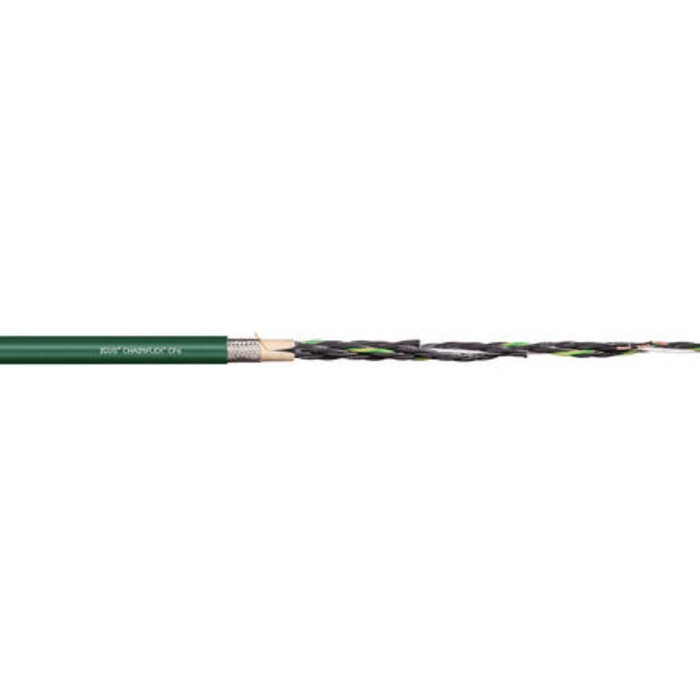

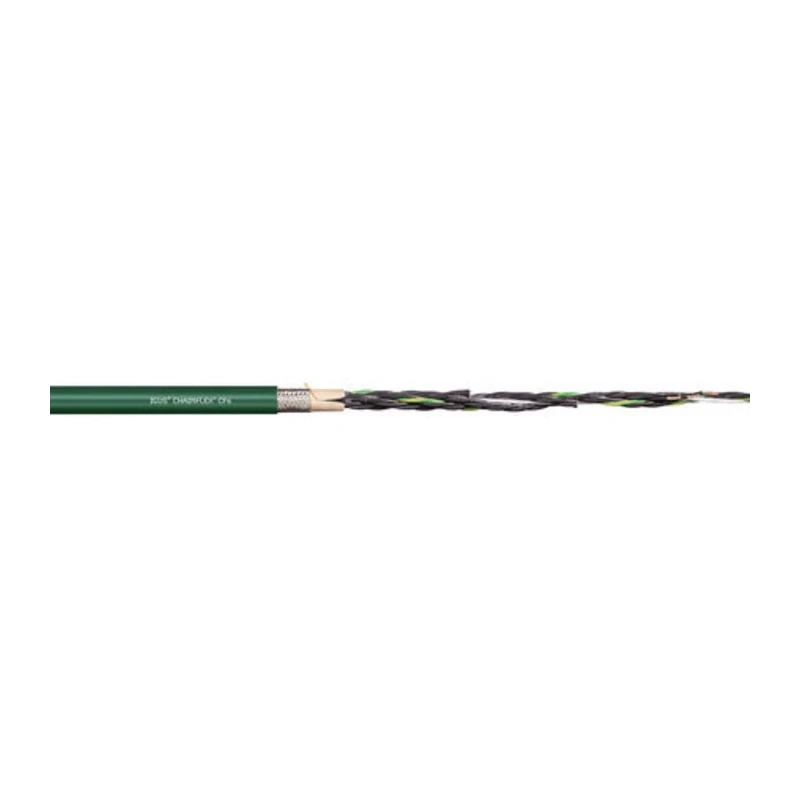

Igus Chainflex PVC Control Cable 7 Cores 0.5mm² 20 AWG Screened Armoured 25m Green Polyvinyl Chloride Sheath CF6.05.07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF6.05.07 |
| Cable Length | 25m |
| Series | chainflex CF6 |
| Outside diameter | 10mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, EN |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- The cable contains 7 cores with stranded bare copper conductors for excellent conductivity.
- It features a green polyvinyl chloride jacket that is flame retardant and resistant to oils.
- Suitable for both indoor and outdoor use, it operates within temperature ranges from -5°C to 70°C.
- Its outer diameter is 10mm, with a cable length of 25 meters.
- The cable is rated for voltages of 300 and 500V and meets CE and EN standards.
- Designed with a screened and armoured construction for enhanced durability and interference protection.
- Complies with stringent flame retardant fire behaviour for safety in industrial environments.
Product Description
Igus CF6.05.07 Chainflex PVC Control Cable is engineered for industrial and automation applications requiring flexible, reliable power and control transmission. The cable features 7 cores of fine-wire stranded bare copper conductors, which ensure excellent electrical conductivity and flexibility for dynamic motion applications.
The cable jacket is made of green polyvinyl chloride, providing resistance against oils, mechanical impacts, and environmental factors. Its screened and armoured design enhances protection against electrical interference and mechanical stresses, making it suitable for use in demanding industrial settings such as storage and retrieval systems, high-bay warehouses, packaging machines, and indoor cranes.
This control cable supports voltages up to 500V and operates reliably in temperature ranges from -5°C to 70°C. The flame retardant properties of the jacket ensure compliance with fire safety requirements, critical for industrial safety standards. An outer diameter of 10mm and cable length of 25 meters offer convenient installation and usage flexibility.
Key features include a tear strip on the outer jacket that allows easier stripping during installation and a low adhesion, oil-resistant PVC mixture adapted to withstand the mechanical demands of energy chains. The cable is manufactured in Germany and conforms to CE and EN standards, assuring high quality and durability.
This product is ideal for industrial, automation, and electrical power applications requiring a durable, reliable Control Cable with excellent performance in challenging conditions.
The cable contains 7 cores with stranded bare copper conductors for superior electrical performance. Green polyvinyl chloride jacket offers oil resistance and flame retardant protection. Screened and armoured construction provides mechanical and interference protection.
Rated for operating voltages of 300 and 500V and temperature range from -5°C to 70°C. Compliant with CE and EN standards for quality assurance. 25 meters cable length with 10mm outside diameter for flexible installation.
Designed for industrial automation, storage systems, packaging, and crane applications. Explore a wide range of industrial and automation cables at EnvMart to find solutions that meet your technical specifications and application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for voltages of 300V and 500V.
The maximum operating temperature for this cable is 70°C.
It contains 7 cores of stranded bare copper conductors.
The outer diameter of this cable is 10mm.
The cable features a jacket made of green polyvinyl chloride, which is flame retardant and resistant to oils.
Yes, it is suitable for both indoor and outdoor use due to its durable construction.
The cable operates within a temperature range from -5°C to 70°C.
Yes, it complies with CE and EN standards, ensuring quality and safety.
The length of this cable is 25 meters.
It features a screened and armoured construction for enhanced durability and interference protection.
The conductors are made of stranded bare copper, providing excellent conductivity.
It is designed for industrial automation applications, including storage systems, packaging machines, and cranes.
