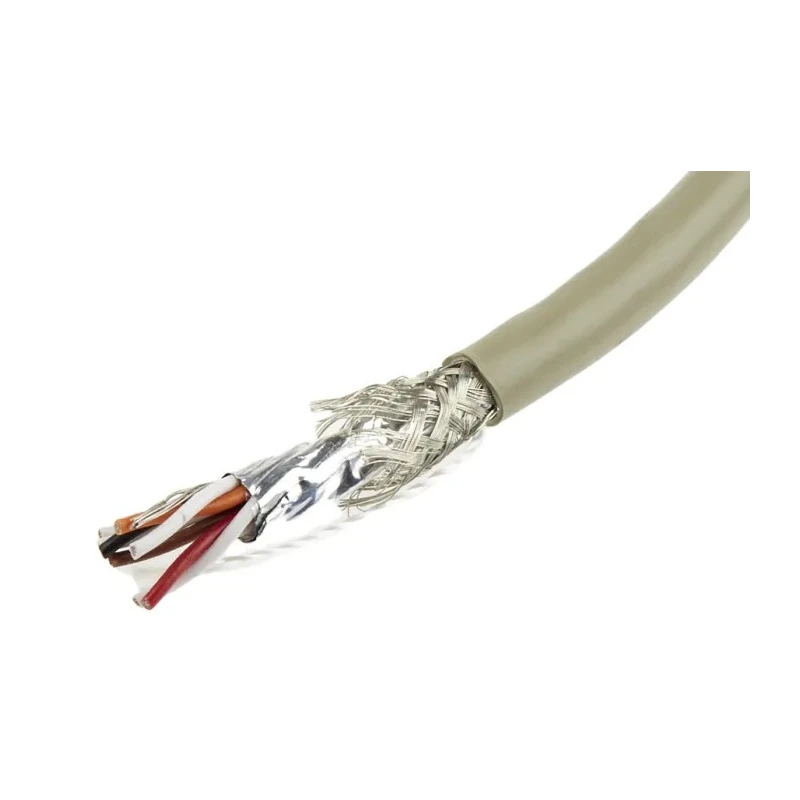

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.23 mm² 50 m Grey Polyvinyl Chloride Jacket B963044 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963044 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.86mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.270 inch (6.86 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 4 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
| Pairs | 4, White + Black, White + Brown, White + Red, White + Orange |
Key Features
- Constructed with tin copper wire conductors for reliable electrical performance.
- Grey polyvinyl chloride (PVC) outer jacket providing flame retardant and abrasion resistance.
- Operating temperature range from -30°C to 105°C ensures durability in varied environments.
- Compliant with CE, CSA, and UL certifications for safety and quality assurance.
- Nominal outside diameter of 6.86 mm with a 0.81 mm jacket thickness for flexible installation in tight spaces.
- Stranded conductors (7 strands of 32 AWG) increase cable flexibility and mechanical strength.
- Ideal for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics applications.
Product Description
Alpha Wire B963044 GE321 Pro-Tekt Series Data Cable is a high-performance electrical cable designed for demanding industrial and commercial applications. This cable features 4 pairs and 8 cores, each conductor having a cross-sectional area of 0.23 mm². The cable length is 50 meters, making it suitable for substantial installations requiring multiple data pathways.
Manufactured with tin copper wire conductors, this Data Cable offers excellent electrical conductivity combined with durability. The grey outer jacket is made of premium-grade polyvinyl chloride (PVC) which is flame retardant, UV resistant, and provides good abrasion protection. This ensures reliable operation across an operating temperature range from -30°C up to +105°C, making it suited to a variety of environments including industrial automation, aerospace, medical devices, and petrochemical industries.
The cable has a nominal diameter of 6.86 mm with a 0.81 mm thick jacket, which provides exceptional flexibility and ease of routing through small spaces. The conductors are stranded with 7 strands of 32 AWG wire to improve flexibility and mechanical strength. Color-coded pairs (White + Black, White + Brown, White + Red, White + Orange) allow for easy identification during installation and maintenance.
The Pro-Tekt series complies with international standards and certifications including CE, CSA, and UL, ensuring it meets stringent quality and safety requirements. This cable is part of the Alpha Wire European cable system, known for combining robust mechanical design with excellent electrical properties.
Constructed with stranded tin copper wire for enhanced flexibility. Grey PVC sheath resistant to oil, abrasion, and UV exposure. Flame retardant jacket meets multiple international standards. Operates reliably from -30°C to +105°C for versatile applications.
Color-coded pairs simplify installation in complex systems. Designed for power equipment and data transmission in industrial settings. Suitable for medical, aerospace, petrochemical, and commercial electronics use.
Choose this Alpha Wire Pro-Tekt Series cable for dependable, flexible data transmission in harsh environments. Browse more high-quality cables and wires in the Electronics & Electricals category at EnvMart to find the right solution for your industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 105°C.
The nominal outside diameter of this model is 6.86 mm.
This cable has a total of 8 cores.
The voltage rating for this data cable is 300V.
The conductors of this cable are made from tin copper wire.
This model complies with CE, CSA, and UL certifications.
The length of this data cable is 50 meters.
The jacket material of this cable is polyvinyl chloride (PVC).
This cable features 4 pairs of conductors.
The jacket thickness of this model is 0.81 mm.
The color-coded pairs in this cable are White + Black, White + Brown, White + Red, and White + Orange.
This data cable is suitable for applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
