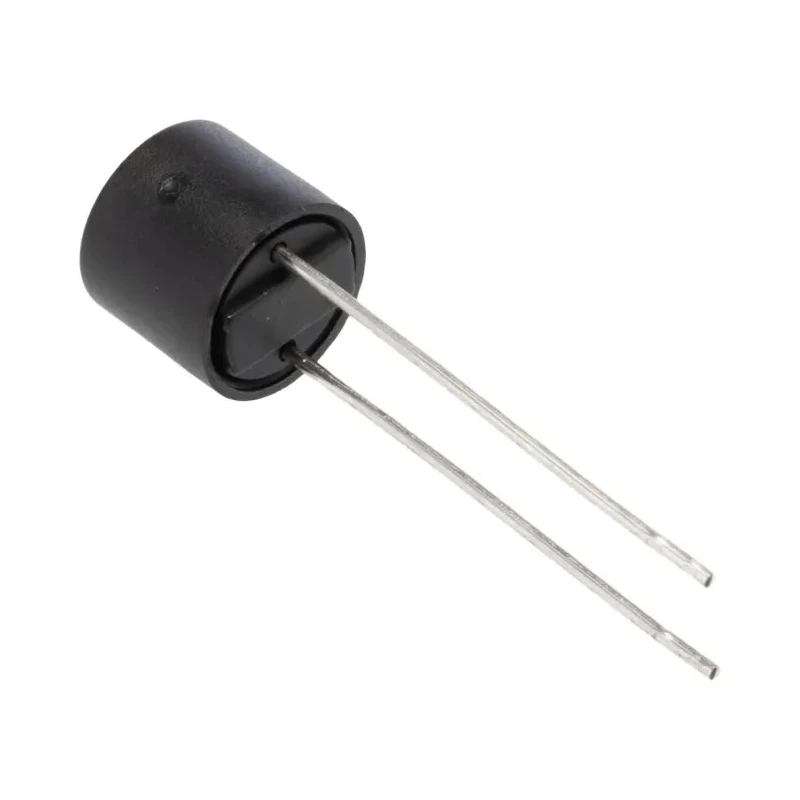

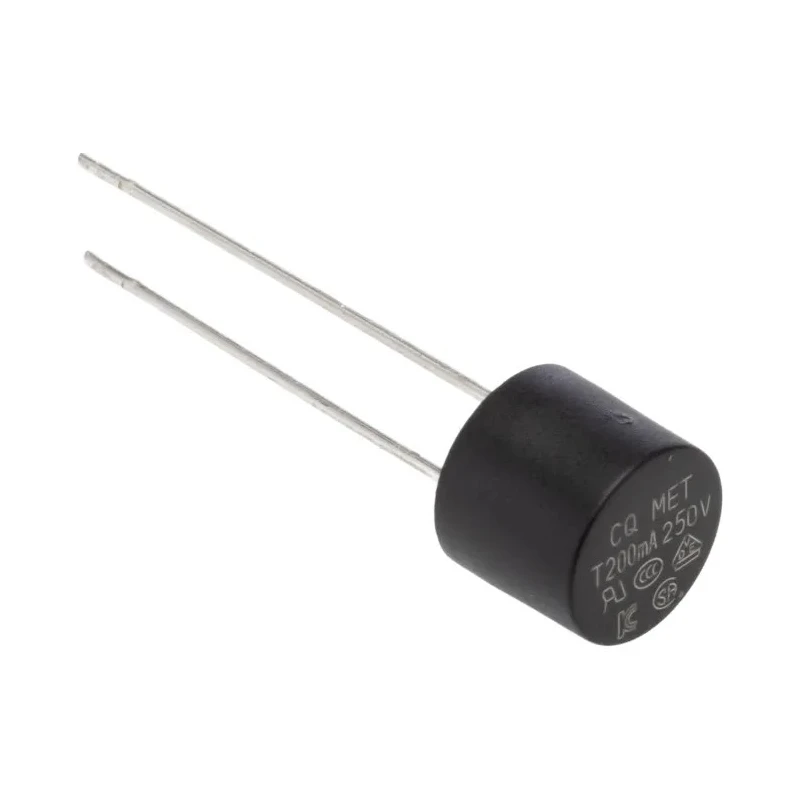

RS PRO Non-Resettable Fuse, Radial Lead Orientation, 200mA Current Rating, 250V Voltage, Time Delay, Thermoplastic 767-5187

RS PRO 767-5187 Non-Resettable Fuse is designed as a reliable circuit protection device with a radial lead orientation and a current rating of 200mA at 250V voltage. It employs a time delay fuse characteristic, making it suitable for applications requiring temporary inrush current tolerance.

The fuse features a thermoplastic polyamide body that offers excellent insulation and mechanical strength. Its compact form factor includes a body length of 5.08mm, lead length of 22mm, height of 7.7mm, and a diameter of 8.35mm, facilitating easy integration into electrical assemblies.

Operating across a wide temperature range from -55°C minimum to 125°C maximum, this fuse maintains performance in harsh environments. It has a breaking capacity of 35A, providing robust safety during fault conditions.

Certified under RoHS and CSA standards, it complies with environmental and safety regulations. The RS PRO series fuses are widely used in industrial, laboratory, manufacturing, and electrical automation sectors for protecting sensitive electrical components.

Radial lead orientation enhances mounting convenience. Time delay fuse characteristic allows for transient current tolerance. Durable thermoplastic body ensures long service life. Compact design supports integration into tight circuits.

Wide operating temperature range expands application scope. High breaking capacity for enhanced protection. Complies with RoHS and CSA standards for safety and environment.

This RS PRO Non-Resettable Fuse serves essential roles in circuit protection within electronics, electrical equipment, and automation fields. For users seeking dependable fuse components, this product meets stringent quality and performance criteria. Explore more RS PRO components in the Electronics & Electricals category on EnvMart.
