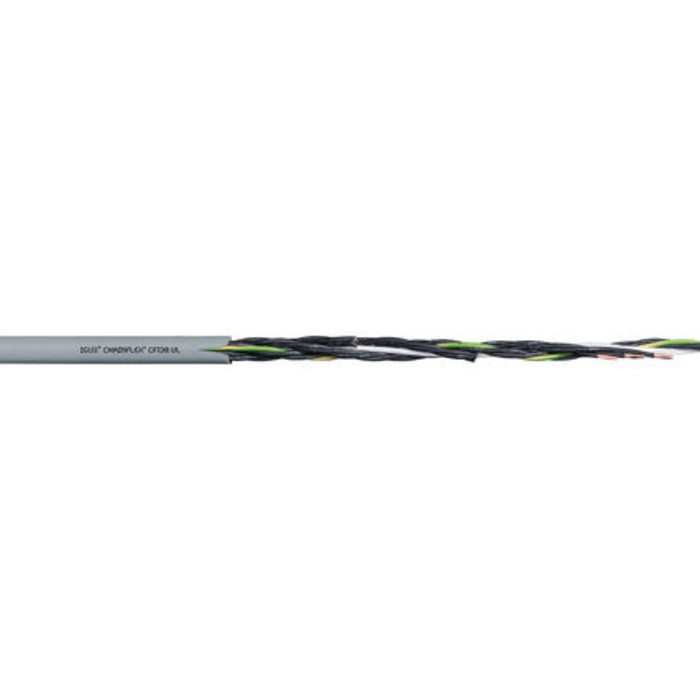

Cavotec Chainflex CF130.UL Control Cable, 12 Cores, 1.5mm² (15 AWG), Unscreened, 25 m Length, Grey CF130.15.12.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Cavotec |
| Model | CF130.15.12.UL |
| Cable Length | 25m |
| Series | Chainflex CF130.UL |
| Outside diameter | 13mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
| Cavotec Actuator/Sensor Cable, 12 Cores, 1.5 mm², Screened, Grey PVC SheathBrand | Cavotec |
Key Features
- The cable is unscreened and made with bare copper stranded conductors for optimal electrical conductivity.
- It has a grey thermoplastic elastomer jacket that is flame retardant and torsion resistant.
- The 13mm outside diameter cable supports a voltage rating of 300V and withstands temperatures from -5°C to 70°C.
- Its silicon-free construction resists oil influence and suits indoor and freely suspended travel applications up to 50 m.
- The cable complies with IEC 60332-1-2, CEI 20-35, FT1, VW1 flame retardant standards and meets CE, EN approvals.
- The low-adhesion PVC outer sheath is adapted for energy chain systems following DIN VDE 0282 part 10.
- Designed and manufactured in Germany, this control cable is suitable for automation, machinery, and industrial power control use.
Product Description
Igus CF130.15.12.UL Chainflex control cable is a professional-grade industrial cable designed to provide reliable control and power transmission in demanding applications. It features 12 conductor cores each with 1.5mm² cross-sectional area (15 AWG) of stranded bare copper wire, ensuring excellent electrical performance.
The cable's jacket is composed of a grey thermoplastic elastomer compound offering both flexibility and resistance to environmental factors. It is unscreened and armoured, suitable for medium load use especially in indoor settings and freely suspended travel distances up to 50 meters. The flame retardant sheath complies with industry standards IEC 60332-1-2, CEI 20-35, FT1, and VW1, ensuring safety under fire conditions.
Operating voltage is rated at 300 V, and the cable tolerates minimum operating temperatures down to -5°C and maximum up to 70°C. The low-adhesion PVC sheath is specially adapted for energy chain requirements as per DIN VDE 0282 Part 10, making it ideal for dynamic energy chain applications and automation setups.
Manufactured in Germany with strict quality controls, this control cable meets CE and EN standards, assuring compliance and longevity in use cases across industrial automation, electrical manufacturing, construction machinery, and process control environments.
The cable is silicon-free, preventing oil-related degradation over time. Flexible stranded conductor design allows for reliable torsion resistance in dynamic applications. The exterior sheath is grey thermoplastic elastomer, designed to reduce adhesion and wear.
Flame retardant properties align with major safety certifications for industrial cables. Robust construction offers excellent performance in automation, HVAC, manufacturing, and laboratory settings. Explore the full range of Control Cables and related industrial cables optimized for performance and safety at EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 300V.
The maximum operating temperature for the CF130.15.12.UL is 70°C.
This control cable features 12 cores.
The outside diameter of the cable is 13mm.
The cable is made with bare copper stranded conductors for optimal electrical conductivity.
The minimum operating temperature for the CF130.15.12.UL is -5°C.
The length of the Cavotec CF130.15.12.UL control cable is 25 meters.
This model is unscreened.
The jacket material is a grey thermoplastic elastomer.
The cable complies with IEC 60332-1-2, CEI 20-35, FT1, and VW1 flame retardant standards.
This control cable is suitable for automation, machinery, and industrial power control applications.
This control cable is manufactured in Germany.
