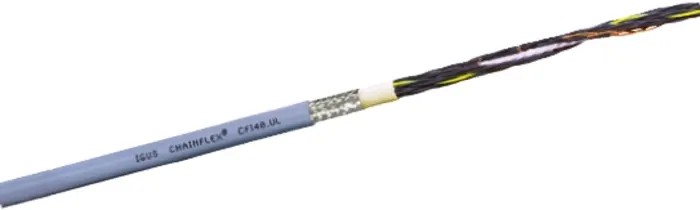

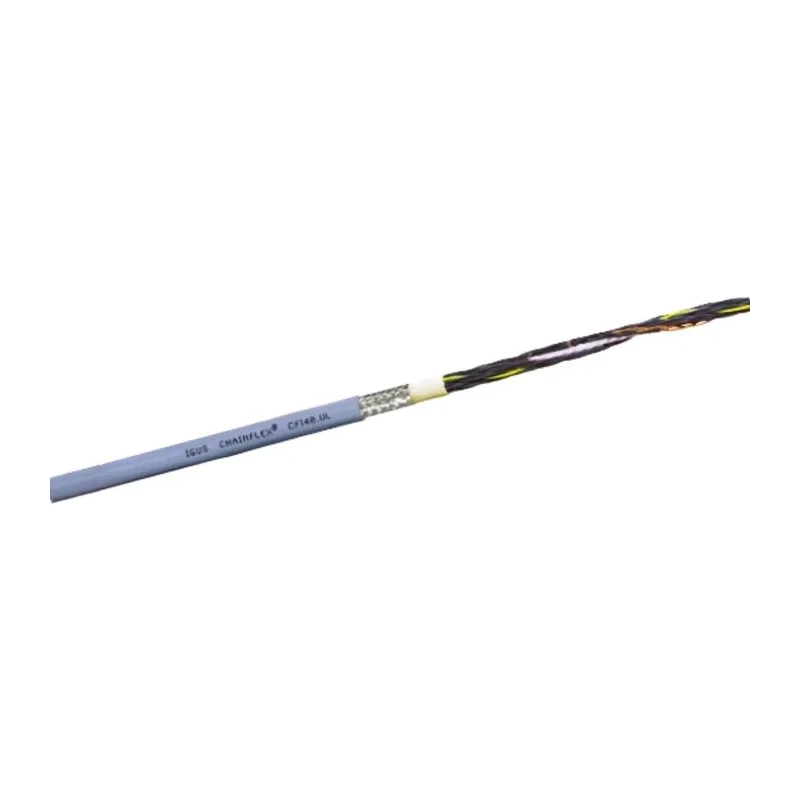

Igus Chainflex CF140.UL Screened Control Cable, 4 Cores, 1.5mm² (15 AWG), 25 m Length, Armoured Thermoplastic CF140.15.04.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.15.04.UL |
| Cable Length | 25m |
| Series | Chainflex CF140.UL |
| Outside diameter | 10mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- Constructed with bare copper fine-wire stranded conductors for optimal conductivity.
- Features thermoplastic elastomer grey sheath providing flame retardant and oil-resistant properties.
- Armoured and screened cable suitable for medium load requirements and freely suspended travel distances up to 50 m.
- Complies with IEC 60332-1-2, CEI 20-35, FT1, VW1-1 flame retardant standards.
- Stranded conductor type with 15 AWG (American Wire Gauge) size and 1.5 mm² cross-section.
- Ideal for use in industrial, automation, electrical power, and control environments.
Product Description
Igus CF140.15.04.UL is a high-performance screened control cable featuring 4 cores with 1.5mm² conductor cross-section and a 15 AWG size.
This cable is designed for industrial automation and control applications requiring medium load capacity and protection against mechanical stress. It features a durable thermoplastic elastomer grey sheath that provides excellent resistance to oil and flame retardance in compliance with IEC 60332-1-2 and other standards.
The cable is armoured and screened, making it suitable for freely suspended travel distances up to 50 meters and gliding applications, ensuring signal integrity and protection from electromagnetic interference.
With a voltage rating of 300/500 V and an operating temperature range from -5°C to 70°C, it operates reliably in demanding environments. Constructed with bare copper fine-wire stranded conductors following EN 60228, it assures flexibility and strong conductivity.
This product is manufactured in Germany ensuring high-quality standards. Constructed with bare copper fine-wire stranded conductors for optimal conductivity. Features thermoplastic elastomer grey sheath providing flame retardant and oil-resistant properties.
Armoured and screened cable suitable for medium load requirements and freely suspended travel distances up to 50 m. Voltage rating of 300/500 V, designed for temperature ranges from -5 to 70°C. Complies with IEC 60332-1-2, CEI 20-35, FT1, VW1-1 flame retardant standards.
Ideal for use in industrial, automation, electrical power, and control environments.
This control cable is well suited for electrical power and industrial control systems, automation setups, and other industrial applications requiring reliable and durable cable solutions.
Explore more Control Cables and related electrical products available at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 300/500 V.
The maximum operating temperature for this model is 70°C.
This cable features 4 cores.
The conductor material used in this cable is bare copper.
The cross-sectional area of the conductors is 1.5 mm², which corresponds to 15 AWG.
The length of this control cable is 25 meters.
This cable has a thermoplastic elastomer grey sheath that provides flame retardant and oil-resistant properties.
This model complies with IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 flame retardant standards.
The outside diameter of the cable is 10 mm.
Yes, this cable is suitable for freely suspended travel distances up to 50 meters.
The minimum operating temperature for this cable is -5°C.
This model is classified as a screened control cable, designed for medium load requirements.
