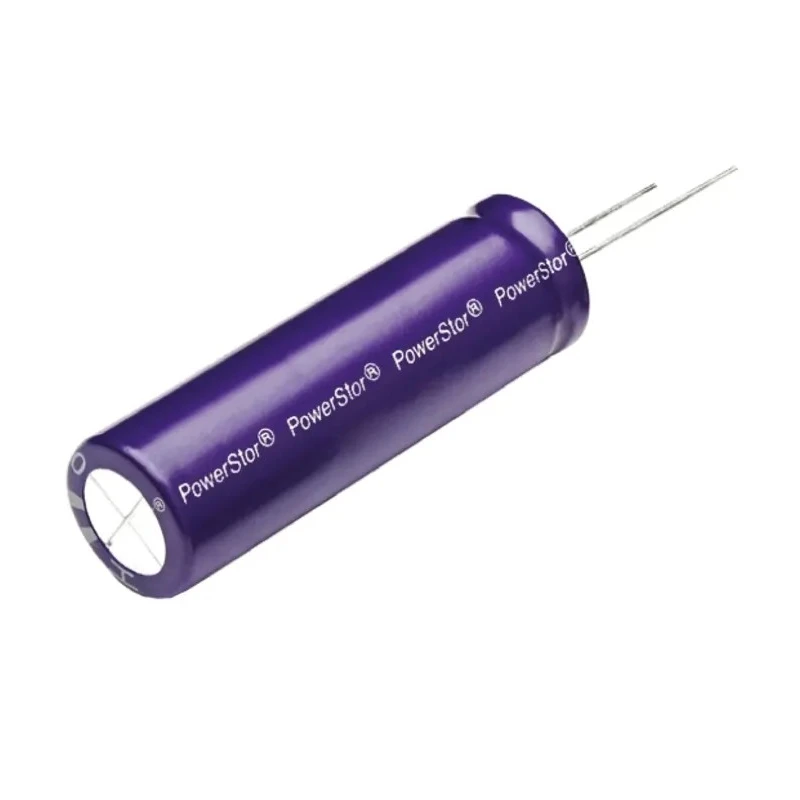

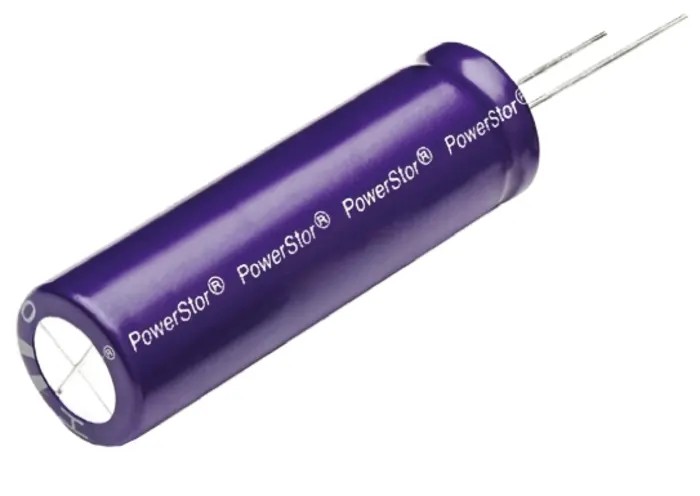

Eaton 5 F Electric Double Layer Supercapacitor 2.5V dc Cylindrical Through Hole Mount HB1020-2R5505-R

Eaton HB1020-2R5505-R is a high-performance 5 F electric double layer supercapacitor designed for demanding electronic applications requiring reliable energy storage. With a nominal voltage of 2.5V DC and a generous capacitance of 5 Farads, this supercapacitor leverages electrochemical double layer capacitor (EDLC) technology to provide ultra-high energy density in a compact cylindrical package.

The device features a through hole mount type with a 0.6mm lead diameter and 5mm lead pitch, making it compatible with standard circuit board assemblies requiring robust mechanical connection and long-term stability. Its cylindrical shape measures 10.5mm in diameter and 22.3mm in height, enabling efficient space utilization in electronic circuits.

This model exhibits a low equivalent series resistance (ESR) of 100 milliohms and a leakage current of only 11 microamperes, ensuring high power delivery and energy efficiency in pulse discharge and backup power applications. It is rated for operation over a wide temperature range from -25°C to 70°C, supporting use in diverse environments including industrial, telecommunications, and automotive electronics where reliable performance is essential.

The capacitor has positive polarity with solder terminals to provide secure electrical connections and ease of assembly during manufacturing. Its expected lifetime is approximately 1000 hours, typical for this category of supercapacitor, reflecting stable performance over extended use.

Compliant with RoHS and UL standards, this Eaton Supercap HB series component meets industry safety and environmental requirements for electronic components. Capacitance of 5 Farads for high energy storage capabilities. Voltage rating of 2.5V DC suitable for various electronic circuits.

Through hole mount type with reliable solder terminals. Cylindrical case with 10.5mm diameter and 22.3mm height. Low ESR of 100 milliohms enabling efficient power delivery. Leakage current of 11 microamperes minimizes energy loss.

Operating temperature range from -25°C to 70°C. Positive polarity ensures proper connection orientation. Lifespan of approximately 1000 hours under normal operating conditions. RoHS and UL compliant for safety and environmental standards.

This Eaton supercapacitor is well suited for industrial, telecommunications, consumer electronics, and energy storage applications requiring high capacitance and reliable performance. It can be effectively integrated into circuits for power backup, load leveling, or energy harvesting.
