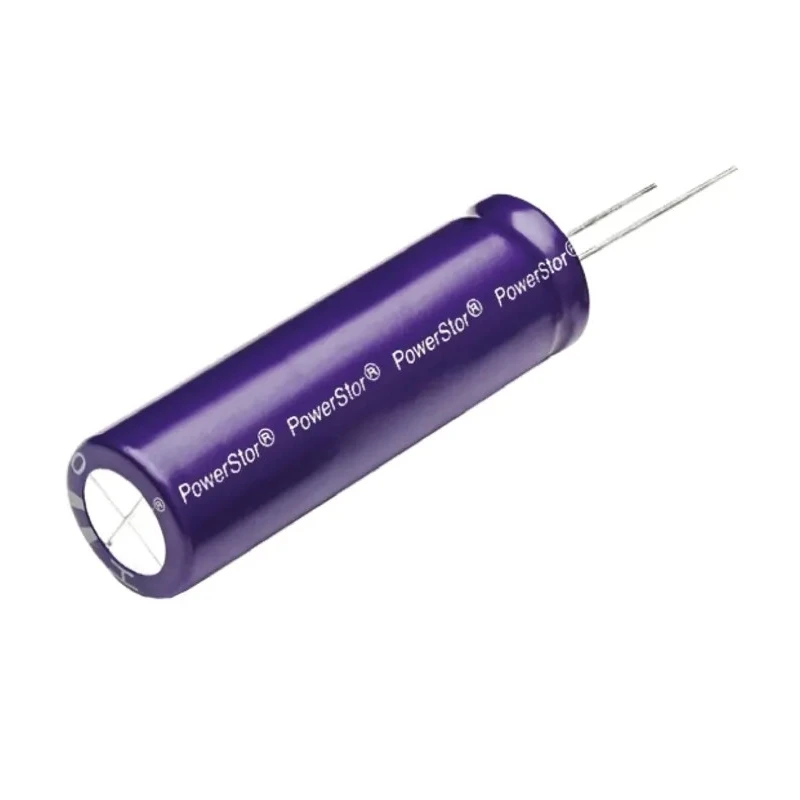

Eaton 3F Electric Double Layer Supercapacitor 2.5V DC, Through Hole Mount HB0820-2R5305-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.5V dc |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 21mm |
| Model | HB0820-2R5305-R |
| Depth | 21mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | Supercap HB |
| Maximum Operating Temperature | 70°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 3F |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Leakage Current | 7μA |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Lead Pitch | 3.5mm |
| Lead Diameter | 0.5mm |
| Equivalent Series Resistance ESR | 160mΩ |
| Capacitor Family | Electric Double Layer |
Key Features
- This supercapacitor utilizes electric double layer capacitor (EDLC) design for ultra-high capacitance in compact form.
- It operates with a low equivalent series resistance (ESR) of 160 milliohms ensuring high power density.
- Capacitance tolerance ranges from -10 to 30%, providing reliable performance within specified limits.
- The device is rated for operating temperatures from -25°C to 70°C and offers a lifetime of 1000 hours.
- Designed with solder terminal type and 0.5mm lead diameter for through hole PCB mounting.
- Complies with UL and RoHS standards ensuring safety and environmental compliance.
- Pin count is 2 with a lead pitch of 3.5mm and overall diameter of 8.5mm.
- This supercapacitor series is noted for low leakage current of 7 microamperes.
Product Description
Eaton HB0820-2R5305-R is a high-performance 3F electric double layer supercapacitor rated at 2.5V DC designed for through hole mounting on PCBs. It offers ultra-high capacitance with a compact 21mm height and 21mm depth, crafted for industrial, electronic components, and power management applications where rapid charge and discharge cycles are critical.
This supercapacitor incorporates advanced electrochemical double layer capacitor (EDLC) technology combined with high quality materials to maintain low equivalent series resistance (ESR) of 160 milliohms, enabling large current demand and high power density usage.
Operating temperature range is from -25°C to +70°C with a lifetime rating of 1000 hours. The capacitance tolerance is specified at -10 to 30%, ensuring reliable performance under varied conditions. The solder terminal type with 0.5mm lead diameter and 3.5mm lead pitch facilitates strong and durable through hole connections.
Safety and environmental compliance are assured with UL and RoHS approvals. Leakage current is minimal at 7 microamperes, which aids in maintaining electrical integrity over time. This supercapacitor is ideally suited for use in industrial electronics, power supplies, memory backup, automotive electronics, and other high reliability applications requiring steady energy storage and quick energy delivery.
This product features ultra-high capacitance in a small footprint suitable for electronic assemblies. Low ESR ensures efficient power delivery and operational stability. Wide operating temperature range supports diverse environmental conditions.
The component is compliant with international safety and environmental standards. Designed with through hole mounting for robust PCB integration. Low leakage current extends device longevity and reliability. Capacitance tolerance range accommodates manufacturing variability without impacting performance.
Long lifetime rating ensures suitability for durable and continuous use cases.
Choose Eaton supercapacitors for reliable energy storage solutions in your electronic and industrial projects. Explore more products in the Electronics Components and Supercapacitors category on EnvMart for comprehensive selection and expert support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton HB0820-2R5305-R supercapacitor has a capacitance of 3 Farads (3F).
This supercapacitor operates at a voltage of 2.5V DC.
The equivalent series resistance (ESR) of this model is 160 milliohms.
The supercapacitor has a diameter of 8.5mm, a height of 21mm, and a depth of 21mm.
The lead pitch is 3.5mm and the lead diameter is 0.5mm, designed for through hole mounting.
The operating temperature range for this model is from -25°C to +70°C.
This supercapacitor has a lifetime rating of 1000 hours.
The Eaton HB0820-2R5305-R complies with UL and RoHS standards.
The leakage current is minimal at 7 microamperes (7μA).
This supercapacitor features a solder terminal type for mounting.
This supercapacitor is suitable for industrial electronics, power supplies, memory backup, and automotive electronics.
The capacitance tolerance for the Eaton HB0820-2R5305-R ranges from -10% to +30%.
