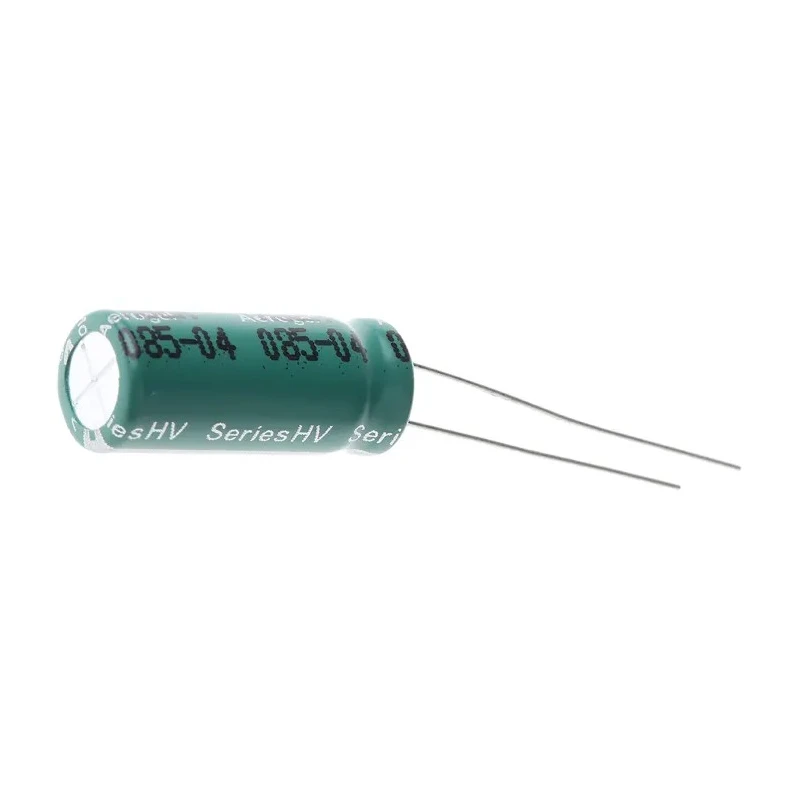

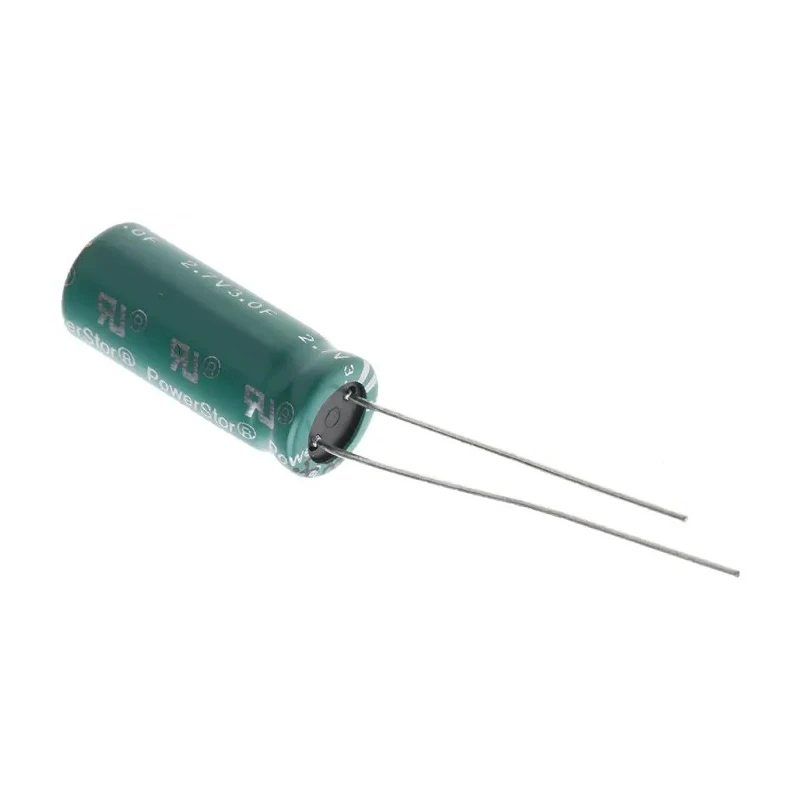

Eaton 3 F Electric Double Layer Supercapacitor Cylindrical Cell, 2.7V DC, -10 to 30 % Tolerance, Through HV0820-2R7305-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.7V dc |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 21mm |
| Model | HV0820-2R7305-R |
| Depth | 21mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | Supercap HV |
| Maximum Operating Temperature | 65°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 3F |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Terminal type | Solder |
| Leakage Current | 15μA |
| Standards/Approvals | RoHS, UL |
| Package/Case | Cylindrical Cell |
| Pin Count | 2 |
| Lead Pitch | 3.5mm |
| Lead Diameter | 0.5mm |
| Equivalent Series Resistance ESR | 80mΩ |
| Capacitor Family | Electric Double Layer |
Key Features
- Features ultra-low Equivalent Series Resistance (ESR) of 80 milliohms for high power density.
- Constructed as a cylindrical cell using electrochemical double layer capacitor technology with aluminum materials.
- Provides a capacitance of 3 farads with a leakage current of 15 microamperes.
- Rated for operating temperatures from -40°C up to 65°C with a lifetime expectancy of 1000 hours.
- Designed with a 0.5mm lead diameter, a 3.5mm lead pitch, and positive polarity terminal solder connections.
- Complies with RoHS and UL standards ensuring environmental and safety certifications.
- Ideal for industrial and electronic component applications requiring energy storage and power backup.
Product Description
The Eaton HV0820-2R7305-R is a high-performance 3 F supercapacitor featuring electric double layer technology housed in a cylindrical cell form factor. It operates at a rated voltage of 2.7V DC with a tolerance range of -10 to 30 %. This component is designed for through hole mounting, providing reliable and robust solder terminal connections.
This supercapacitor is constructed with advanced materials to deliver ultra-low Equivalent Series Resistance (ESR) at 80 milliohms, allowing for exceptional power density suitable for demanding electrical and industrial applications. Its leakage current is minimal at 15 microamperes, enhancing energy retention over extended usage periods.
Dimensions include an 8.5mm diameter and 21mm height and depth, making it compact for integration into various PCB designs. The leads have a diameter of 0.5mm and a pitch of 3.5mm, configured with positive polarity for convenient circuit installation.
With an operating temperature range from -40°C to 65°C and a lifetime expectancy of approximately 1000 hours, this supercapacitor is ideal for powering industrial electronics, power backup systems, and energy storage where durability and reliability are critical.
The Eaton HV series (PowerStor) complies with RoHS and UL standards, ensuring safety and environmental compliance required in modern electronic manufacturing. Ultra-low ESR for high power density and energy efficiency. Long operating life with stable performance under temperature extremes.
Compact cylindrical form for space-efficient PCB mounting. Complies with international safety and environmental standards. Positive polarity and through-hole mount type facilitate ease of installation. This supercapacitor is widely used in industrial electronics, energy harvesting, backup power solutions, and other advanced electrical applications.
Discover more electronic components and Supercapacitors by browsing our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 3 farads.
The rated voltage for this supercapacitor is 2.7V DC.
The dimensions of this unit are 8.5mm in diameter and 21mm in height and depth.
It operates within a temperature range of -40°C to 65°C.
The equivalent series resistance (ESR) is 80 milliohms.
The leakage current for this supercapacitor is 15 microamperes.
This model is designed for through hole mounting.
The lead diameter is 0.5mm with a lead pitch of 3.5mm.
It complies with RoHS and UL standards for safety and environmental compliance.
The expected lifetime of this unit is approximately 1000 hours.
This supercapacitor has a positive polarity terminal configuration.
It is suitable for industrial electronics, power backup systems, and energy storage applications.
