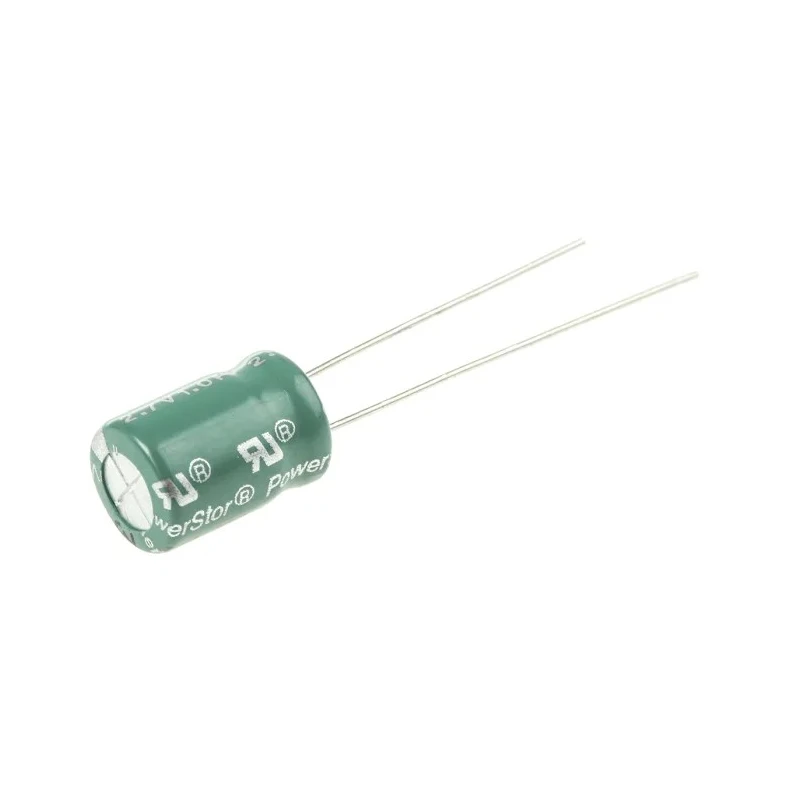

Eaton 1 F Electric Double Layer Supercapacitor, -10 to 30 % Tolerance, 2.7 V DC, Through Hole Mount HV0810-2R7105-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.7V dc |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 13.5mm |
| Model | HV0810-2R7105-R |
| Depth | 13.5mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | Supercap HV |
| Maximum Operating Temperature | 65°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 1F |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Terminal type | Solder |
| Leakage Current | 10μA |
| Standards/Approvals | UL, RoHS |
| Package/Case | Cylindrical |
| Pin Count | 2 |
| Lead Pitch | 3.5mm |
| Lead Diameter | 0.5mm |
| Equivalent Series Resistance ESR | 200mΩ |
| Capacitor Family | Electric Double Layer |
Key Features
- This supercapacitor features ultra-high capacitance for energy storage applications.
- Designed for through hole mounting with a cylindrical aluminum case.
- Operating voltage is rated at 2.7 volts DC with low leakage current of 10μA.
- Durable construction enables operation from -40°C to 65°C with a lifespan of 1000 hours.
- Low equivalent series resistance (ESR) of 200 mΩ supports high power density.
- Positive polarity with 0.5 mm lead diameter and 3.5 mm lead pitch ensures reliable solder connections.
- Compliant with UL and RoHS standards, ensuring safety and environmental compliance.
- Compact dimensions include diameter of 8.5 mm, height and depth of 13.5 mm.
Product Description
The Eaton HV0810-2R7105-R is a high-performance 1 farad supercapacitor based on Electric Double Layer Capacitor (EDLC) technology, providing ultra-high capacitance combined with excellent energy and power density. It operates at a voltage of 2.7 V DC and features a through hole mount design for ease of integration in circuit boards.
This supercapacitor is constructed with high quality aluminum cylindrical case providing robustness and reliability for industrial and commercial electronics applications. The device supports operation within temperatures ranging from -40°C to 65°C, with a long operating life of approximately 1000 hours.
Its low equivalent series resistance (ESR) of 200 milliohms allows efficient energy delivery and reduces power losses. The product is polarized with positive polarity, and lead pins measure 0.5 mm in diameter with 3.5 mm pitch for secure soldering. The capacitance tolerance is between -10% and +30%, suitable for a range of circuit tolerances.
Certified to meet UL and RoHS standards, this supercapacitor ensures compliance with safety and environmental regulations. Compact physical dimensions with an 8.5 mm diameter and 13.5 mm height/depth facilitate tight circuit board layouts.
Ultra-high capacitance using advanced EDLC technology. Through hole mounting suitable for various PCB applications. Rated for 2.7 V DC with low leakage current of 10μA. Operating temperature range from -40°C to 65°C ensuring versatility.
Long lifetime of 1000 hours under standard conditions. Low ESR of 200 milliohms for efficient power usage. Compliance with UL and RoHS standards for quality and safety. Compact cylindrical aluminum case design for easy integration.
This Eaton supercapacitor is ideal for industrial, automotive, power backup, and energy harvesting applications, delivering reliable energy storage solutions. It is a critical component for electronic, power management, and capacitor applications where high capacitance and rapid charge/discharge cycles are needed.
Explore more electronic components and Supercapacitors at EnvMart to find the right fit for your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this supercapacitor is 1 farad (1F).
It operates at a voltage of 2.7 V DC.
This supercapacitor can operate within a temperature range of -40°C to 65°C.
The equivalent series resistance (ESR) is 200 milliohms (mΩ).
The supercapacitor has a diameter of 8.5 mm and a height and depth of 13.5 mm.
It features a through hole mounting design for easy integration into circuit boards.
The lead diameter is 0.5 mm with a lead pitch of 3.5 mm.
The leakage current is rated at 10 microamperes (10μA).
It has a lifespan of approximately 1000 hours under standard conditions.
This unit is compliant with UL and RoHS standards, ensuring safety and environmental compliance.
The supercapacitor is polarized with positive polarity.
It is suitable for industrial, automotive, power backup, and energy harvesting applications.
