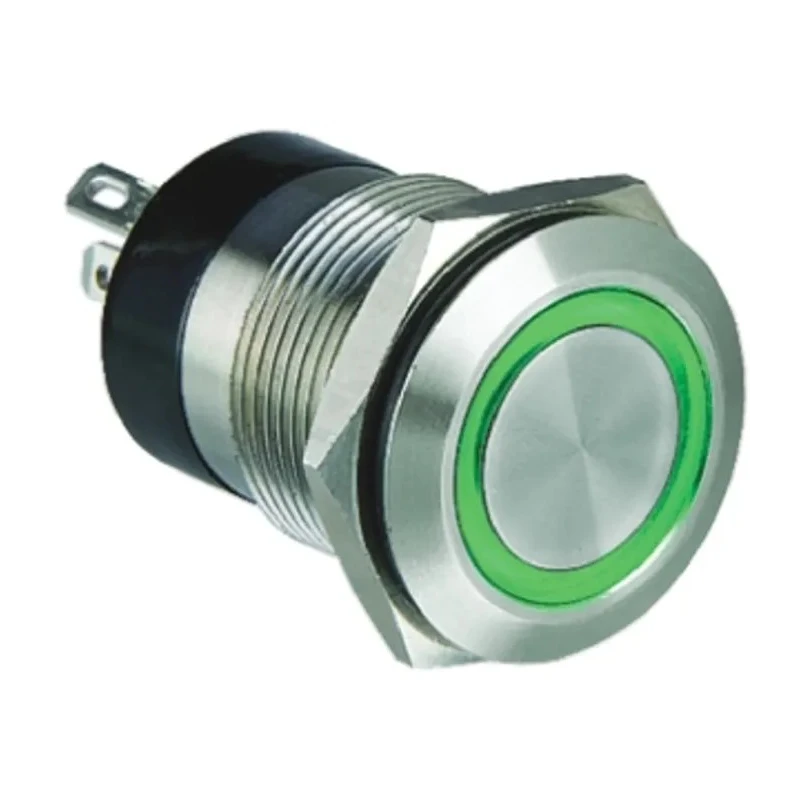

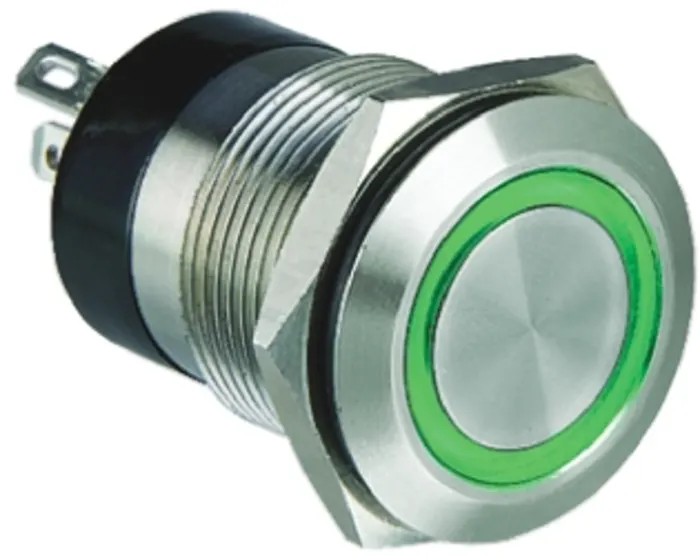

Bulgin Illuminated Momentary Push Button Switch Panel Mount SPST 24 V dc 19.2 mm Cutout MPI002

Name: Bulgin Illuminated Momentary Push Button Switch Panel Mount SPST 24 V dc 19.2 mm Cutout MPI002
Brand: Bulgin
SKU: 408700
Price: 4134.47 INR
Availability: InStock



Category Push Button Switches Brand Bulgin Condition New

Specifications

Country of Origin	Tunisia
Brand	Bulgin
Model	MPI002
IP Rating	IP66
Mount Type	Panel
Overall Length	35mm + 300mm (flying leads), 32.7mm (2.8mm tags)
Series	MPI002
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	1 Contact push to make
Minimum Operating Temperature	-30°C
Panel Cutout Size	19.2 mm
Terminal type	Tab
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	24V dc
Actuator Style	Button
Switch Contact Current	50mA

Key Features

Constructed from durable stainless steel ensuring vandal resistance and long service life.
Momentary switch operation with 1 contact push to make configuration for precise control.
Equipped with green LED illumination with an integral supply resistor for 24 V dc operation.
Fully sealed to IP66 for protection against dust and water ingress, suitable for harsh environments.
Operating temperature range from -30°C to 70°C for versatile industrial applications.
Terminal type includes 2.8 mm solder tags or flying leads for easy installation.
Compact overall length of 35mm plus 300mm flying leads or 32.7mm with 2.8mm solder tags.
Complies with RoHS standards ensuring environmental safety.

Product Description

Bulgin MPI002 series illuminated push button switch is designed for panel mounting with a precise 19.2 mm cutout. This momentary switch offers SPST contact configuration with green LED illumination operated at 24 V dc, suitable for industrial and commercial electrical control panels.

Manufactured from stainless steel, the switch is vandal resistant and built to last in demanding environments. It is fully sealed to IP66 rating, protecting against dust ingress and powerful water jets, making it ideal for outdoor or harsh conditions.

This switch operates reliably across a temperature range from -30°C to 70°C, equipped with an actuator styled as a button, providing tactile feedback and ease of use. The switch is supplied with terminal options including 2.8 mm solder tags or insulated flying leads of 300 mm length for flexible connection methods.

The integrated green LED illumination includes an internal supply resistor for 24 V dc, though users must note illumination resistors are specific to voltage variants and detailed in the datasheet. This push button is momentary in operation, designed for transient user input requiring controlled contact closure.

The MPI002 switch includes internal TVS (transient voltage suppression) protection to safeguard the circuitry against transient voltage spikes, enhancing durability and operational lifespan.

Durable stainless steel construction for vandal resistant security switches. Momentary SPST switch action with push to make contact. Green LED illumination with internal resistor for 24 V dc. Fully sealed IP66 rating ensuring protection in harsh industrial environments.

Wide operating temperature from -30°C to 70°C. Terminal options of flying leads or 2.8 mm solder tags for installation flexibility. Compliant with RoHS directives for hazardous substance restrictions. Internal TVS protection for voltage transient resistance.

Compact size with an overall length of 35 mm plus 300 mm leads or 32.7 mm with tags. Ideal for industrial electrical, automation, and machinery control panel applications.

Choose Bulgin MPI002 series illuminated panel mount Push Button Switches for reliable user input controls in electrical systems where durability, ingress protection, and clear visual indication are required. Explore more in our Electronics & Electricals, Switches & Sockets category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Bulgin MPI002 switch features an SPST (Single Pole Single Throw) contact configuration, allowing for a momentary push-to-make operation.

This model has an IP66 rating, which means it is fully sealed against dust ingress and protected against powerful water jets, making it suitable for harsh environments.

The operating temperature range for this switch is from -30°C to 70°C, allowing it to function effectively in a variety of industrial applications.

The required panel cutout size for installing the Bulgin MPI002 switch is 19.2 mm.

This switch is equipped with green LED illumination, which includes an internal supply resistor for operation at 24 V dc.

The switch offers terminal options of 2.8 mm solder tags or insulated flying leads that are 300 mm in length for flexible installation.

The overall length of the switch is 35 mm plus an additional 300 mm for the flying leads, or 32.7 mm when using the 2.8 mm solder tags.

Yes, the Bulgin MPI002 switch complies with RoHS standards, which restrict hazardous substances in electrical and electronic equipment.

The actuator style of this switch is a button, designed to provide tactile feedback during operation.

The switch contacts of the MPI002 are rated for a maximum current of 50 mA.

This model includes internal transient voltage suppression (TVS) protection to safeguard against transient voltage spikes, enhancing its operational lifespan.

The Bulgin MPI002 switch is manufactured in Tunisia.
