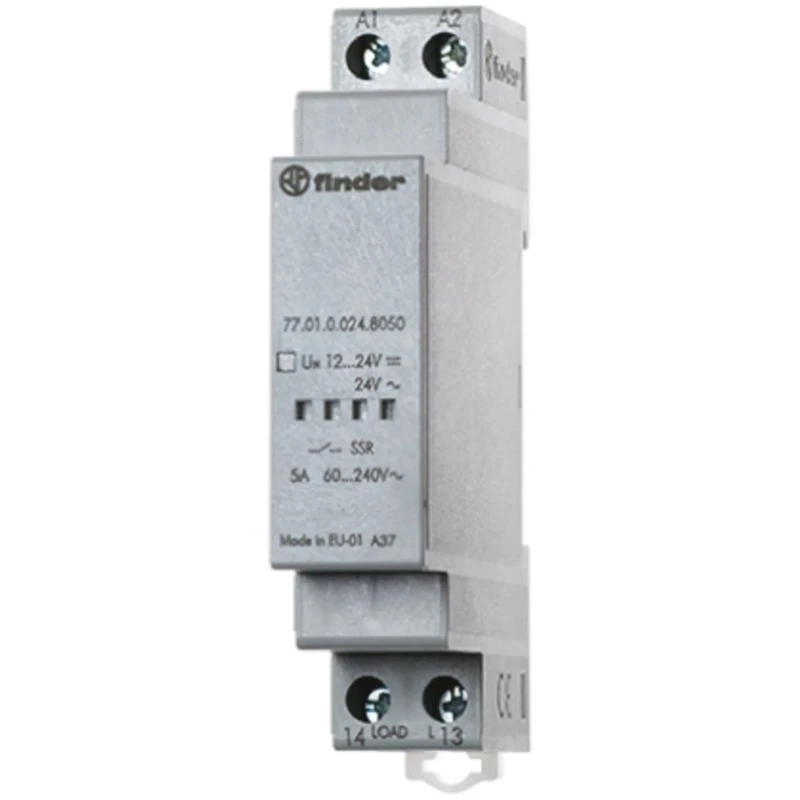

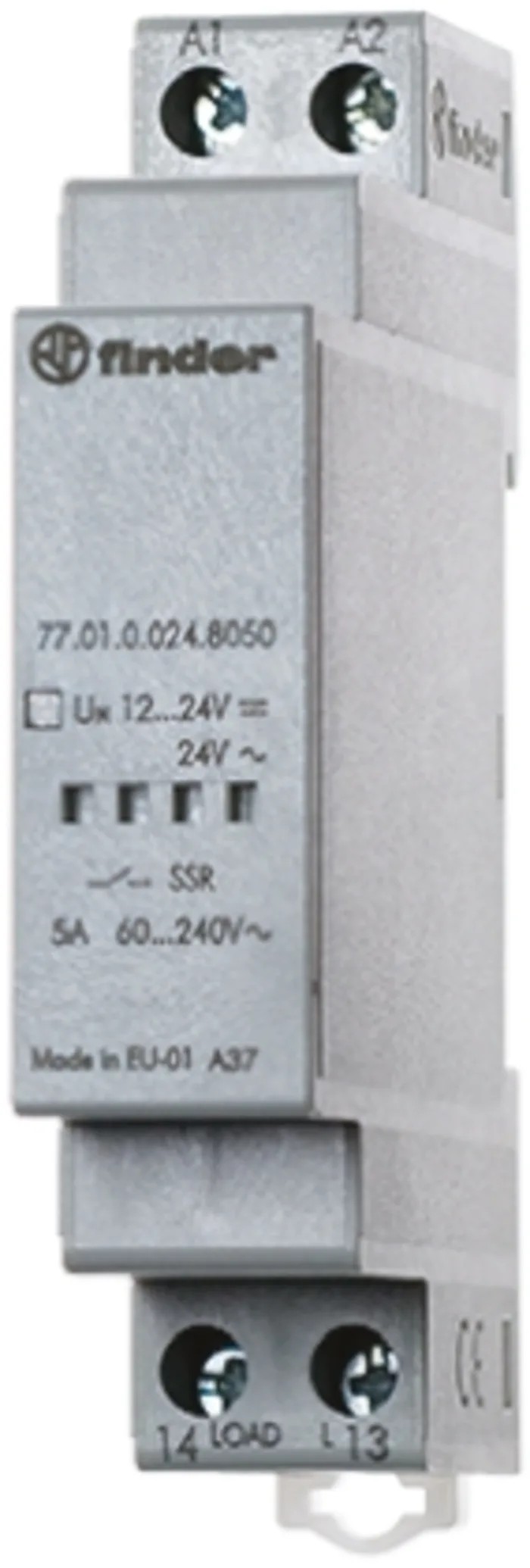

Finder Solid State Relay 5 A Load, 265 V AC Load Voltage, 240 V AC Control Voltage, DIN Rail Mount 77.01.8.230.8050
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 84mm |
| Length | 17.5mm |
| IP Rating | IP20 |
| Width | 60mm |
| Mount Type | DIN Rail |
| Output type | DC |
| Series | 77 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | EAC, RoHS, cUL, cLR, CE |
| Maximum Load Voltage | 265V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 110V ac |
| Maximum Control Voltage | 240V ac |
| Off State Leakage Current | 3.5mA |
| Celduc XK Solid State Interface Relay, Control | 240V ac/dc DIN Rail ScrewBrand: Celduc |
Key Features
- Provides silent switching, improving operational environments.
- Features zero cross switching to minimize inrush currents and electromagnetic interference.
- Employs SPST contact configuration for simple on/off circuit control.
- Compact DIN rail mount design enables efficient panel space usage.
- Operates reliably between -20°C and +70°C for various industrial conditions.
- Supports screw terminal connections ensuring secure wiring.
- Offers high endurance for extended operational lifespan.
- Suitable for heating, cooling, lighting, packaging machinery, and solenoid control applications.
Product Description
Finder 77.01.8.230.8050 is a high-quality Solid State Relay engineered for efficient electrical circuit control. Its DIN rail mount capability allows easy integration into industrial control panels. Supporting a maximum load current of 5 A and load voltage up to 265 V AC, it provides robust performance with a control voltage rating of 240 V AC.
The relay features zero cross switching technology, which significantly reduces electromagnetic interference and inrush current by switching only when the AC voltage crosses zero. This functionality protects sensitive components and increases overall system stability.
Equipped with an SPST (Single Pole Single Throw) contact configuration and screw terminals, it enables straightforward on/off switching operations with a secure and reliable connection method. Its compact dimensions of 17.5 mm (length) x 60.8 mm (width) x 84 mm (height) make it compatible with standard DIN rail assemblies in industrial environments.
Operating temperature range from -20°C to +70°C ensures reliable performance across varied environmental conditions. The device demonstrates excellent durability for extended operational use, making it well-suited for commercial and industrial applications such as heating and cooling system control, lighting management in commercial properties, bottling and labeling automation, packaging machinery control, and solenoid and contactor driving.
Silent switching reduces noise in electrical systems. Zero cross switching minimizes inrush current stress. SPST relay configuration for simple switching. Robust screw terminal design ensures secure connections. Compact design fits standard DIN rail mounts.
Wide operational temperature range supports diverse applications. Long endurance suitable for industrial automation. Ideal for various industrial and commercial automated control systems.
This relay is made in Italy and conforms to standards including EAC, RoHS, cUL, cLR, and CE, assuring quality and compliance. Its DC output type and low off-state leakage current of 3.5 mA contribute to energy efficient operation.
For additional components or related mounting equipment for DIN rails, explore the broad selection of accessories available in the same category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 5 A.
It supports a load voltage range from 48 V AC to 265 V AC.
The control voltage rating for this model is 240 V AC.
This relay is designed for DIN rail mounting, allowing easy integration into control panels.
It operates reliably between -20°C and +70°C.
It features an SPST (Single Pole Single Throw) contact configuration for on/off switching.
The off-state leakage current is 3.5 mA.
It conforms to several standards including EAC, RoHS, cUL, cLR, and CE.
The dimensions of this relay are 17.5 mm in length, 60 mm in width, and 84 mm in height.
It employs zero cross switching technology to minimize inrush currents and electromagnetic interference.
This model uses screw terminals for secure wiring connections.
This relay is manufactured in Italy.
