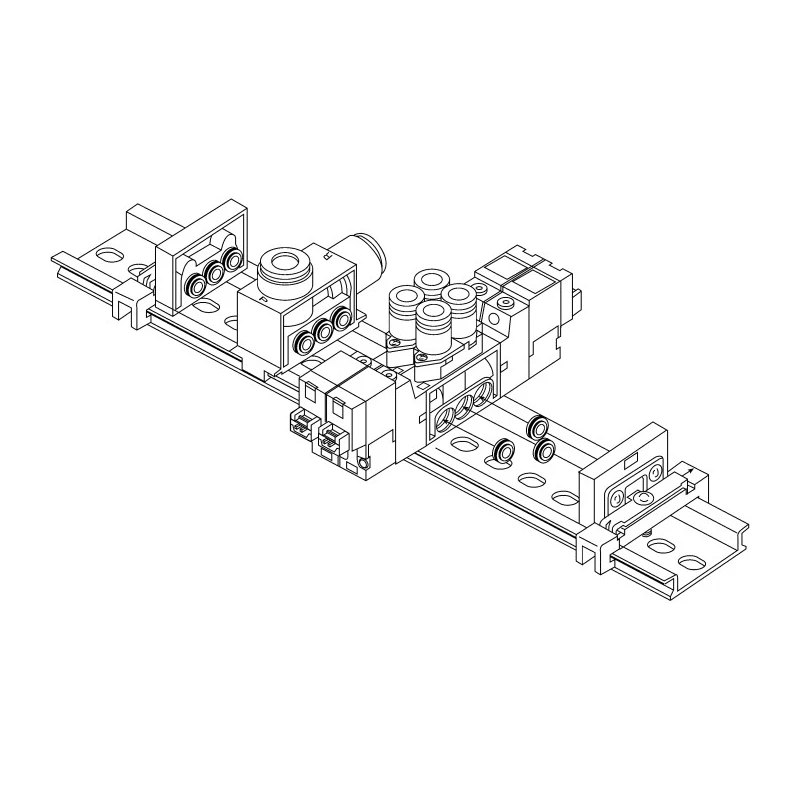

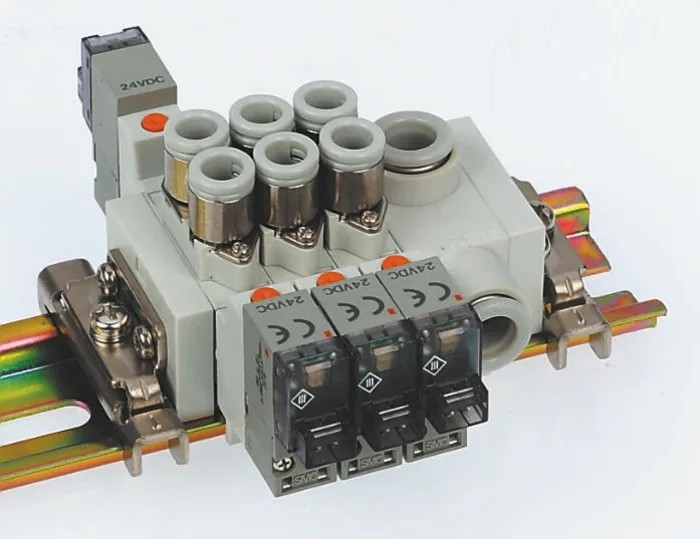

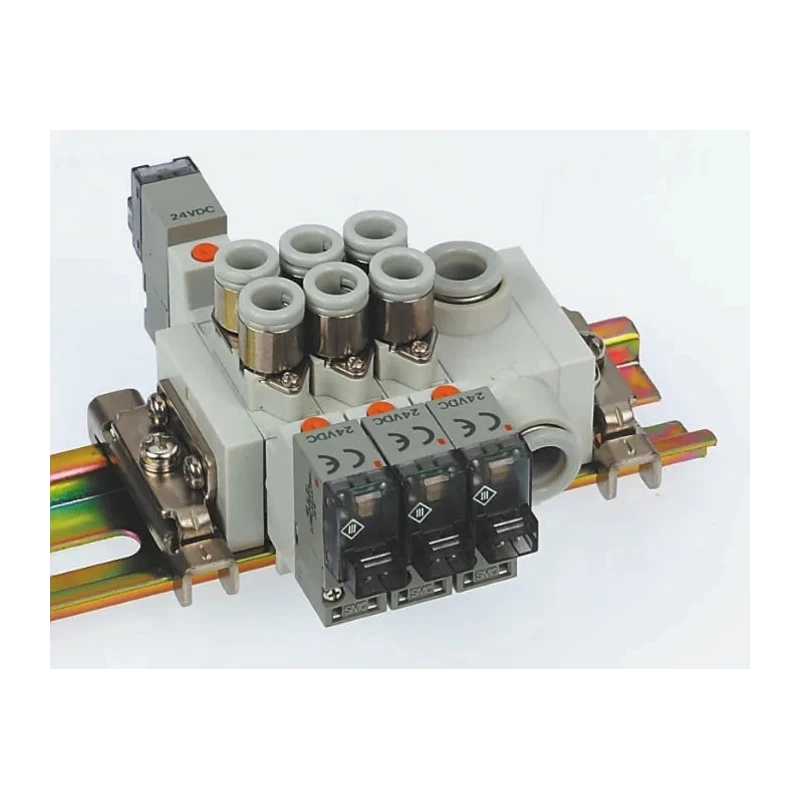

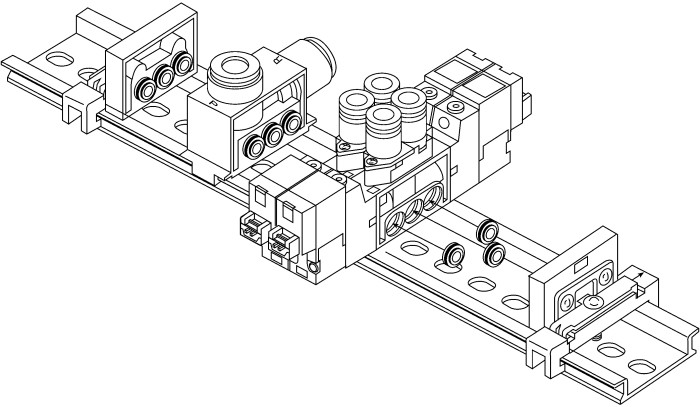

SMC Pneumatic 5 Port One-Touch Fitting Solenoid Valve Pilot Actuation 24V DC Die Cast Aluminium SY5000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Length	600m
Model	SY5000
Mount Type	Base, Body Ported
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Port Type	One-Touch Fitting
Port Size	G 1/8
Seal Material	Hydrogenated Nitrile Rubber, Rubber, Flouro Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	559NL/min
Minimum Pilot Pressure	0.1MPa
Valve Function	5 Port

Key Features

The valve belongs to the SY5000 series, ensuring compatibility with modular DIN rail systems.
It operates at 24V DC voltage with low power consumption for energy efficiency.
The valve is constructed with durable die cast aluminium and uses hydrogenated nitrile and fluororubber seals.
Suitable for pressures up to 0.7 MPa and flows reaching 559 NL/min.
Operating temperature range is -10°C to 50°C, enabling versatile pneumatic system deployment.
Includes base and body ported mount types for flexible installation.
Port size is G 1/8 with a 1/8 inch thread size for standard pneumatic fittings.
Valve function is 5 port for complex air flow control in pneumatic circuits.

Product Description

SMC SY5460-5YO-01F-Q Pneumatic Solenoid Valve from the SY5000 Series is a pilot actuated valve with a compact and lightweight die cast aluminium body, designed for pneumatic control in industrial applications. Operating at 24V DC, it provides efficient pneumatic actuation with low power consumption and fast response times.

This valve features a 5 port configuration allowing versatile control of air flows and supports a maximum operating pressure of 0.7 MPa with a maximum flow rate of 559 NL/min, suitable for a wide range of pneumatic system requirements. The valve employs hydrogenated nitrile and fluororubber seals to ensure durability and leak prevention under varying operating conditions.

The operating temperature range spans from -10°C to 50°C, making it versatile for different environments. It is compatible with standard G 1/8 port sized one-touch fittings and includes base and body ported mounting options for installation flexibility. The valve is designed for use in compressed filtered air systems, including lubricated or non-lubricated air supplies.

Common industrial applications include pneumatic circuits in manufacturing, automation, HVAC systems, laboratory instruments, and fluid power tools. Its modularity and DIN rail mountable design permit easy configuration and expansion within complex pneumatic control systems.

The SY5000 series offers compact, lightweight body ported design valves. Valve supplied complete with high-quality sealing discs to prevent leakage. Standard DIN rail mounting with low power solenoid coil operation at 24V DC.

Valve operation using compressed filtered air, suitable for lubricated or non-lubricated conditions. Robust construction from die cast aluminium and durable seal materials. Multi-port valve function enabling precise pneumatic control.

Wide temperature and pressure ratings for versatile industrial applications. Manufactured in Japan to rigorous quality standards.

This solenoid valve is essential for pneumatic automation and control systems requiring reliable, energy-efficient valve operation with robust performance. Explore more in our Pneumatic Solenoid Valve category for additional parts and accessories to complete your pneumatic control solution.
