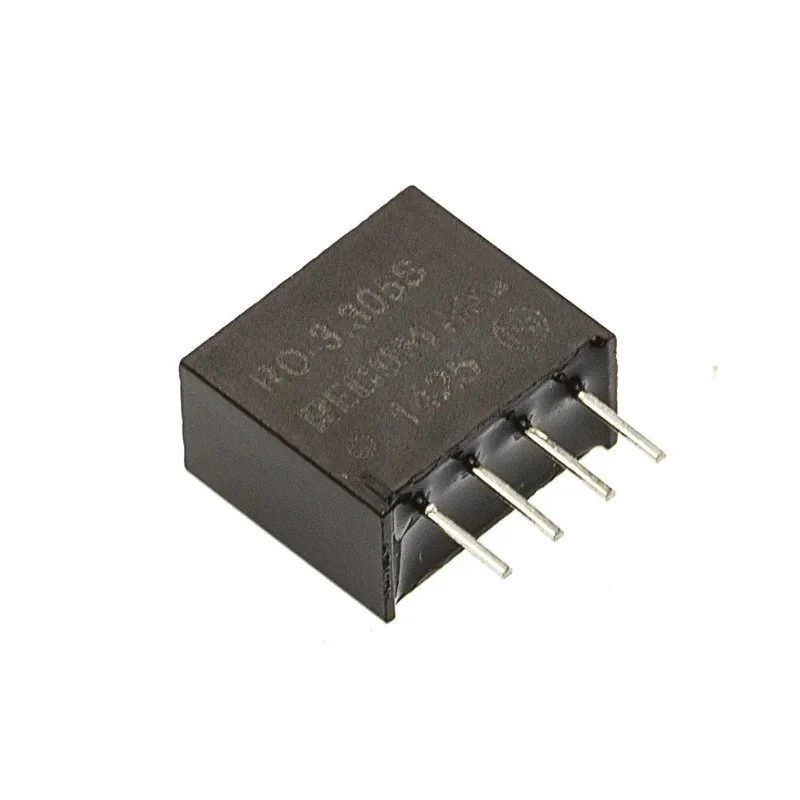

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter, 5V DC Output, 200mA Output Current, 3.3V DC RO-3.305S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 5V dc/ 200 mA, 3 |
| Brand | Recom |
| Efficiency | 80% |
| Length | 11.5mm |
| Model | RO-3.305S |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 3.3V dc |
| Standards/Approvals | CSA, IEC, UL |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 0/3.3 V |
| Isolation Voltage | 1kV dc |
Key Features
- Unregulated output with 1kV DC isolation for enhanced safety.
- Efficient conversion with up to 80% efficiency at full load.
- Wide operating temperature range from -40°C to 85°C allowing use in harsh environments.
- SIP4 industry standard pinout with 6 pins and SIP package type.
- Short circuit protection and fully encapsulated UL94V-0 compliant package.
- Provides ripple and noise of 100mV peak-to-peak to ensure stable output signal.
- Mean time between failures (MTBF) rated at 200,000 hours indicating robust reliability.
- RoHS compliant with CSA, IEC, and UL standards approvals.
Product Description
Recom RO-3.305S DC/DC Converter is a specialized 1W SIP single output power supply designed for converting DC voltage efficiently with unregulated outputs. It supports a 5V DC output voltage and up to 200mA output current, perfect for various electronics and electrical applications.
This converter features a maximum input voltage of 3.3V DC and a minimum input of 0V, ensuring flexible input ranges. It is a through-hole mount type with a SIP package and 6 pins, making it suitable for standardized PCB layouts.
Operating reliably in temperatures from -40°C to 85°C, the RO-3.305S is fully encapsulated to meet UL94V-0 safety standards and is short circuit protected, ensuring safety and durability in industrial environments.
The device offers an isolation voltage of 1kV DC, ensuring safe separation of input and output circuits. With an efficiency of around 80% under full load conditions, it balances power efficiency and thermal performance well for compact electronic devices.
Its compact size of 11.5mm length, 10mm width, and 10mm depth and light weight of approximately 1.4 grams highlight its suitability for space-constrained installations.
The converter meets international certifications including CSA, IEC, and UL approvals, making it a reliable choice for industrial, laboratory, manufacturing, and embedded power supply applications.
Ideal for electronic components requiring stable isolated DC power conversion in various industrial, commercial, and research applications. Unregulated output with 1kV DC isolation for enhanced safety. Efficient conversion with up to 80% efficiency at full load.
Wide operating temperature range from -40°C to 85°C allowing use in harsh environments. SIP4 industry standard pinout with 6 pins and SIP package type. Compact dimensions: 11.5mm length, 10mm width, and 10mm depth. Short circuit protection and fully encapsulated UL94V-0 compliant package.
Provides ripple and noise of 100mV peak-to-peak to ensure stable output signal. Mean time between failures (MTBF) rated at 200,000 hours indicating robust reliability. RoHS compliant with CSA, IEC, and UL standards approvals.
Origin: Taiwan, Province Of China. Explore more products in the DC/DC Converter category on EnvMart to find the right fit for your industrial and electrical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 5V DC output voltage with a maximum output current of 200mA.
It has an efficiency of up to 80% at full load conditions.
The unit operates reliably in temperatures ranging from -40°C to 85°C.
The RO-3.305S features an isolation voltage of 1kV DC, ensuring safe separation of input and output circuits.
It has compact dimensions of 11.5mm in length, 10mm in width, and 10mm in depth.
This converter is designed for through-hole mounting, featuring a SIP package with 6 pins.
It is RoHS compliant and meets CSA, IEC, and UL standards.
The unit provides a ripple and noise level of 100mV peak-to-peak, ensuring a stable output signal.
The MTBF is rated at 200,000 hours, indicating robust reliability.
The maximum input voltage is 3.3V DC, with a minimum input voltage of 0V.
It is ideal for various industrial, commercial, and research applications requiring stable isolated DC power conversion.
The RO-3.305S offers an unregulated output, making it suitable for specific electronic applications.
