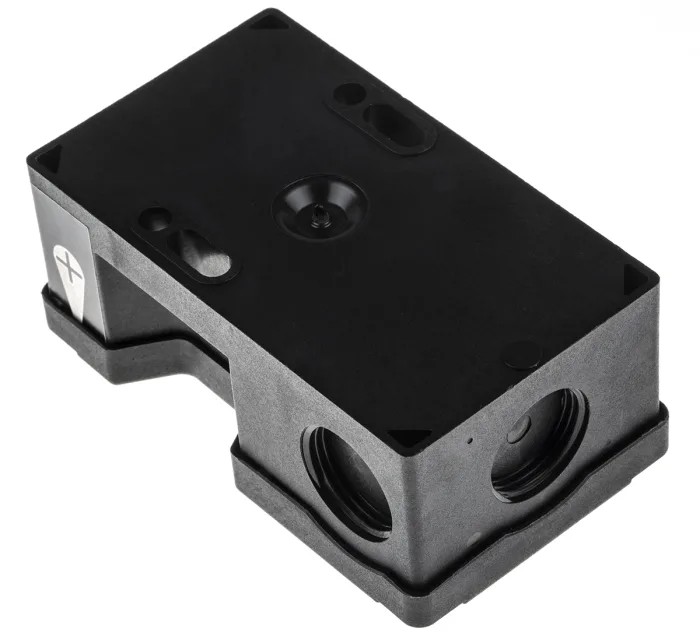

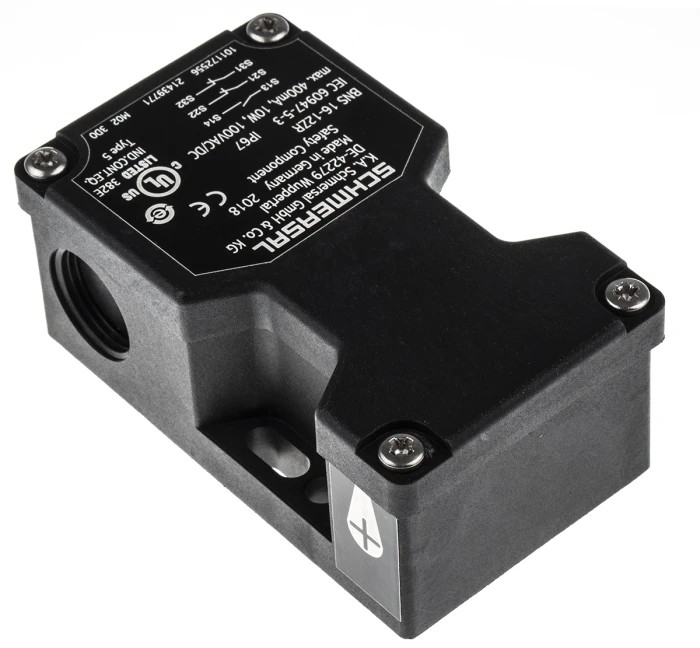

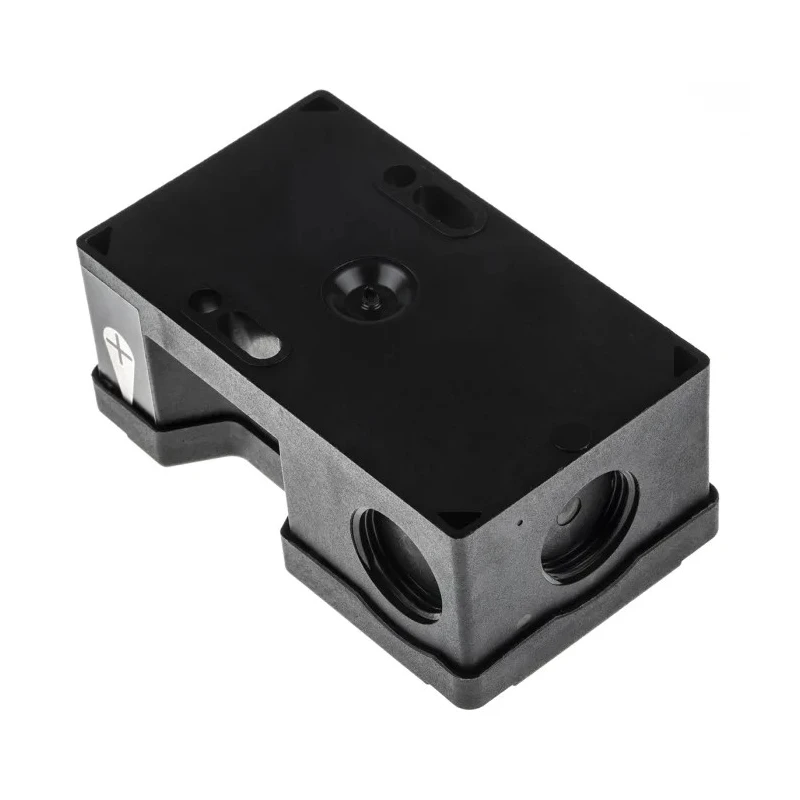

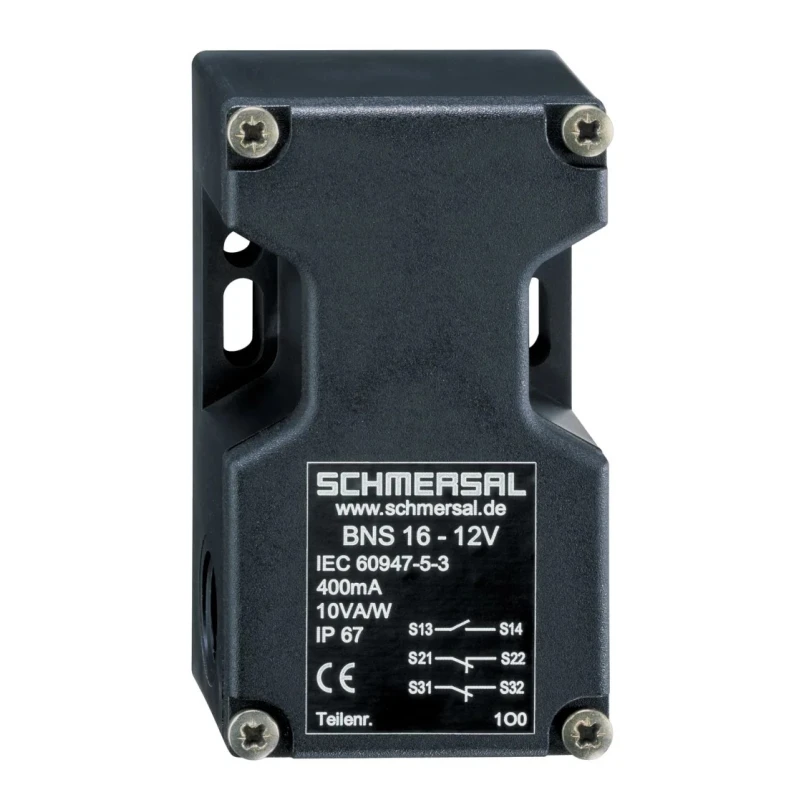

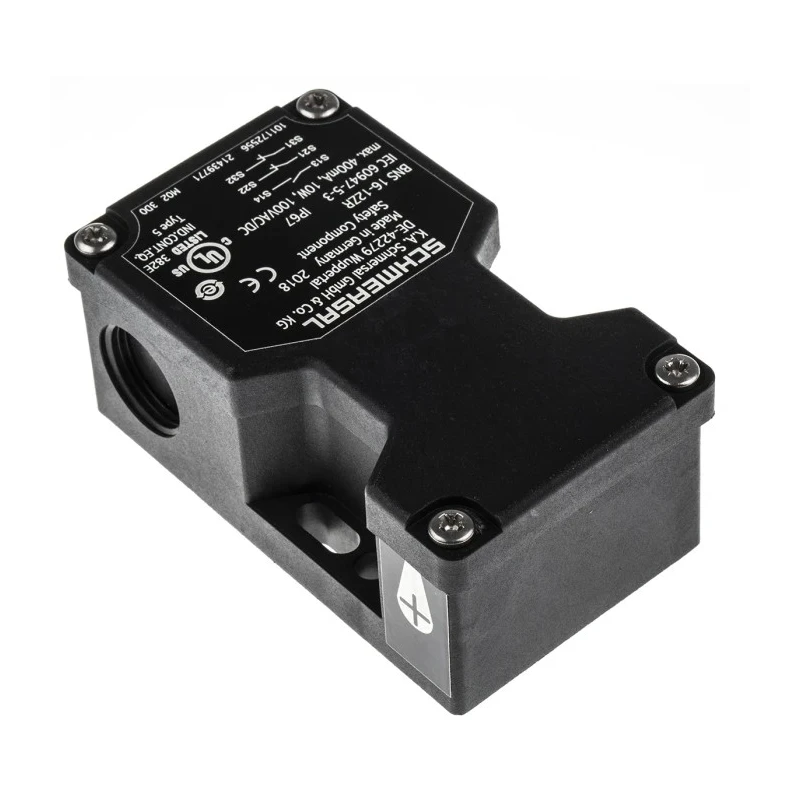

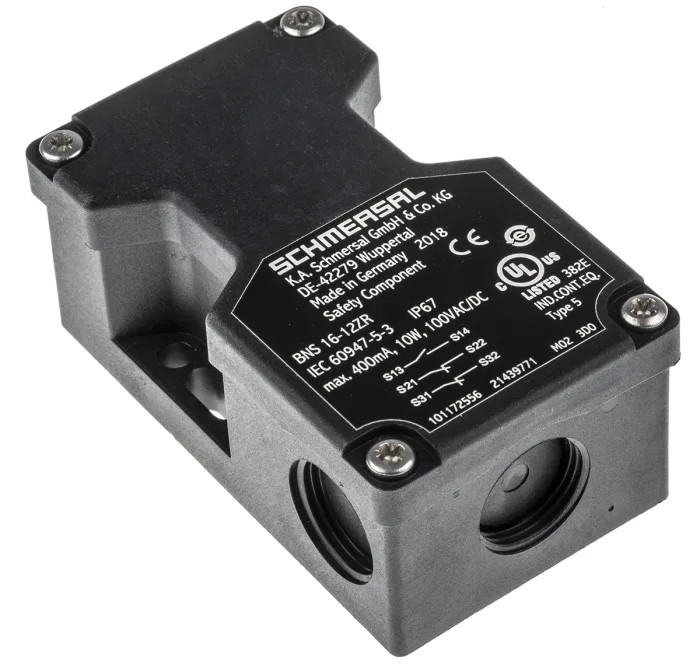

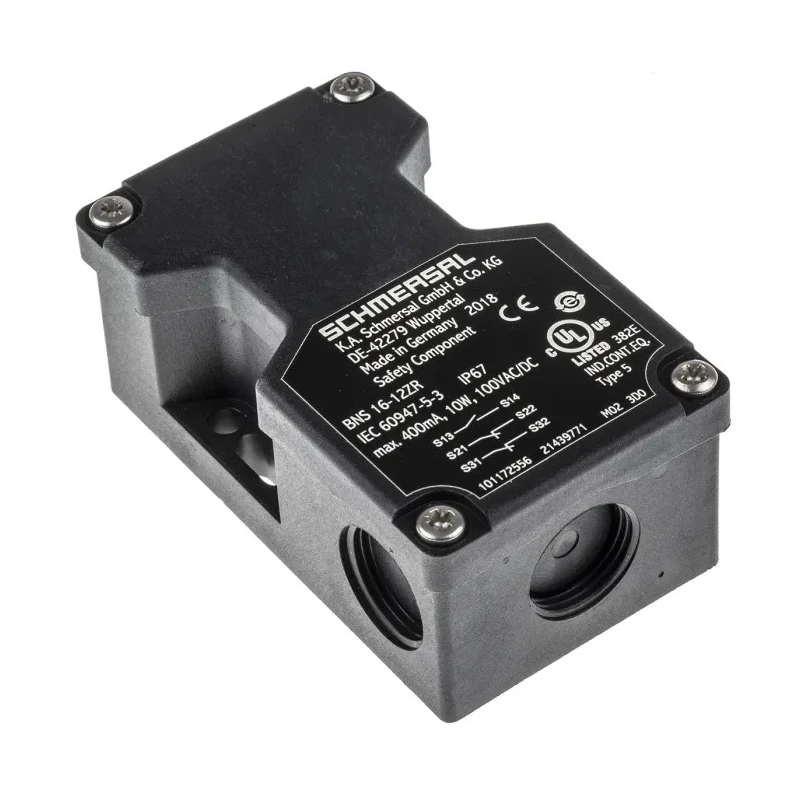

Schmersal BNS16 Series Magnetic Non-Contact Safety Switch, Plastic Housing, 100V AC/DC, 400mA Switching Current BNS 16-12ZR
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 90mm |
| Model | BNS 16-12ZR |
| Connection Type | M20 |
| Depth | 38.5mm |
| IP Rating | IP67 |
| Width | 52mm |
| Housing Material | Plastic |
| Series | BNS16 |
| Actuator Type | Coded |
| Safety Category | 4 |
| Switching Current | 400mA |
| Terminal type | M20 |
| Sensor Principle | Magnetic |
| Body Style | Rectangular |
| Switching DC Voltage | 100V dc |
| Switching AC Voltage | 100V ac |
| Housing Colour | Black |
| Safety Contacts | 1 NO/2 NC |
| Switching Distance | 18 mm |
Key Features
- The switch features a plastic, glass fibre-reinforced thermoplastic housing that is durable and heat resistant.
- It supports a maximum switching current of 400mA suitable for low power applications.
- Equipped with 1 normally open and 2 normally closed safety contacts for versatile control configurations.
- Rated for 100V AC or DC switching voltage ensuring compatibility with various control circuits.
- Provides IP67 ingress protection against dust and water immersion up to 1 meter for 30 minutes.
- Switch is insensitive to transverse misalignments facilitating easier installation.
- Suitable for use in demanding industrial environments with operating temperatures from -25° to +70°C.
- This safety switch meets multiple international standards including IEC 60947-5-3 and EN ISO 13849-1.
Product Description
Schmersal BNS 16-12ZR is a Magnetic Non-Contact Safety Switch from the BNS16 series, designed with a robust plastic housing reinforced with glass fibre. It operates at 100V AC/DC and supports a switching current of up to 400mA. This switch is crucial for improving safety in heavy-duty industrial equipment by stopping machines instantly when guard doors open, thereby preventing accidents and injuries.
The switch employs magnetic sensor technology with 1 normally open (NO) and 2 normally closed (NC) contacts, providing flexible safety configurations. Its plastic body is highly resistant to heat and impact, and the material is self-extinguishing for enhanced fire safety. The device is insensitive to transverse misalignments, simplifying installation and maintenance.
Engineered for demanding use, it operates across a temperature range from -25°C to +70°C and holds an IP67 rating, protecting against dust ingress and temporary water immersion up to 1 meter depth. The M20 connection type and compact rectangular form factor (dimensions: length 90mm, width 52mm, depth 38.5mm) facilitate easy mounting and operation.
Certified to international standards including CE, IEC 60947-5-3, EN ISO 13849-1, BG-GS-ET-14, TUV, cULus listing, and EAC, it is suitable for applications in industrial sectors such as construction and steel manufacturing. Note, the actuating magnet is not included and must be ordered separately for full system functionality.
The switch houses 1 NO and 2 NC safety contacts enabling multiple safety circuit options. IP67 rating ensures protection from dust and water for reliable use in harsh environments. Robust plastic housing is glass fibre reinforced, impact resistant, and heat durable.
Electrical ratings include 100V AC/DC voltage and 400mA switching current capacity. Meets stringent safety and quality standards for industrial safety applications.
This magnetic safety switch is essential for diverse industrial safety applications, including construction sites and steel plants, ensuring operator protection and machine safety. Explore a wide range of safety switches and related components in the EnvMart catalog for comprehensive safety solutions.
Explore more products in our Safety Interlock Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 400mA, suitable for low power applications.
The dimensions of this unit are 90mm in length, 52mm in width, and 38.5mm in depth.
It features a plastic housing that is reinforced with glass fibre, enhancing its durability and heat resistance.
This safety switch is rated for 100V AC and 100V DC switching voltage.
It operates effectively in a temperature range from -25°C to +70°C.
It utilizes an M20 connection type for easy installation.
This model meets safety category 4, ensuring a high level of safety for industrial applications.
The actuator type for this unit is coded, which is suitable for non-contact safety applications.
No, the actuating magnet is not included and must be ordered separately for full system functionality.
