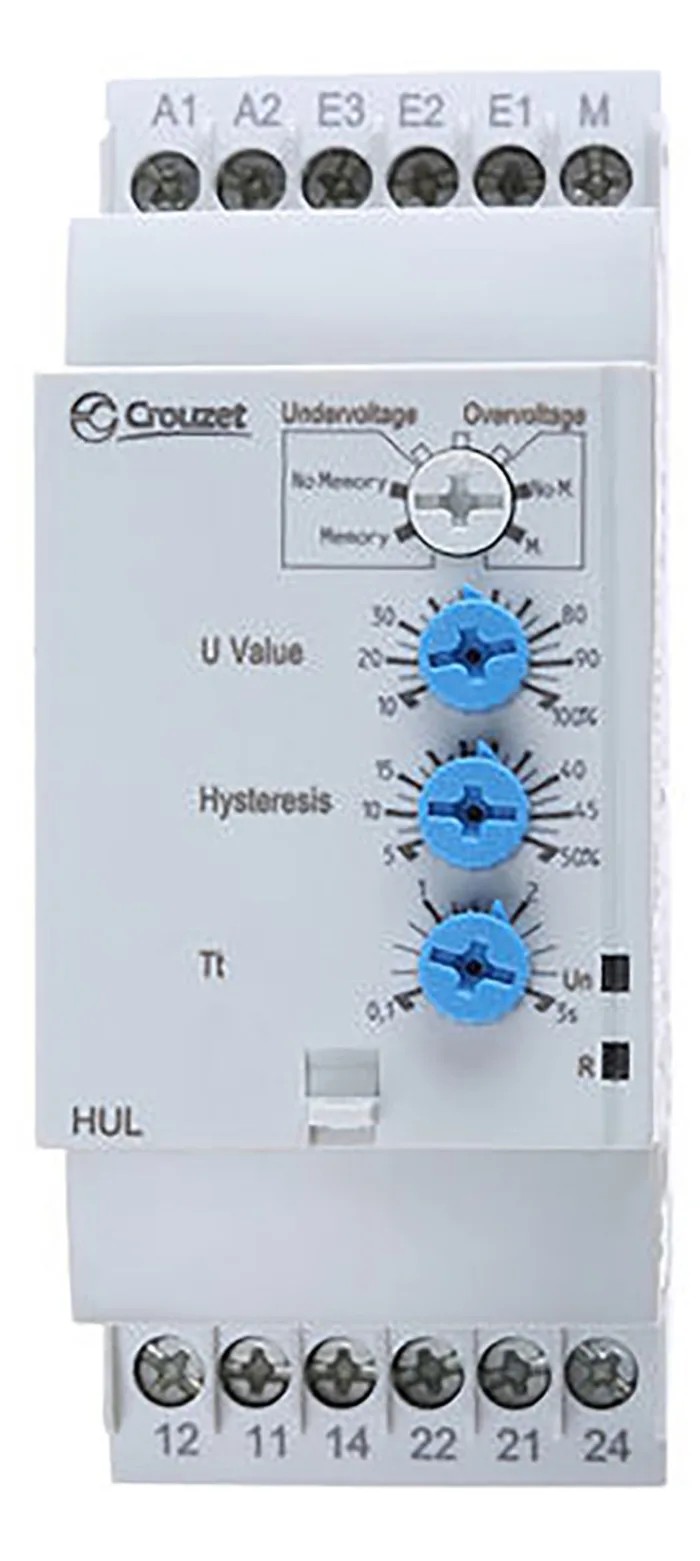

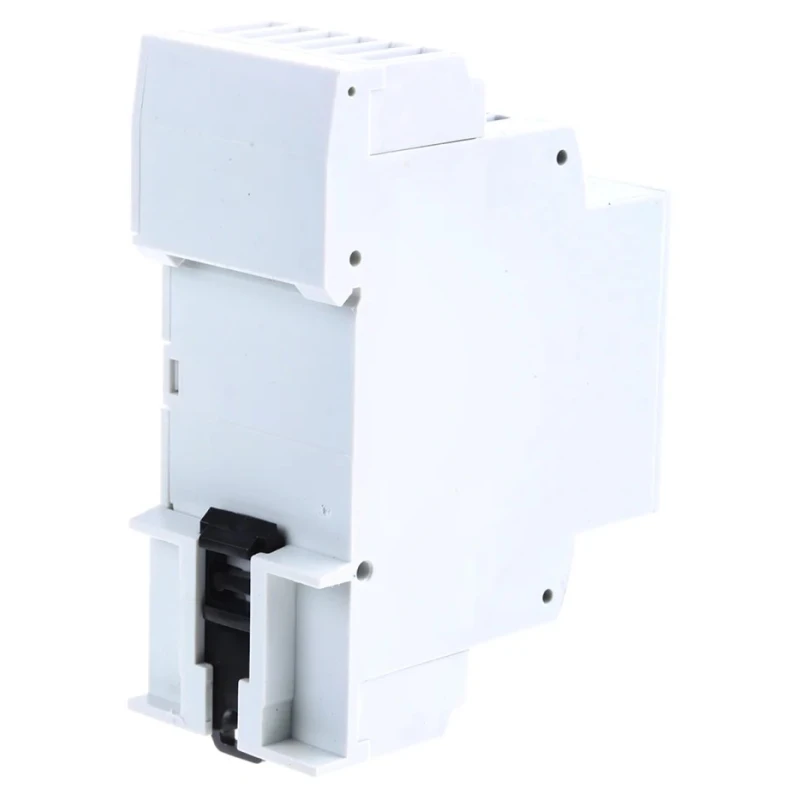

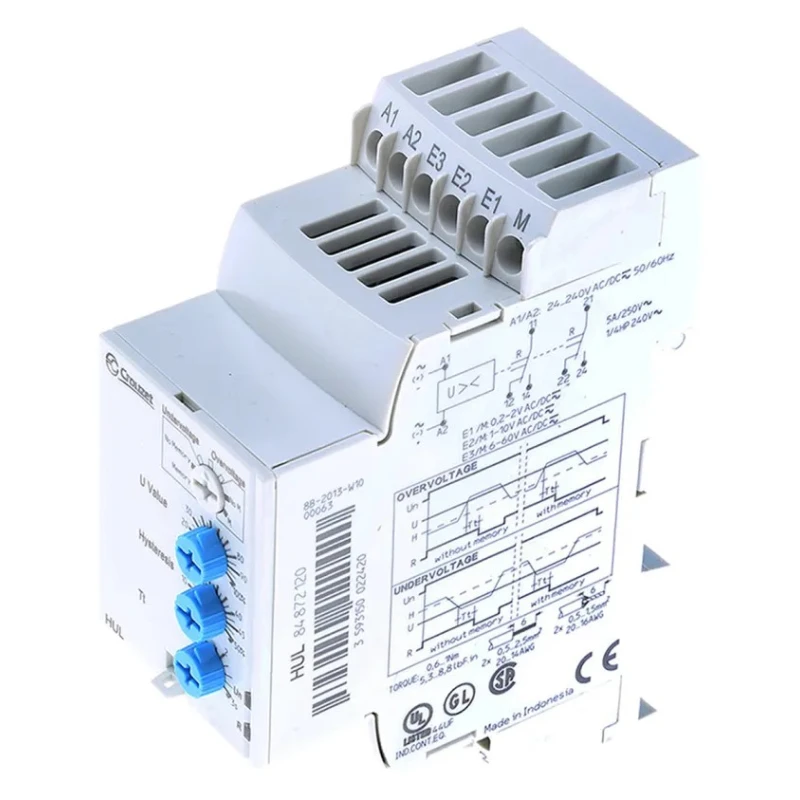

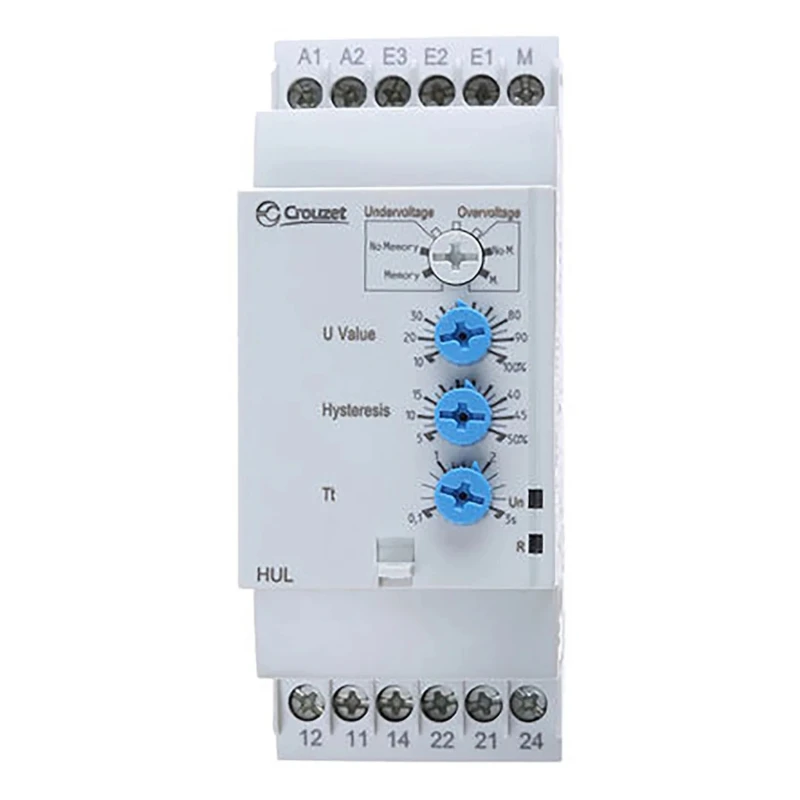

Crouzet Monitoring Relay 0.2/600 V Monitor Range DPDT DIN Rail Mount, 24V AC, 240V AC/DC 84872120
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Crouzet |
| Height | 92.6mm |
| Function | Undervoltage Monitoring |
| Length | 69mm |
| Model | 84872120 |
| IP Rating | IP20, IP30 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | HUL |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +50°C |
| Terminal type | Terminal Block |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 24, 240V ac |
| Monitoring Voltage Range | 0.2/600 V |
Key Features
- Supports switching voltages up to 250V AC to safely monitor electrical systems.
- Dual voltage supply capability with 24V AC and 240V AC/DC inputs.
- Robust DPDT contact configuration for versatile control applications.
- Compact DIN rail mountable design measuring 92.6mm height and 69mm length.
- Wide operating temperature range from 50°C minimum to 50°C maximum ensuring reliability.
- Terminal block connections for secure and convenient wiring.
- Rated for contact current of 5A for medium load switching.
- IP20 and IP30 rated for protection against solid objects in industrial environments.
Product Description
Crouzet 84872120 Monitoring Relay is designed for precise undervoltage monitoring across a broad range of 0.2 to 600 V. This monitoring relay supports both alternating and direct currents with automatic recognition.
The relay features a DPDT contact configuration and is intended for DIN rail mounting, facilitating easy installation in electrical panels. It supports switching voltages of up to 250 V AC and is powered using 24 V AC or 240 V AC/DC supply voltages, making it flexible for diverse industrial applications.
The compact dimensions (92.6 mm height, 69 mm length, and 35 mm width) ensure it fits efficiently in control cabinets. Its robust design is suitable for operating temperatures ranging from 50°C minimum to 50°C maximum, and terminal block type connections provide secure wiring.
Rated for a contact current of 5 A, this relay meets various standards including IEC/EN 61000-6-3, IEC/EN 50178, CSA, WEEE, CE, GL, UL, and RoHS, ensuring compliance and safety in operation.
Key features include true RMS voltage measurement, selectable memory function, and automatic AC/DC detection, which enhance monitoring accuracy and convenience. Supports switching voltages up to 250V AC to safely monitor electrical systems.
Dual voltage supply capability with 24V AC and 240V AC/DC inputs. Robust DPDT contact configuration for versatile control applications. Compact DIN rail mountable design measuring 92.6mm height and 69mm length. Wide operating temperature range from 50°C minimum to 50°C maximum ensuring reliability.
Terminal block connections for secure and convenient wiring. Rated for contact current of 5A for medium load switching. IP20 and IP30 rated for protection against solid objects in industrial environments. True RMS measurement supports accurate alternating and direct voltage monitoring.
Includes selectable memory function and automatic AC/DC recognition for ease of use. This monitoring relay is ideal for use in industrial automation, electrical control systems, and HVAC equipment where voltage monitoring and protection are critical.
Explore the comprehensive range of Monitoring Relays from trusted brands like Crouzet on EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring voltage range of this model is from 0.2 to 600 V.
This unit has a height of 92.6 mm, a length of 69 mm, and a width of 35 mm.
It supports a maximum switching voltage of 250 V AC.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
It can be powered using either 24 V AC or 240 V AC/DC supply voltages.
The rated contact current is 5 A, suitable for medium load switching.
The operating temperature range is from a minimum of 50°C to a maximum of 50°C.
This model is designed for DIN rail mounting, facilitating easy installation in electrical panels.
It uses terminal block connections for secure and convenient wiring.
It is rated IP20 and IP30, providing protection against solid objects in industrial environments.
It supports true RMS voltage measurement, a selectable memory function, and automatic AC/DC detection for enhanced monitoring accuracy.
This relay is suitable for industrial automation, electrical control systems, and HVAC equipment where voltage monitoring and protection are critical.
